4.4. Electrical installation
Depending on your version of the projector, different versions of the electrical connection are provided. The projector heads
of the PHOS 25 and PHOS 45 have a power cable with a 4-pin plug for direct connection to the driver. PHOS 65 and PHOS 85
each have an 8-pin plug that is connected to a driver unit. Both the driver units are connected to your power supply by
means of a waterproof inline connector, as described below.
WARNING! Danger of electric shock!
An electric shock can cause serious injury or death.
▶ Only allow a qualified electrician to carry out electrical connec�ons.
ATTENTION! Possible damage
Only establish the connec�on between the projector and the driver when the power is off. Otherwise the
LED could be damaged or destroyed.

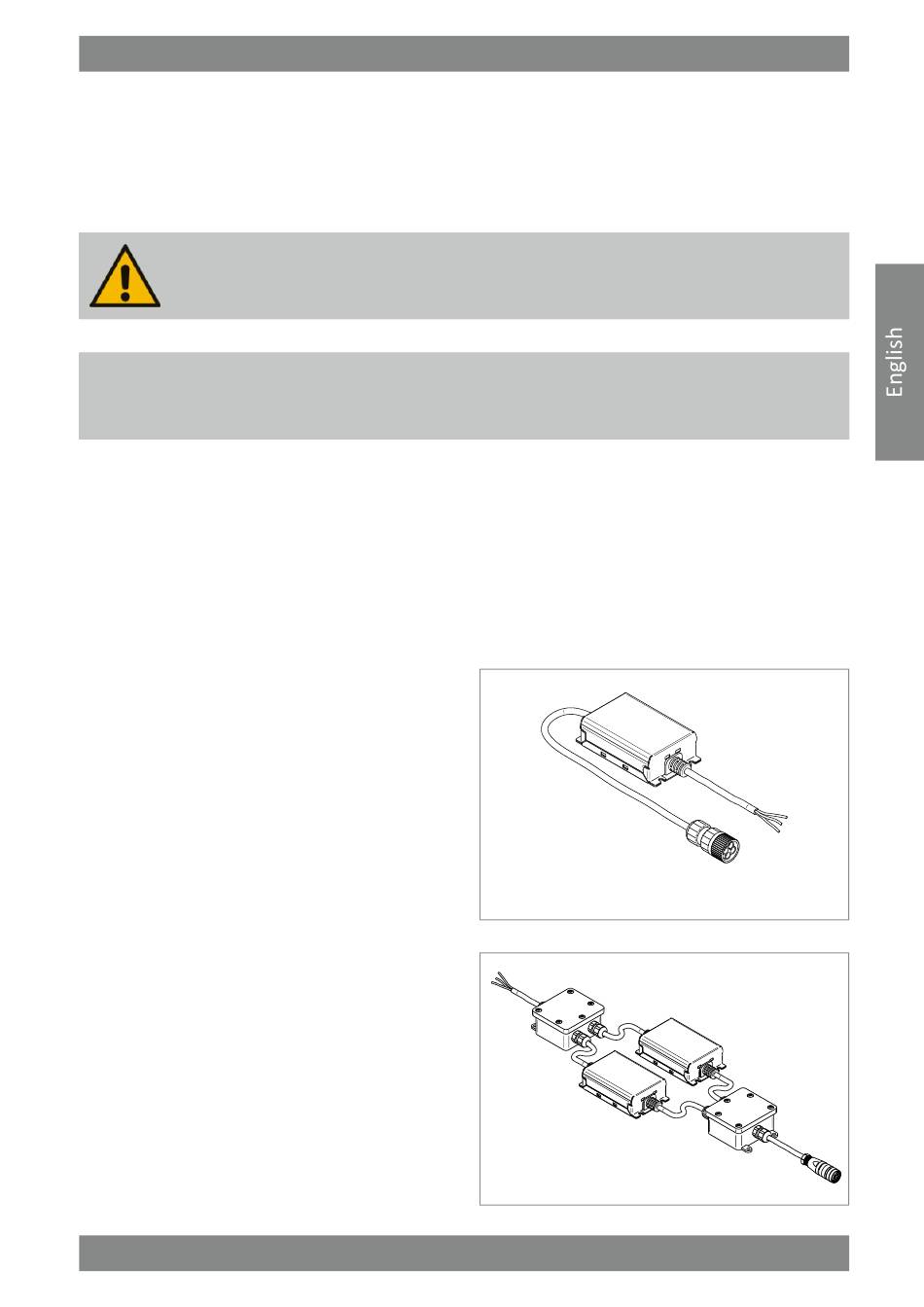

Driver for PHOS 25 and PHOS 45 with 4-pin socket.
Driver for PHOS 65 and PHOS 85 with 8-pin socket.
PHOS pole mount
Installa�on
35 / 76
