APPLICATION
4
3
2
1

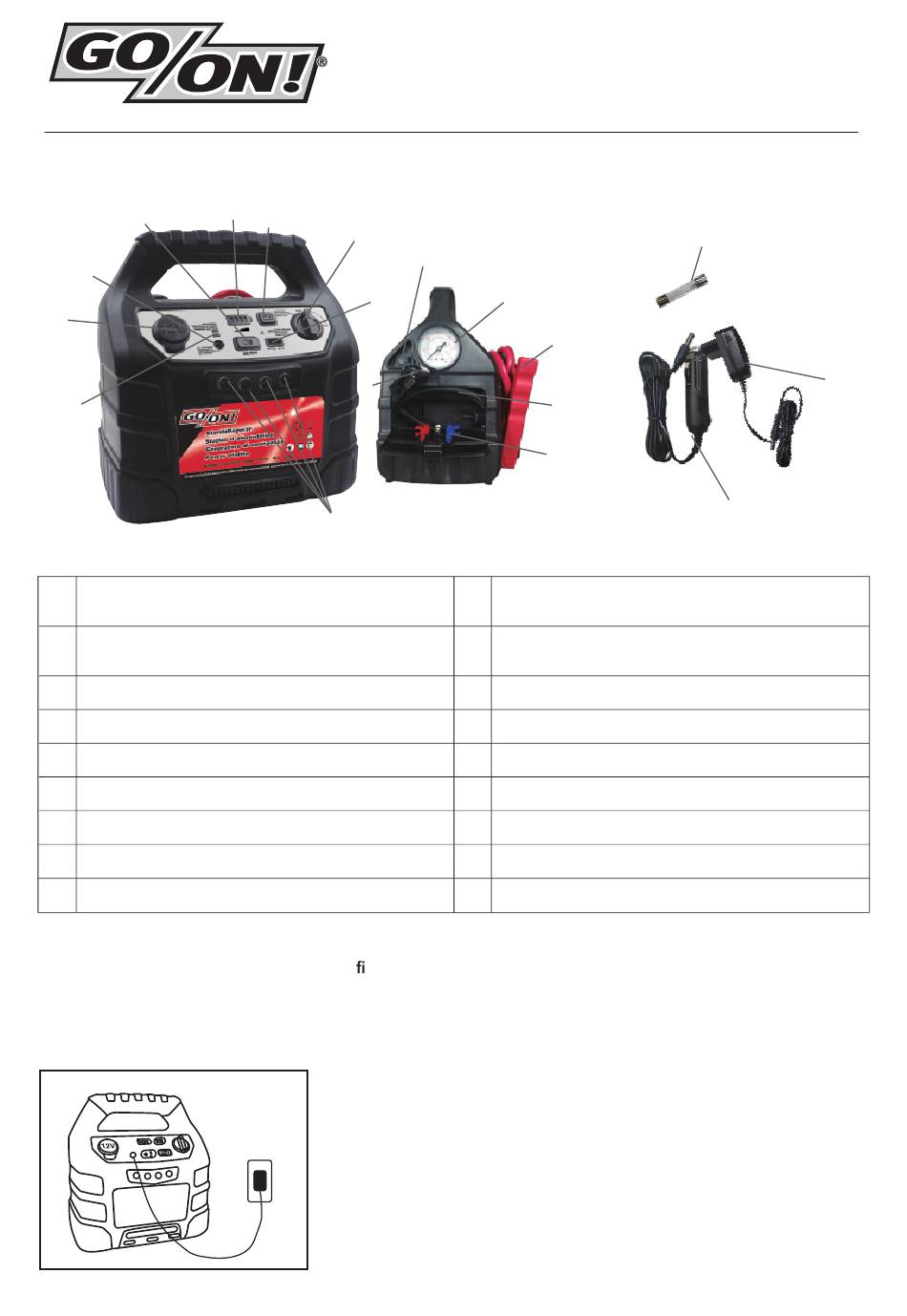

Charing indicator (Red: charging / Yellow: charging
1
finished)
12V (cigarette) DC output with overload
2
protection
3
DC charging adaptor input
4
Light switch
5
Battery status indicator
6
Battery condition indicator
7
Power switch
8
2.4A USB output with overload protection
9
Light

RECHARGING PROCEDURES

1. CHARGING FROM 230 VOLT AC OUTLET ( g.1)
a. With the power switch in the OFF position. plug the AC outlet. Then insert the plug at the end of the adapter into the front of the
Power Station unit.
b. Charging LED (Red) will illuminate indicating the charging process has started.
c. When charging is complete, light will change from red to yellow.
5
6
7
8
10
9
(Fig.1)
11
12
13
14
15
10
Connection of compressor hose
11
Compressor switch
12
Compressor indicator
13
Clamps (red : positive / black : negative)
14
Compressor hose
15
Nozzles
16
2A spare fuse for DC adaptor
17
AC adaptor
18
DC adaptor
