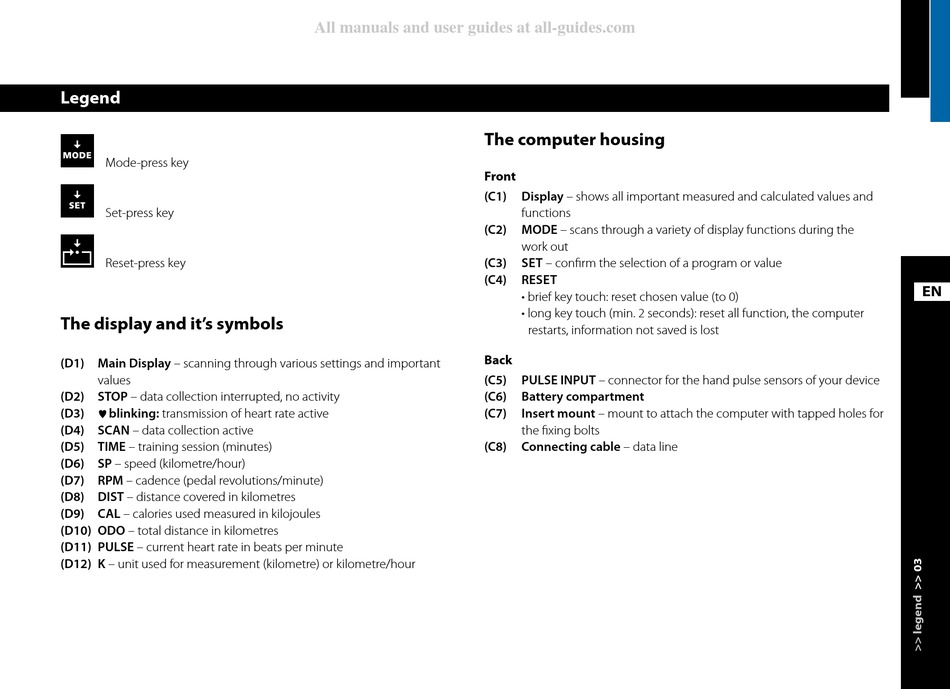

Legend

Mode-press key
Set-press key
Reset-press key

The display and it's symbols

(D1) Main Display – scanning through various settings and important
values
(D2) STOP – data collection interrupted, no activity
(D3) blinking: transmission of heart rate active

(D4) SCAN – data collection active
(D5) TIME – training session (minutes)
(D6) SP – speed (kilometre/hour)
(D7) RPM – cadence (pedal revolutions/minute)
(D8) DIST – distance covered in kilometres
(D9) CAL – calories used measured in kilojoules
(D10) ODO – total distance in kilometres
(D11) PULSE – current heart rate in beats per minute
(D12) K – unit used for measurement (kilometre) or kilometre/hour
All manuals and user guides at all-guides.com

The computer housing

Front
(C1)
(C2)
(C3)
(C4)
Back
(C5)
(C6)
(C7)
(C8)
Display – shows all important measured and calculated values and
functions
MODE – scans through a variety of display functions during the
work out
SET – confirm the selection of a program or value
RESET
• brief key touch: reset chosen value (to 0)
• long key touch (min. 2 seconds): reset all function, the computer
restarts, information not saved is lost
PULSE INPUT – connector for the hand pulse sensors of your device
Battery compartment
Insert mount – mount to attach the computer with tapped holes for
the fixing bolts
Connecting cable – data line
