RERX06 I
14,5mm
37/64"
9,5mm
3/8"
9,5mm
3/8"
1/2" GAS (EU)
1/2" NPT (USA)
30mm
1" 3/16
Funzionamento miscelatore - Mixer working - Fonctionnement mitigeur - Arbeitsweise von Mischer

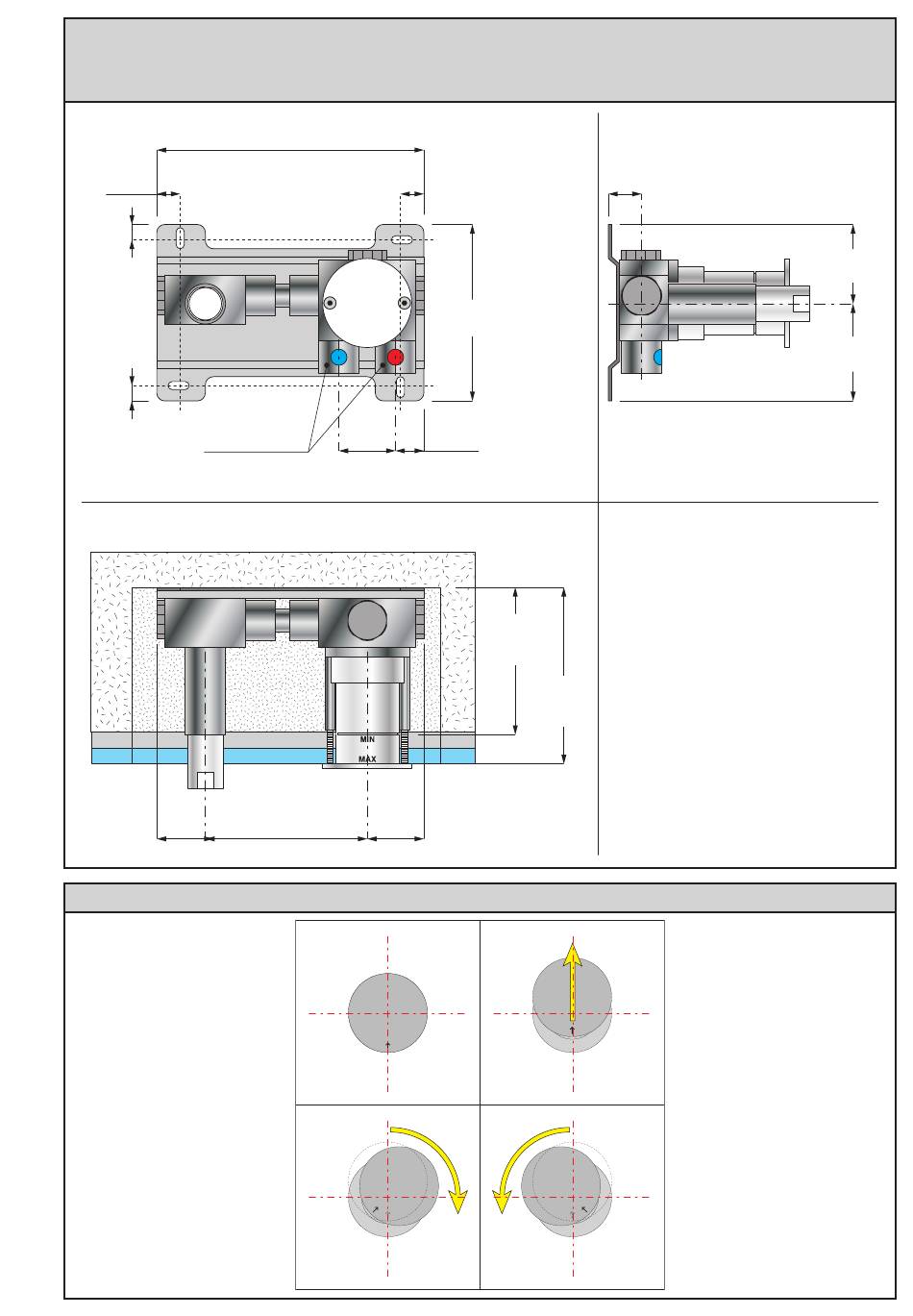

Dimensioni d'ingombro e quote di fissaggio
Overall dimensions and fixing points
Dimensions d'encombrement et fixations
Maßen und Befestigungshöhe
165mm
6" 1/2
14,5mm
37/64"
35mm
17mm
1" 3/8
43/64"
35mm
100mm
1" 3/8
3" 15/16
CLOSED
COLD
20,5mm
13/16"
109mm
4" 19/64
MIN.
91mm
3" 37/64
MAX.
109mm
4" 19/64
OPEN
HOT
-3-
49mm
1" 59/64
60mm
2" 23/64
