7. Mounting / connection
The device is determined for installation in an UP box and may not be exposed directly to any heat or
cold sources. Furthermore, care must be taken to ensure that the device is not exposed to the influence
of foreign heat or cold sources that warm or cool the device at its back (through air flows in cavity walls or
the temperatures radiated by ascending pipelines, f. ex.). The device is to be mounted on the wallpaper

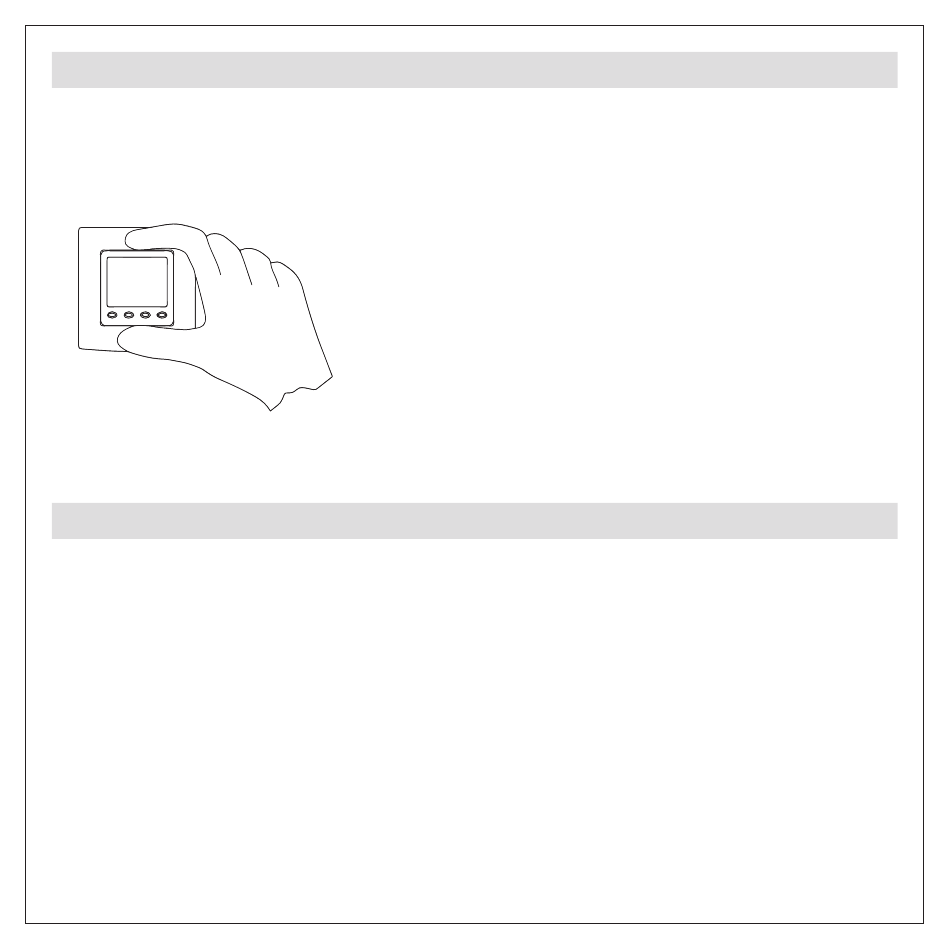

or wall covering, respectively.The device equipped with the 50x50mm housing cover can be integrated
drawing opposite by holding the housing cover at the top and bottom and pulling it open.
8. First start-up and commissioning
When starting the device up for the first time, the experts menu items 6.1, "Language", 6.2, "Controller
type", 6.3, "External sensor" and 6.4, "Importance relation between internal and external sensor", inclu-
ding 5.7.7, "Assigning and de-assigning function", are being called up all automatically to configure the
controller for the first time as needed.
into almost all currently available flush switch installation frame
systems when using DIN 49075 compliant intermediate frames
The device equipped with the 55x55mm housing is, likewise,
suited for use with different frame systems. If using multiple fra-
mes, the device needs always to be mounted in the lowest
position.
Caution: Prior to performing any installation works always
make sure to disconnect the mains voltage at all poles!
The electrical connection is to be realised as shown in the
connection diagram in section 9. herein. The pluggable screw
terminals can comfortably be pre-wired for this purpose and
connected to the device while installing it into the under plaster
box. The opening of the device is realised as described in the
