OPERATING INSTRUCTIONS

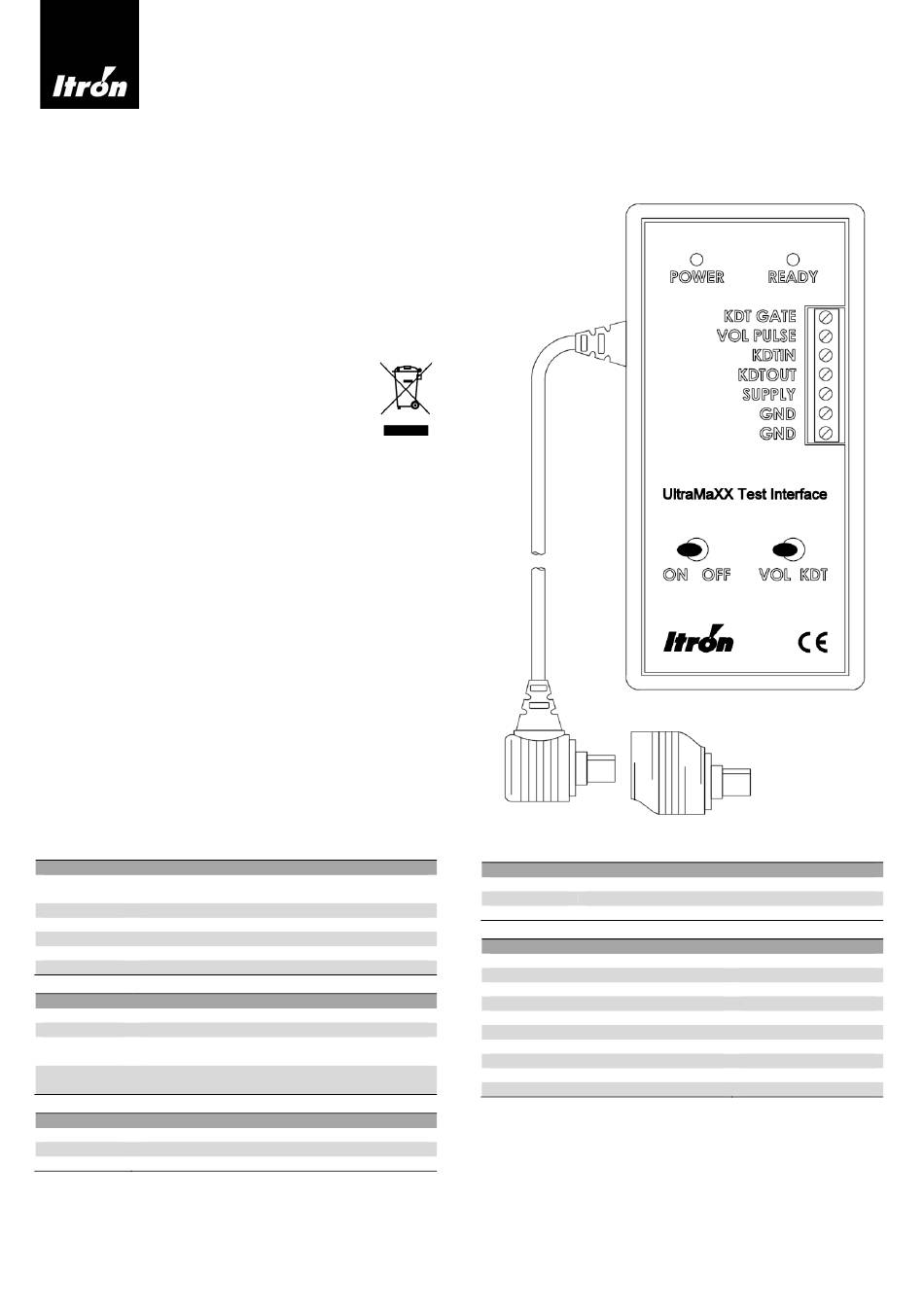

UltraMaXX Test Interface

SCOPE OF DELIVERY

•
Test interface
•
Wear-out adapter
•
Operating instructions including declaration of
conformity

WASTE DISPOSAL

Discarded electronic devices such as this
interface shall not be disposed with domestic
waste. Dispose in accordance with local
regulations only.

GENERAL DESCRIPTION

The UltraMaXX test interface enables laboratories to
utilize the calculator and flow meter testing possibilities
of the UltraMaXX family of heat and water meters. It
serves as an electrically isolated connection between
the meter and a pulse counting test device.
The interface consists of a housing holding the
electronics and an optional battery as well as a cable
and a plug. The plug fits in the recommended wear-out
adapter (item code 14940, delivered with the interface)
or directly in the test jack of the meter. Screw terminals
are available to connect the external test device.
A mode switch on the interface allows selecting one of
the two test modes, KdT mode and volume pulse mode.
Those modes enable the test device to trigger and
receive KdT pulses respectively to receive high
resolution volume pulses. Communication between test
device and meter is not covered by the interface but the
interface itself communicates with the meter to assure
proper test mode operation of early firmware versions.
Screw terminals
GND Ground connection to test bench and/or negative
pole of external power supply
SUPPLY External supply voltage
KDTIN Trigger input for KdT measurement
KDTOUT Open collector KdT pulse output
KDT_GATE Open collector gate output
VOL_PULSE Open collector volume pulse output
Controls
ON OFF Switch powering the interface on or off
POWER LED indicating power-on-state
VOL KDT Mode switch selecting either volume pulse mode or
KdT mode
READY LED indicating the ready-to-be-tested-state of a
connected meter
Storage conditions (in original packaging)
Temperature 0 °C to 50 °C
Rel. humidity 30 % to 95 % without condensation
Bar. pressure 900 mbar to 1050 mbar
Operating conditions
Temperature 10 °C to 50 °C
Rel. humidity 30 % to 95 % without condensation
Bar. pressure 900 mbar to 1050 mbar
Other technical data
External supply voltage
Isolation level
Internal battery
Terminal cross section
Terminal torque
Plug / wear-out adapter connection cycles
KdT pulse output frequency
KdT trigger input frequency
Volume pulse duration
Open collector currents
* Due to the limited number of connection cycles the use of the wear-
out adapter (spare part item code 14940) is highly recommended to
extend the life time of the UltraMaXX test interface.
5
7 V to 24 V DC
500 V DC
9 V block type (6LR61)
Max 1,5 mm²
0,5 Nm to 0,6 Nm
~ 100 *
~ 45 kHz
Max 1 Hz
Min 3,8 ms
5 mA to 20 mA
