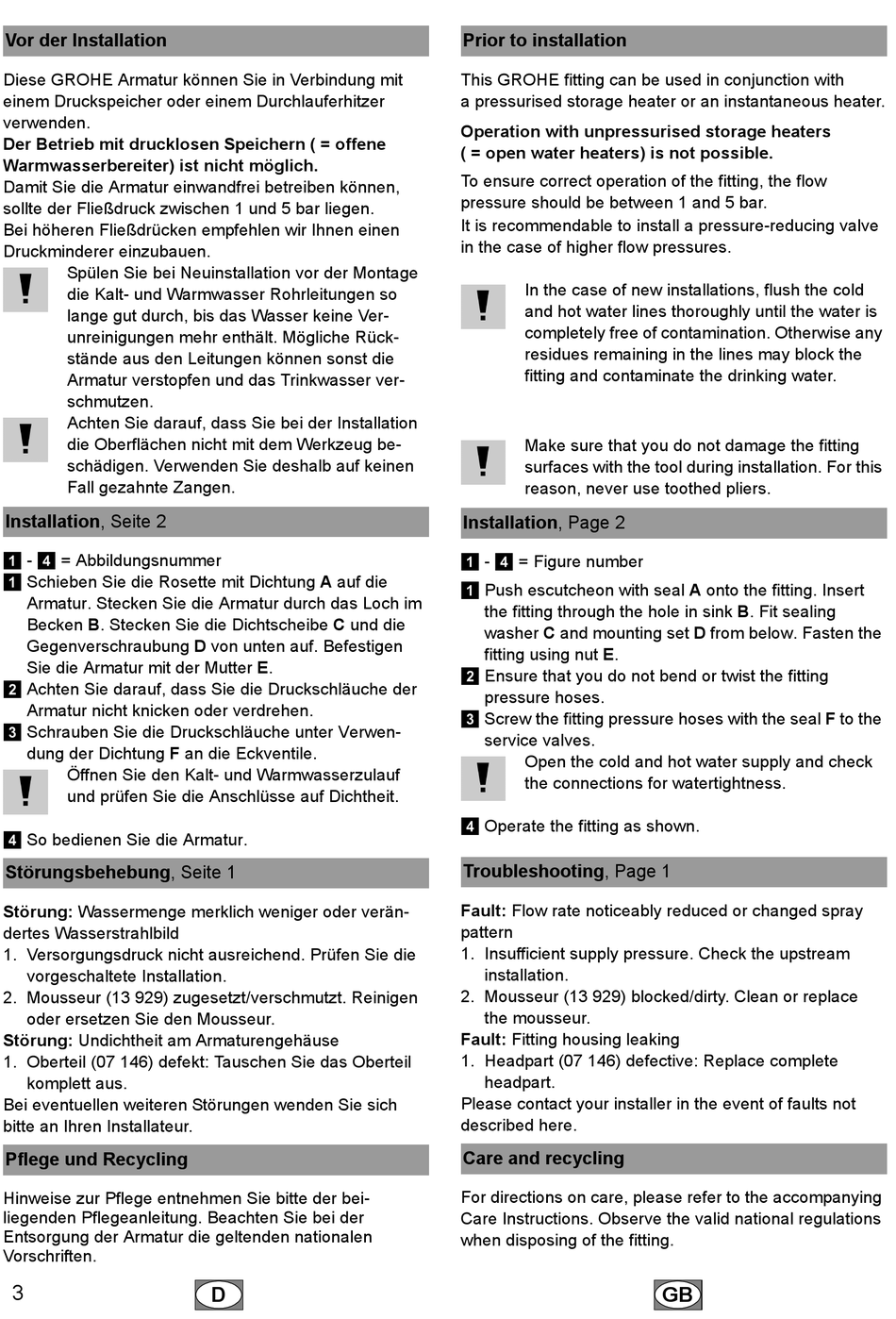

Vor der Installation
Diese GROHE Armatur können Sie in Verbindung mit
einem Druckspeicher oder einem Durchlauferhitzer
verwenden.
Der Betrieb mit drucklosen Speichern ( = offene
Warmwasserbereiter) ist nicht möglich.
Damit Sie die Armatur einwandfrei betreiben können,
sollte der Fließdruck zwischen 1 und 5 bar liegen.
Bei höheren Fließdrücken empfehlen wir Ihnen einen
Druckminderer einzubauen.
Spülen Sie bei Neuinstallation vor der Montage
die Kalt- und Warmwasser Rohrleitungen so
lange gut durch, bis das Wasser keine Ver-
unreinigungen mehr enthält. Mögliche Rück-
stände aus den Leitungen können sonst die
Armatur verstopfen und das Trinkwasser ver-
schmutzen.
Achten Sie darauf, dass Sie bei der Installation
die Oberflächen nicht mit dem Werkzeug be-
schädigen. Verwenden Sie deshalb auf keinen
Fall gezahnte Zangen.
Installation, Seite 2
-
= Abbildungsnummer
1
4
Schieben Sie die Rosette mit Dichtung A auf die
1
Armatur. Stecken Sie die Armatur durch das Loch im
Becken B. Stecken Sie die Dichtscheibe C und die
Gegenverschraubung D von unten auf. Befestigen
Sie die Armatur mit der Mutter E.
Achten Sie darauf, dass Sie die Druckschläuche der
2
Armatur nicht knicken oder verdrehen.
Schrauben Sie die Druckschläuche unter Verwen-
3
dung der Dichtung F an die Eckventile.
Öffnen Sie den Kalt- und Warmwasserzulauf
und prüfen Sie die Anschlüsse auf Dichtheit.
So bedienen Sie die Armatur.
4
Störungsbehebung, Seite 1
Störung: Wassermenge merklich weniger oder verän-
dertes Wasserstrahlbild
1. Versorgungsdruck nicht ausreichend. Prüfen Sie die
vorgeschaltete Installation.
2. Mousseur (13 929) zugesetzt/verschmutzt. Reinigen
oder ersetzen Sie den Mousseur.
Störung: Undichtheit am Armaturengehäuse
1. Oberteil (07 146) defekt: Tauschen Sie das Oberteil
komplett aus.
Bei eventuellen weiteren Störungen wenden Sie sich
bitte an Ihren Installateur.
Pflege und Recycling
Hinweise zur Pflege entnehmen Sie bitte der bei-
liegenden Pflegeanleitung. Beachten Sie bei der
Entsorgung der Armatur die geltenden nationalen
Vorschriften.
3
D
Prior to installation
This GROHE fitting can be used in conjunction with
a pressurised storage heater or an instantaneous heater.
Operation with unpressurised storage heaters
( = open water heaters) is not possible.
To ensure correct operation of the fitting, the flow
pressure should be between 1 and 5 bar.
It is recommendable to install a pressure-reducing valve
in the case of higher flow pressures.
In the case of new installations, flush the cold
and hot water lines thoroughly until the water is
completely free of contamination. Otherwise any
residues remaining in the lines may block the
fitting and contaminate the drinking water.
Make sure that you do not damage the fitting
surfaces with the tool during installation. For this
reason, never use toothed pliers.
Installation, Page 2
-
= Figure number
1
4
Push escutcheon with seal A onto the fitting. Insert
1
the fitting through the hole in sink B. Fit sealing
washer C and mounting set D from below. Fasten the
fitting using nut E.
Ensure that you do not bend or twist the fitting
2
pressure hoses.
Screw the fitting pressure hoses with the seal F to the
3
service valves.
Open the cold and hot water supply and check
the connections for watertightness.
Operate the fitting as shown.
4
Troubleshooting, Page 1
Fault: Flow rate noticeably reduced or changed spray
pattern
1. Insufficient supply pressure. Check the upstream
installation.
2. Mousseur (13 929) blocked/dirty. Clean or replace
the mousseur.
Fault: Fitting housing leaking
1. Headpart (07 146) defective: Replace complete
headpart.
Please contact your installer in the event of faults not
described here.
Care and recycling
For directions on care, please refer to the accompanying
Care Instructions. Observe the valid national regulations
when disposing of the fitting.
GB
