Assembly
A
> 20 mm
min. 250 mm
A B
12 mm 57 mm
28 mm 41 mm
38 mm 31 mm

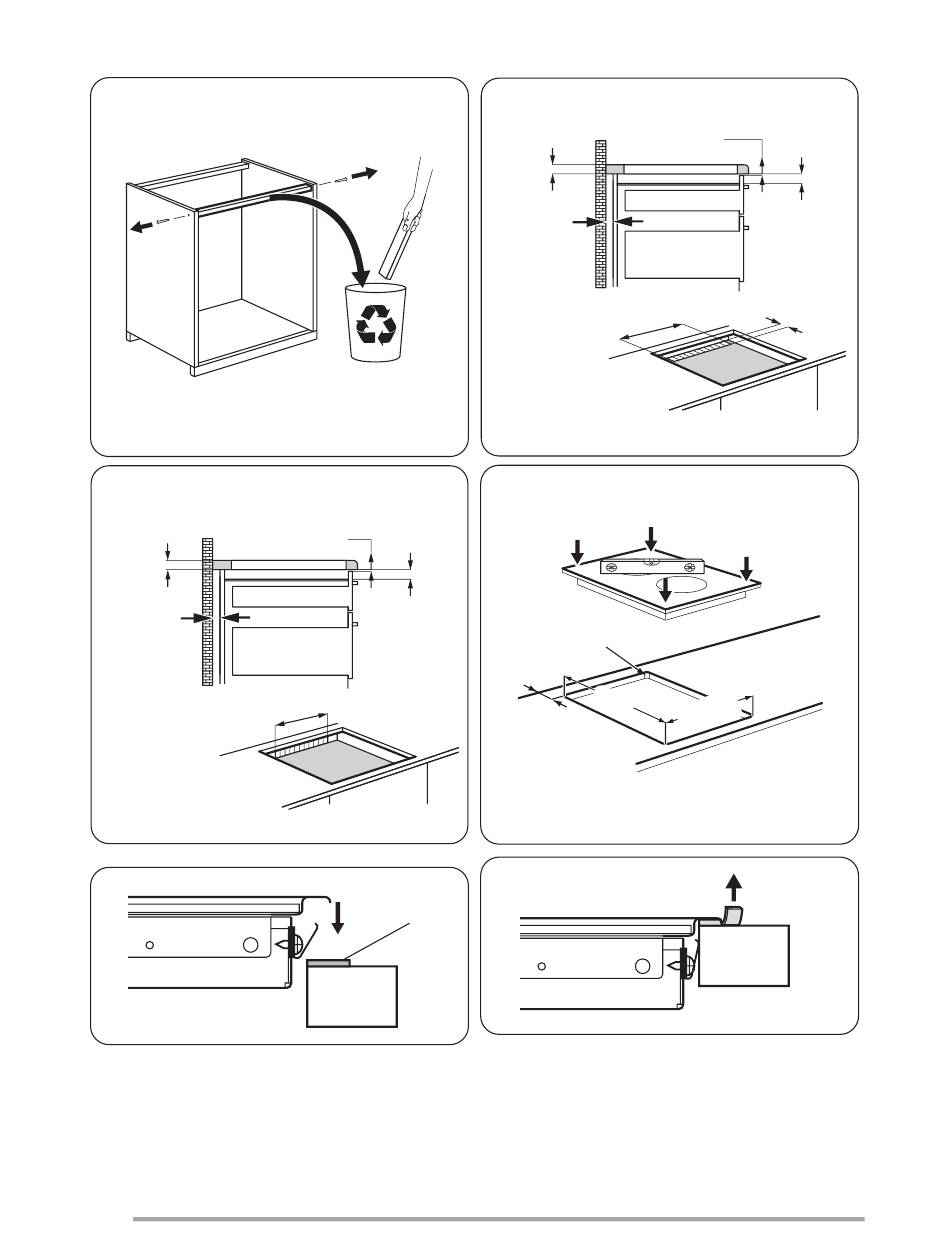

Place the sealing gasket A all around the edge of the
cut out.
10
All manuals and user guides at all-guides.com
min. 2 mm
B
A
min. 2 mm
A
< 20 mm
min. 250 mm
A B
12 mm 57 mm
28 mm 41 mm
38 mm 31 mm
R 5mm
0
490 mm
+1
270
55 mm
Fit the hob in the cut out and push it down until
comes in contact with the kitchen top surface. then
remove the excess sealing.
B
min
30 mm
0
mm
+1
