4 PanelView Plus/VersaView CE Terminals and Display Modules

Overview

This document provides instructions on how to install the following devices in a
panel or enclosure.
• factory assembled PanelView Plus or VersaView CE terminal
• PanelView Plus or VersaView CE Display Module
Refer to the installation instructions shipped with the Logic Module and
Communication Module for field installation of these components.

For More Information

To obtain electronic versions of the PanelView Plus or VersaView CE User Manual,
visit the following web sites:
• www.theautomationbookstore.com
• www.ab.com/manuals

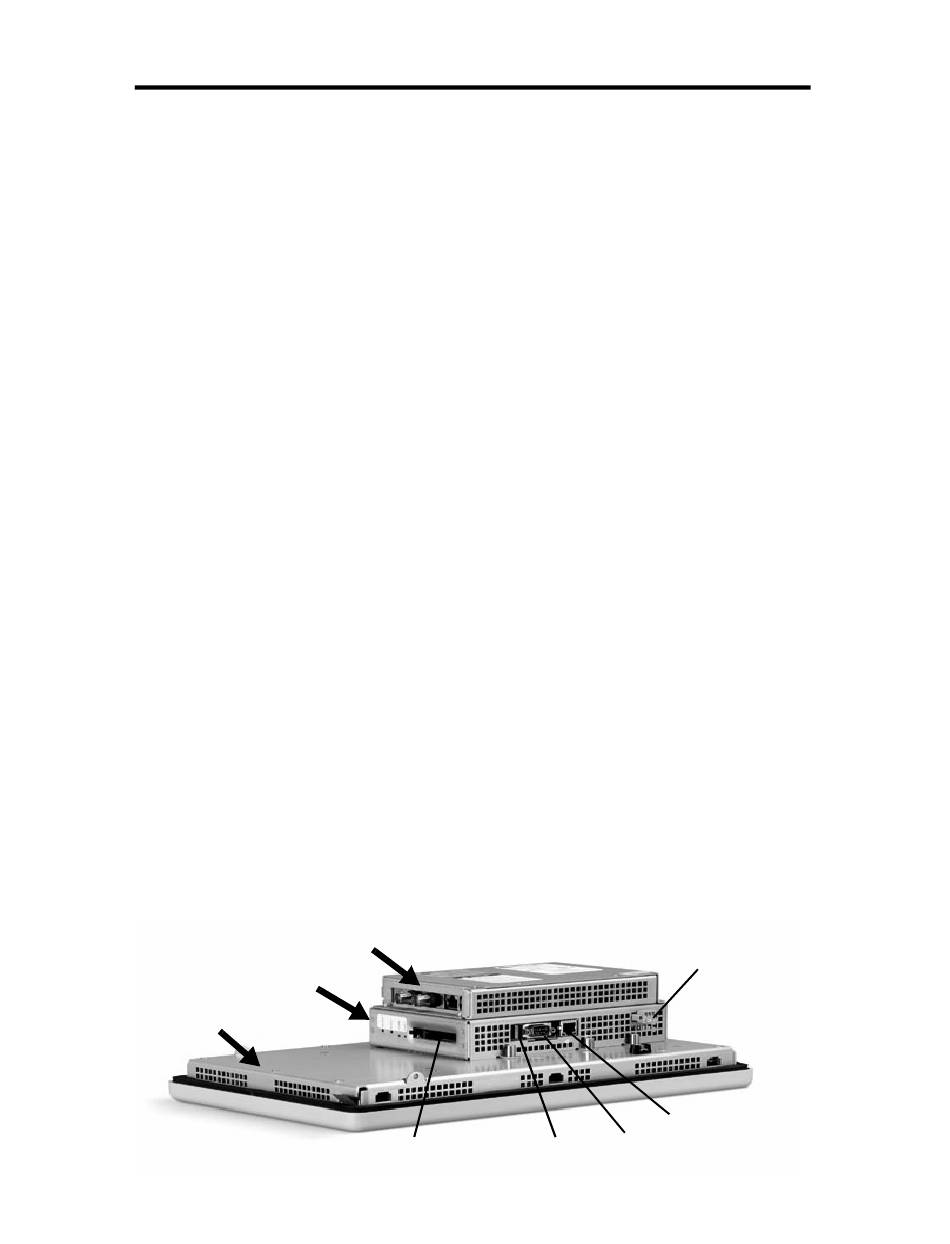

Modular Components

The PanelView Plus and VersaView CE terminals have the following modular
components:
• Display Module (700/700H, 1000/1000H, 1250/1250H, 1500/1500H)
• Logic Module (DC Power, CF Card Slot, Ethernet Port, Serial Port, USB Ports)
• Internal Compact Flash card with firmware or operating system, RAM
Memory (SO-DIMM)
• Communication Module (for specific communication protocols)
These items can be ordered as separate components for field installation or factory
assembled per your configuration. The base configured unit includes the Display
Module and the Logic Module (with Internal Compact Flash and RAM).
Communication Module
Logic Module
Display Module
Compact Flash Card Slot
Publication 2711P-IN001B-MU-P
All manuals and user guides at all-guides.com
DC Power Input
Ethernet Port
Serial Port
USB Ports
