INSTALLATION MANUAL
GALEOR
Illuminated RF Keypad

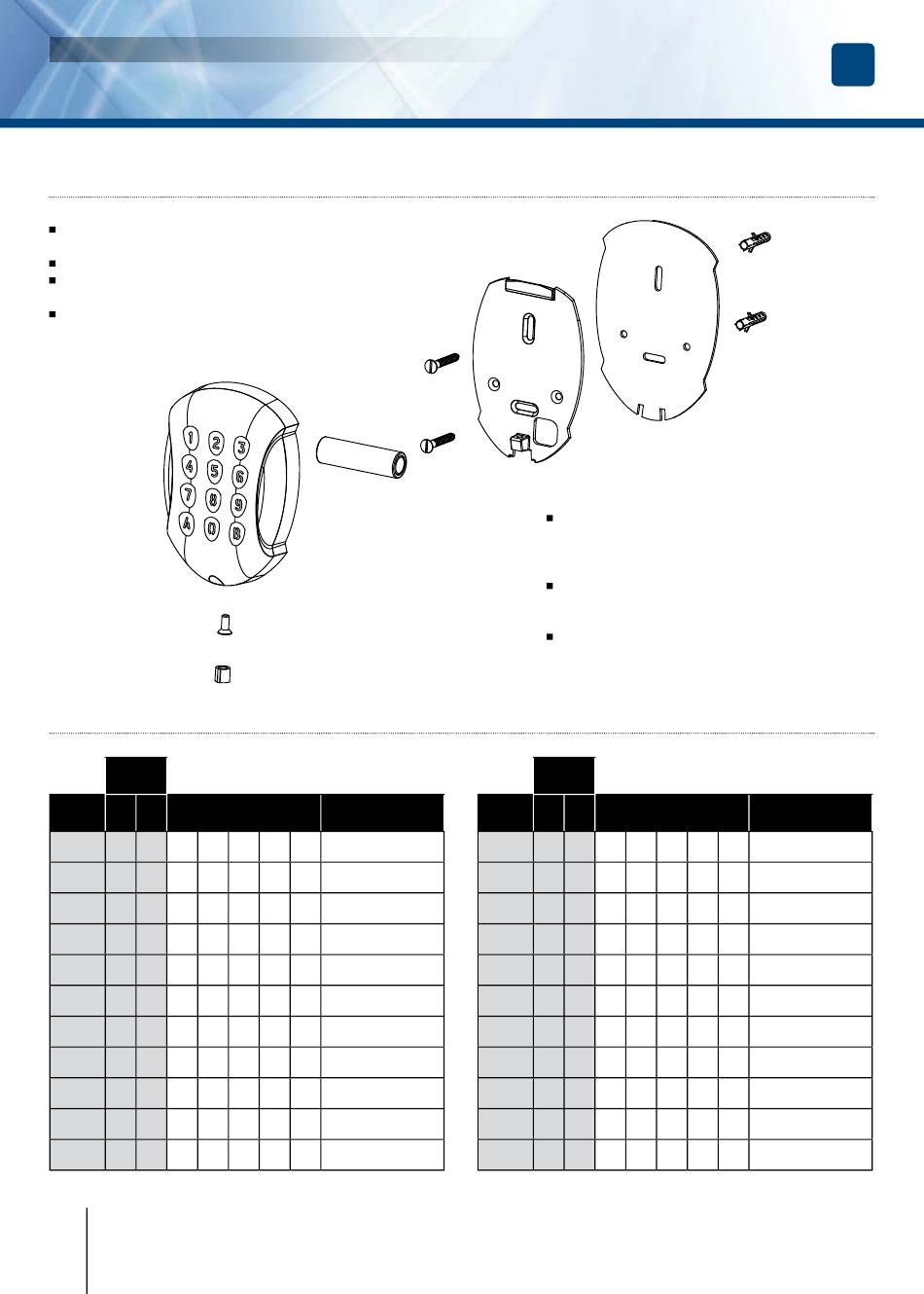

5] MOUNTING
Drill the 2 mounting holes (drill bit Ø 5 mm
and 35 MM hole depth) and the hole wiring access.
Insert the 2 plastic anchors in the holes.
Stick the foam to sealed The GALEOR on the back side
of the base (Important).
Place the back plate of the GALEOR and screw
on the wall using the supplied (M4x30)
mounting screws.
6] USER CODES TABLE
Channel
User A B
01
02
03
04
05
06
07
08
09
10
11
10
cdvigroup.com
All manuals and user guides at all-guides.com
Code Name
Remove the plastic protection of the battery
and then mount the keypad on the back
plate, placing fi rst the top in the hooks
and then the bottom.
Fasten the GALEOR keypad to the back plate
by using the supplied (M4x10) Torx
and T20 Torx
®
Place the screw cap at the bottom
of the keypad.
Channel
User A B Code
12
13
14
15
16
17
18
19
20
21
22
EN
screw
®
spanner hardware.
Name
