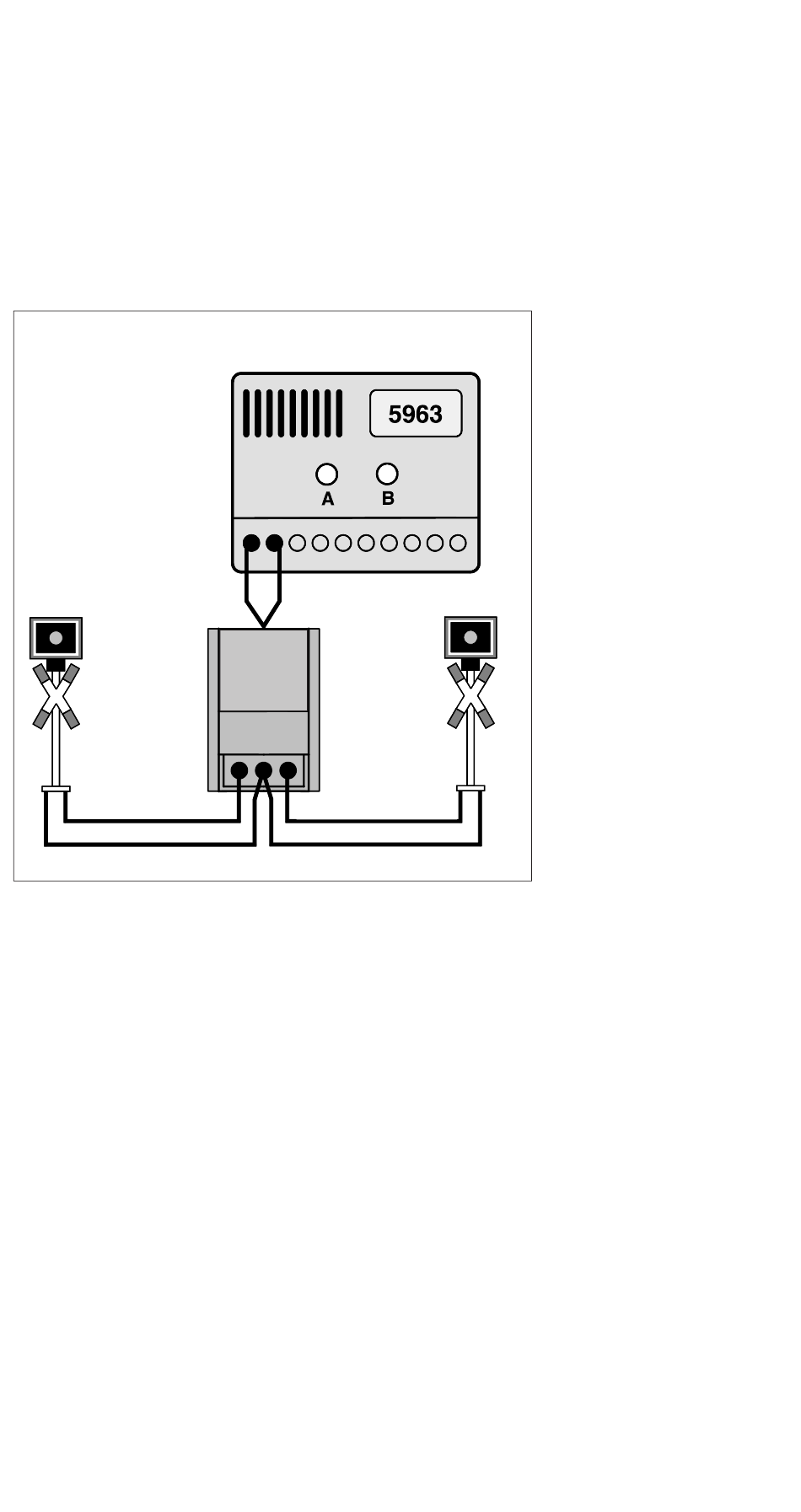

Refer to pic. 6 for proper installation of
blinkers and timer (Busch # 5963).
An IR-unit consists of a transmitter emit-
ting infra-red rays of light and a receiver.
Both tansmitter and receiver should be
placed on either side of tracks at equal dis-
tance. If desired both items may be cam-
pic. 6
red
grey
Busch Modellspielwaren
Heidelberger Straße 26
D-68519 Viernheim
Germany
www.busch-model.com
IR-unit with timer (also refer
to timer instructions)
brown
yellow
LED
switch
ouflaged by use of irish moss or other ma-
terials to keep out of sight.
Convenience is gained by the latter method
since no mechanical parts such as relays
are involved which enables continuous and
maintenance-free function.
