Safety advices:
1. Provide sufficient air ventilation while
working with glues -caution- glue may
be hazardous to health!
2. All electronic parts contained in this kit
must be connected to low tensions only
(max. 16 volts).
3. LEDs require low tension (2,3 volts)
and should never be connected directly
to power unit! Allways use electronic
switch which provides required circuit.
4. Soldering irons develop high tempera-
tures - keep away from other material
and use heat-resistant desk cover while
working with iron. Be careful not to
over-heat parts and pieces of kit!
5. Kit contains small pieces which may be
swallowed - keep out of reach of chil-
dren!

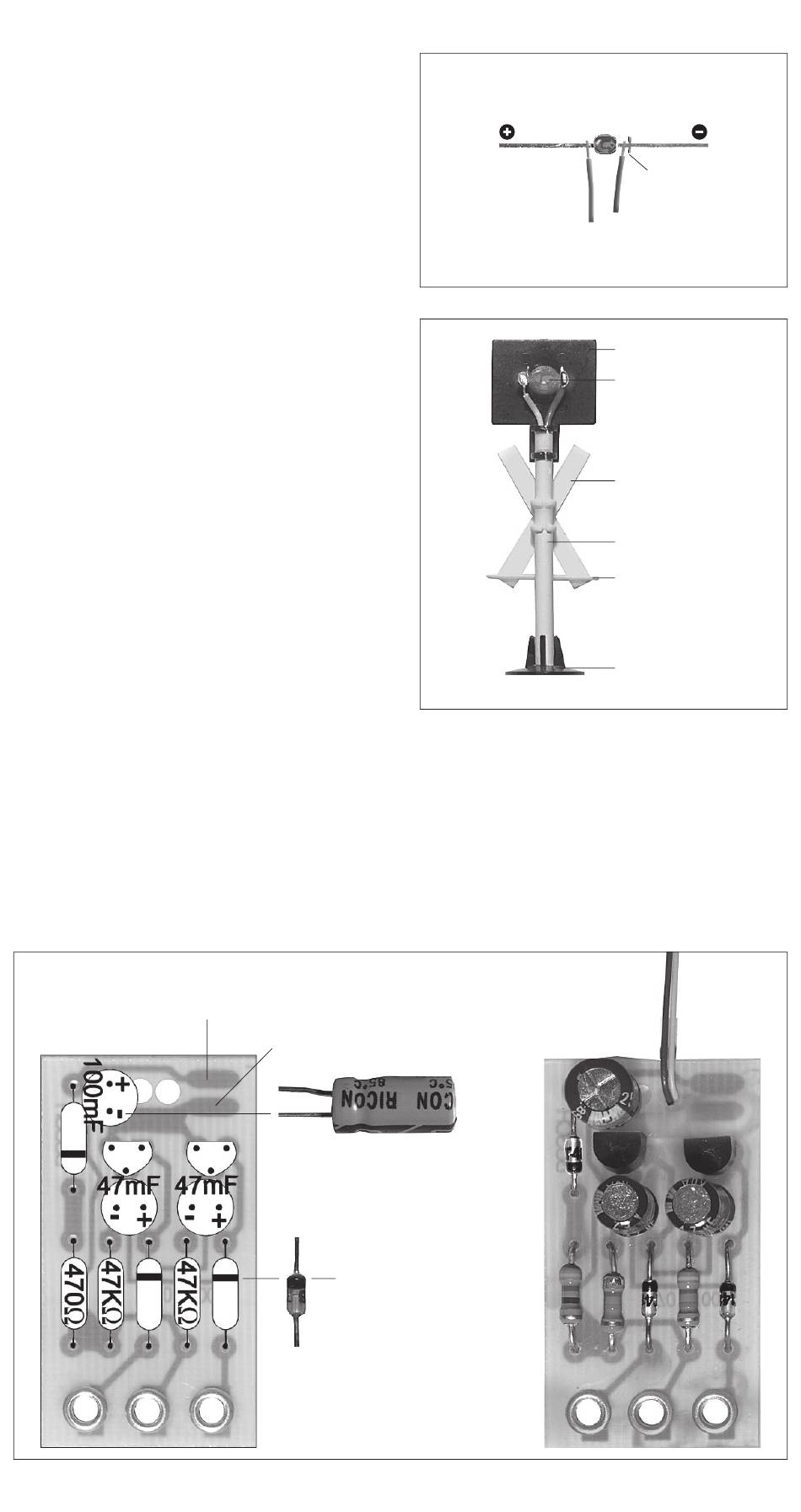

Soldering of LEDs
All LEDs have negative and positive wir-
ing. Negative wire is marked accordingly
(see pic. 2) and shall be connected to red
cable whereas the grey cable shall be con-
nected to opposite (positive) wire.
Fix LEDs with a piece of scotch tape while
soldering bare ends of cables to LED within
a short distance from LED-bulb. Cut away
remaining wires.
pic. 4
cable, yellow
cable, brown
regard elko polarity (+) / (-)
regard marking
on diodes
grey red
pic. 2
pic. 3
Assembly of crossing blinkers
Paint brass poles with a thin layer of white
enamel and let dry thoroughly for 24 hours.
Mount cross (4), base (7) and top (3) to
pole. Arrow printed on cross should face
downwards.
LEDs
marking
top (3)
LEDs (2)
crosses (4)
pole (5)
bow (6)
base (7)
