A s s e m b l y i n s t r u c t i o n s
CROSSING BLINKERS H0 5491
This kit enables the construction of two
crossing blinkers and one control unit.

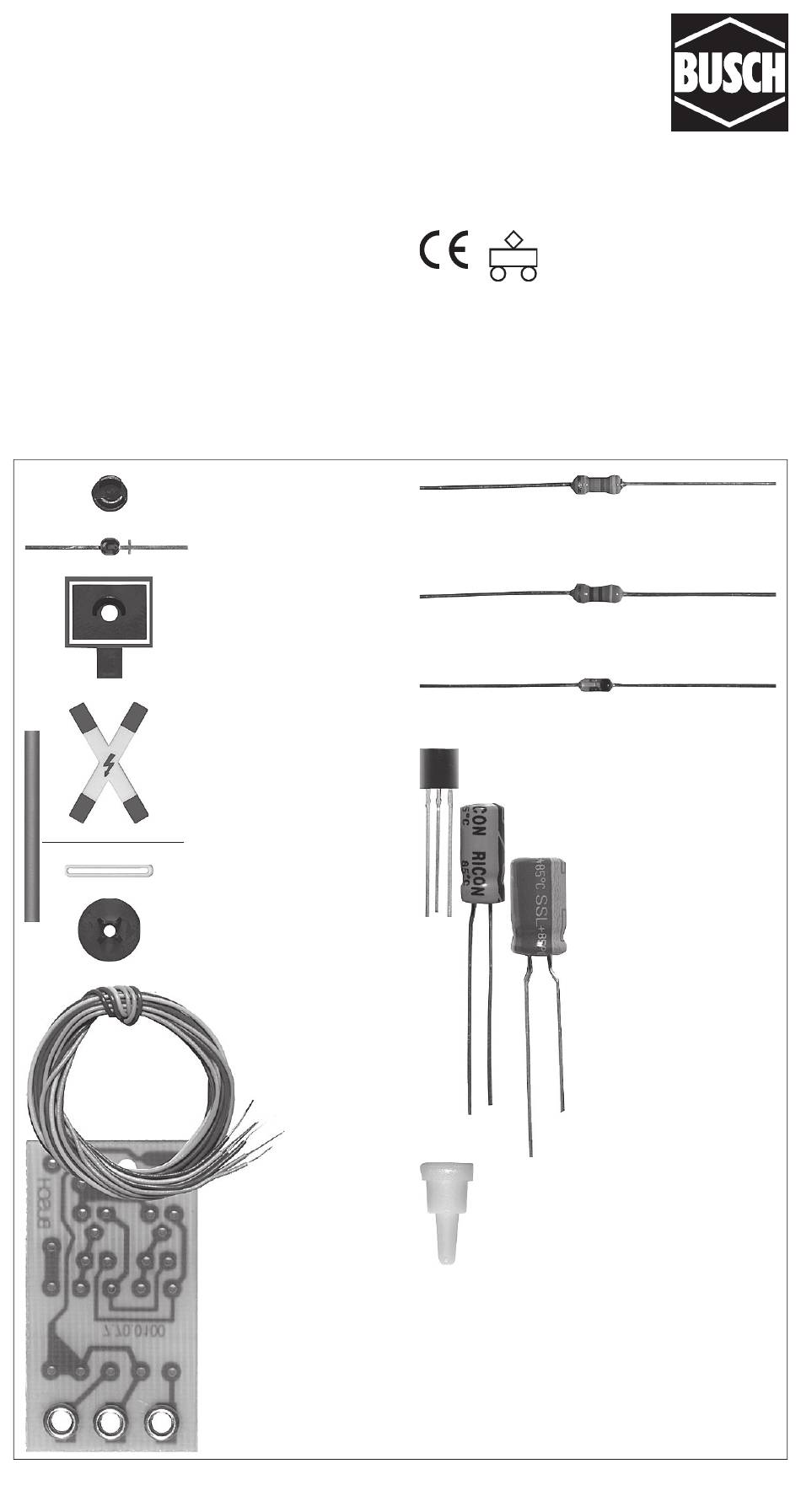

Pic. 1 indicates parts list of items enclosed.
Assembly requires the following tools:
nippers, tweezers, soldering iron with nar-
row top, a fine rope of soldering ore, in-
stant glue (Busch 7597) and white enamel
paint.
(1) cover, 2 ea.
(2) LEDs, red, 2 ea.
(3) top, 2 ea.
(4) crosses, 2 ea.
(5) brass pole, 2 ea.
(6) bow, 2 ea.
(7) base, 2 ea.
(8) cable wiring,
6 ea.
yellow, 1 ea.
brown, 1 ea.
grey, 2 ea.
red, 2 ea.
(9) base
Never insert directlty into sockets! Only operate
with transformer which gives the required voltage
(14 - 16 V) and is in compliance with EN 60 742.
Not siutable for children under 8 years of age.
Please retain these instructions.
(10) resistors 47 KΩ, 2 ea.
color code: yellow-purple-amber-gold
(11) resistors 470 Ω, 2 ea.
color code: yellow-purple-brown-gold
(12) diodes, 3 ea.
(16) plug, yellow, 3ea.
2.10.5491 Y07.01
RR01071601.P65
14 - 16 V ~ / =
20 mA
(13) transisors, 2 ea.
(14) Elko 47 mF, 2 ea.
(15) Elko 100 mF, 1 ea.
pic. 1
