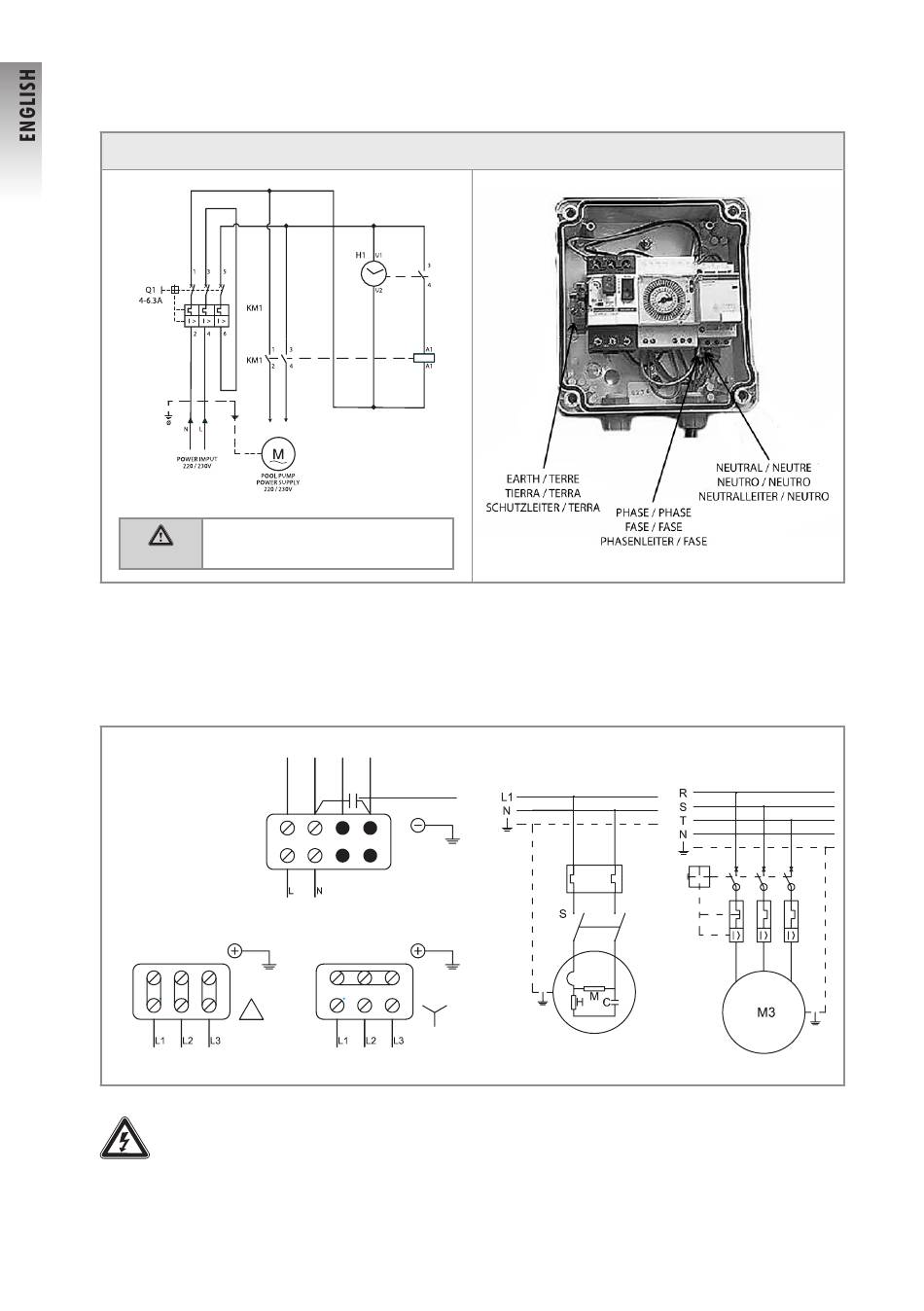

2.4.1. WITH DISTRIBUTION BOARD INSIDE THE HOUSING
For safety, place terminal strips of a suitable size on the ends of the cables to be connected.
TIMER, layout of the distribution board WITH/WITHOUT TRANSFORMER
CONNNECT INLET GROUND WIRE
TO MOTOR PUMP
WARNING!
2.4.2. WITHOUT DISTRIBUTION BOARD
The following diagram shows the terminal board (junction box) of the pump, which may be SINGLE-PHASE OR
THREE-PHASE.
SINGLE-PHASE MOTORS
THREE-PHASE MOTORS
This unit MUST BE PROPERLY WIRED. This must be carried out by a specialist in compliance with the
regulations in force on electrical safety in the country of installation.
8
SINGLE-PHASE
Condensor
COMPACT FILTRATION HOUSING -
THREE-PHASE
INSTRUCTION AND MAINTENANCE MANUAL
