4010 Cooling Fan Bracket
Before installing the cooling fan, please make sure that your motherboard is properly
installed into a PC case.

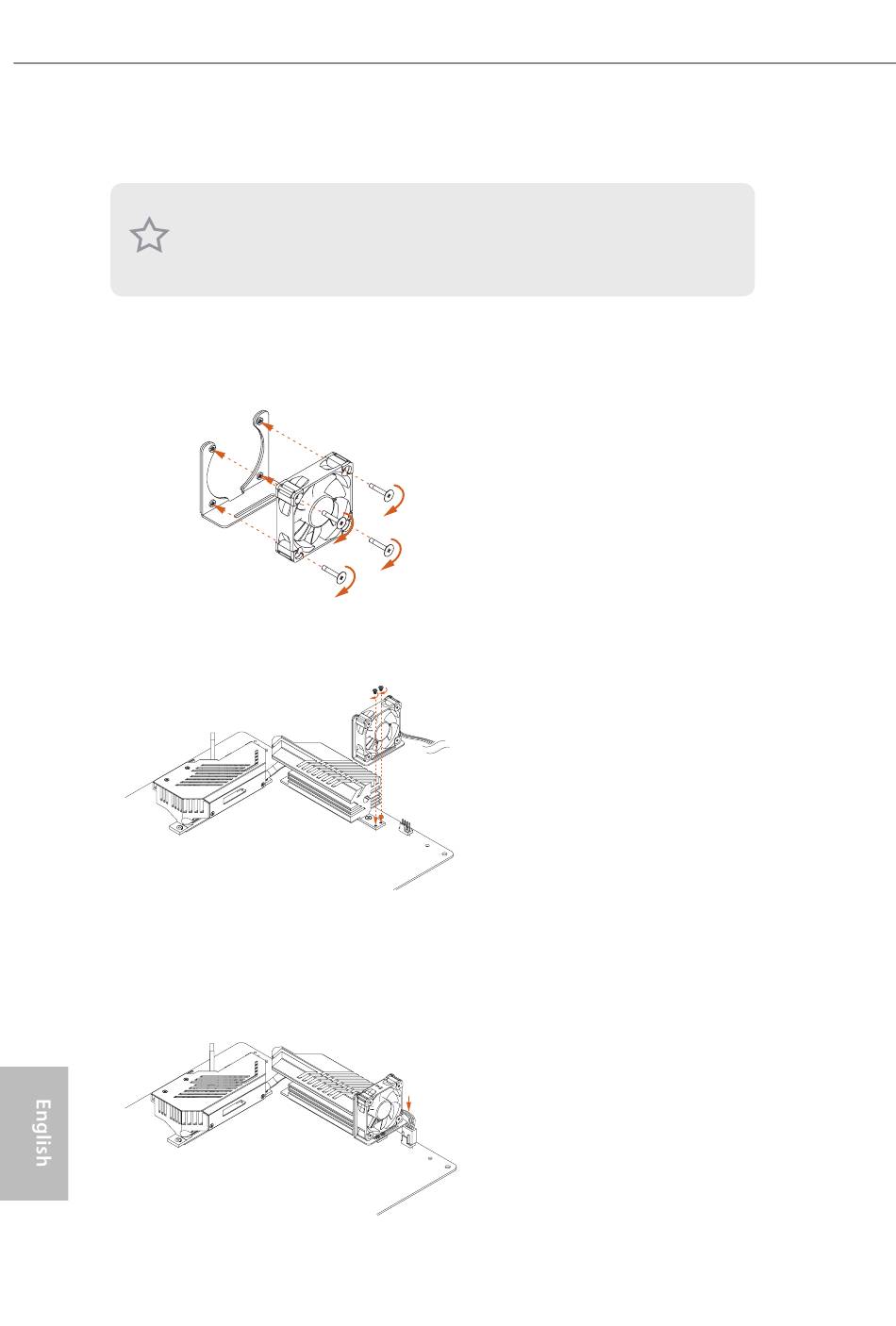

Installing the 4010 Cooling Fan Bracket
8
Step 1
Attach your 4010 fan to the bracket and
secure it with 4 screws.
*Please note that the 4010 fan does not
come with the package.
Step 2
Place the 4010 fan with bracket to your
motherboard with screw holes aligned.
Secure it with 2 screws.
*Please note that the bracket may possibly
protrude over the motherboard due to the
position of other components. The bracket
can also interfere with the CPU heatsink.
Please adjust the bracket into the proper
position before fastening the screws.
Step 3
Connect the fan cable to the VRM/Water
Pump Fan Connector (VRM_FAN1/WP).
