Quick installation guide IB-2280SSK
1. Features
• 8x 2.5" SATA or SAS HDD/SSD in only 2x 5.25" bay
• Anti-Vibration Technology
• HDD´s up to 15mm heights
• Aluminum and Stainless Steel
• Alarm for overheating and fan failure
• SATA I/II/III host interface 6.0 Gbit/s
• With key lock to secure the HDDs
• LED for power, HDD access, Fan Alarm
• Ø 7 cm fan (2400 / 3000 rpm)
• Hot Swap
• 2x SATA Power Connector 15pin
• 8x Data Signal Connector 7pin
2. Packing Content
1x IB-2280SSK, 2x keys, 24x screws, 1x Manual (SATA cables not included)

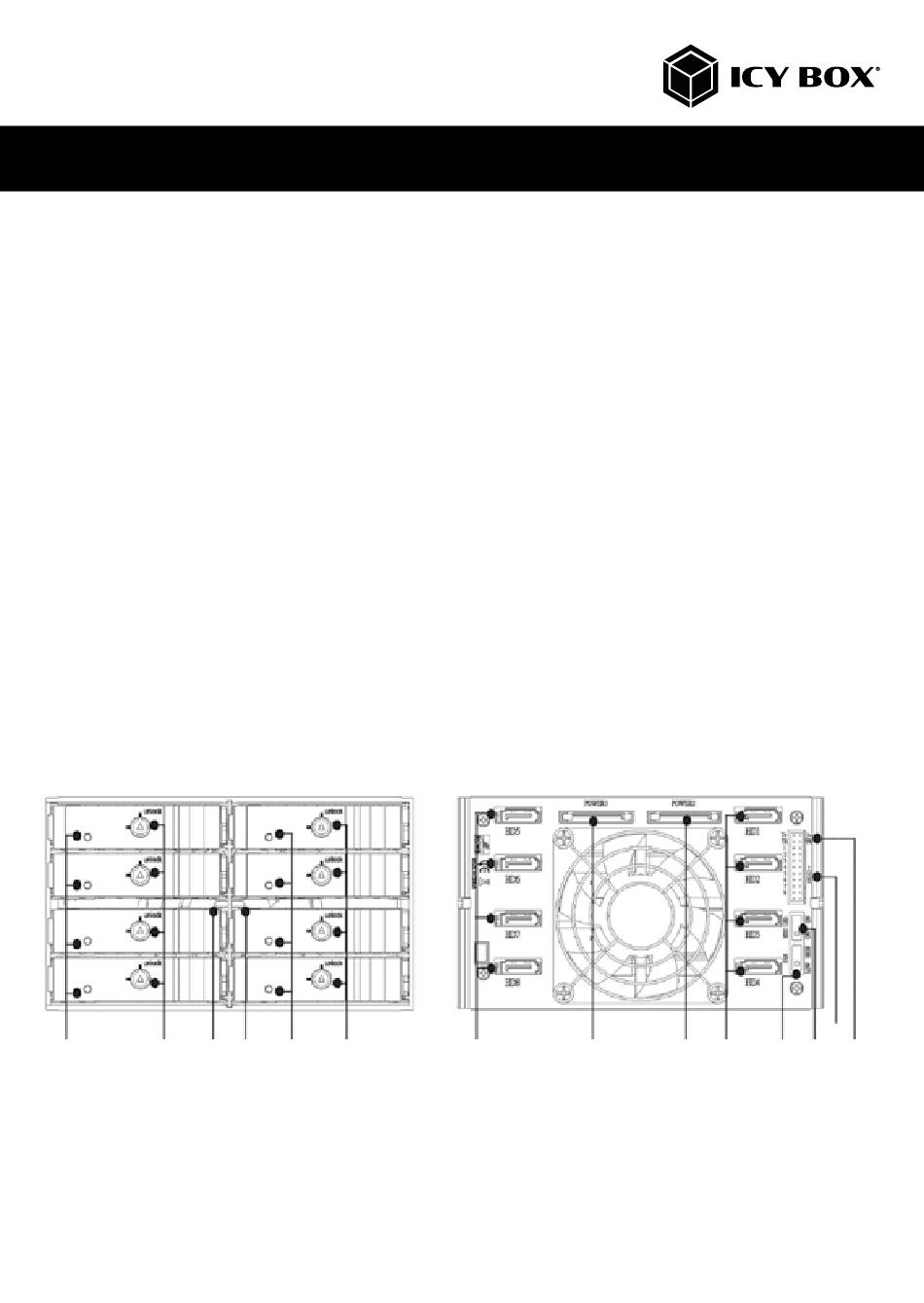

3. Product view
Front view
1.
2.
3.
1.
HDD power LED (blue) & HDD access LED
(Purple blinking)
2.
Triangle Safety lock
3.
Fan Status LED (red for failure)
4.
Temperature Status LED (red for failure)
4.
1.
2.
Rear view
1.
2.
1.
8x 7 Pin SATA data signal connector
2.
2x 15pin power connector
3.
FAN speed switch high (3000 rpm) / low (2400
rpm)
4.
HDD LED switch (on/off)
5.
External HDD access signal connector
6.
External temperature & FAN failure signal connector
5.
2.
1.
3.
4.
6.
