IMPORTANT:
Please block the radiator just with the screws of the two superior brackets. Leave the lower screws a little bit
loosened to permit panel expanding during the heating

3.2. Electrical connection

We suggest to turn to qualified professional installer.
The electrical connection has to be made complying with national rules about electrical products
Before carrying out any connection tasks whatsoever, make sure that the device is not connected to electrici-
ty supply at the mains and the general switch is the position "O" off.
- Supply voltage: 230V 50Hz
- Check that the power line is suitable to the power of the radiator
The power line has to be provided by a bipolar circuit breaker with distance of 3 mm between contacts,
including Fil-Pilote wire (used just for French market).
If Total Mirror is installed in a bathroom, the power grid has to be provided by a residual current device (30
mA)
In moist rooms it is very important that the electrical connection is a more than 25 cm from the floor.
Do not install the radiator if: Do not install the radiator if:
- Do not install the radiator if the mains cable is damaged
If the mains cable is damaged, the radiator has to be given back to the manufacturer or to an authorized
technician
- Do not install the radiator if the device or the controls are damaged

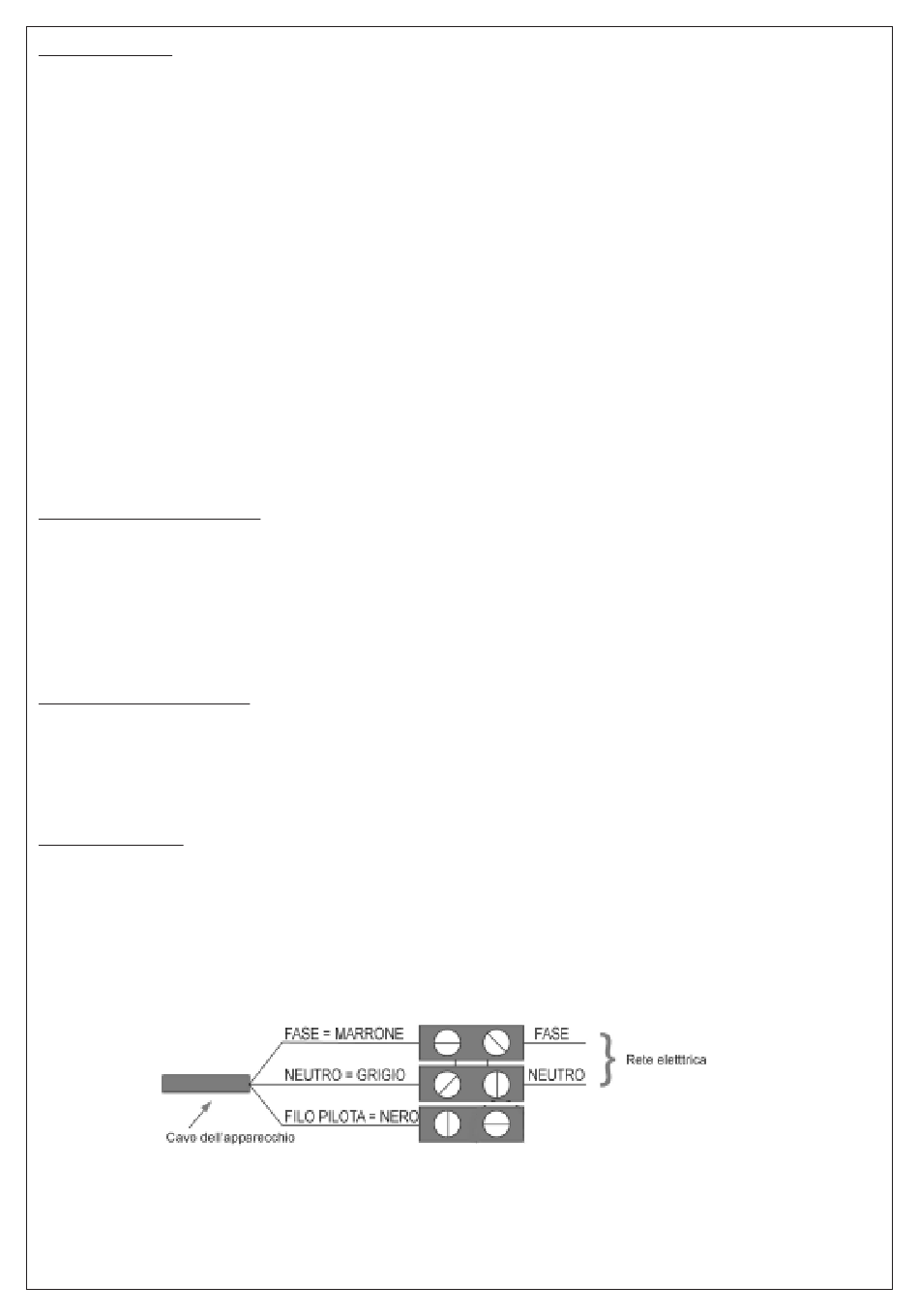

WIRING DIAGRAMM:

WIRING DIAGRAMM:
Severely follow this wiring diagramm (Fig. 5)
France: with Fil-Pilote wire
Other countries: just 2 wires
IMPORTANT:
If fil-pilote wire won't be connected to a programming device, it has to be insulated and it hasn't never to be
connected to a ground terminal
5
D
isponibile solo per il
mercato Francese
