dormakaba Mounting instructions
4.3
Mounting frame pivots
1.
Position the frame pivots on the hinge side of the
side panel.
2. Insert the glass protection rings into the pre-
drilled holes in the side panel.
3. Mount the counter-plates on the frame pivot
with the countersunk screws. When tightening
the screws, ensure that the frame pivots can still
move.

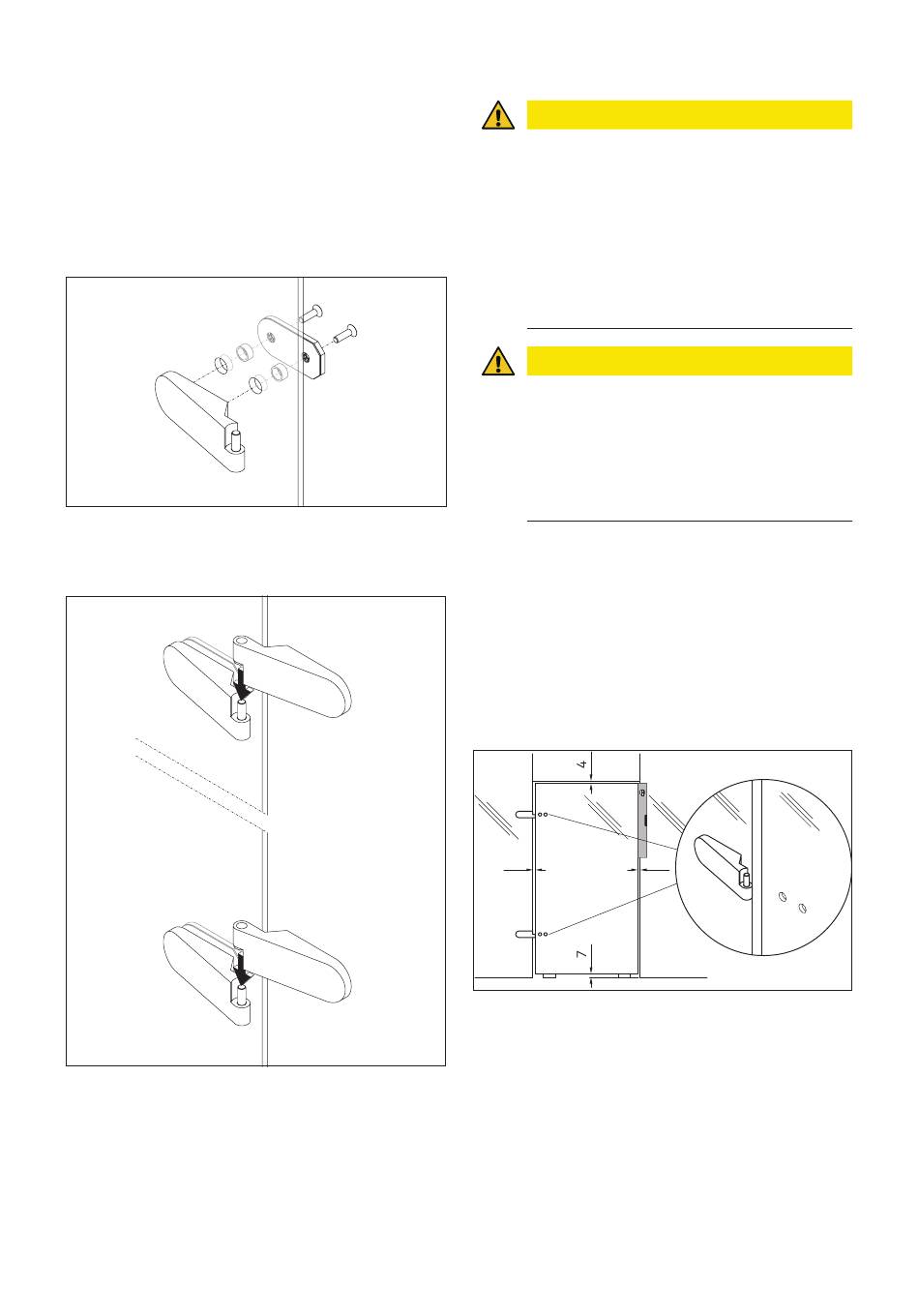

Abb. 12
Mount the frame pivot
4.4
Hanging panel sections
1.
Hang the two panel sections in the frame pivots.
Abb. 13
Hang the panel sections
STUDIO Rondo glass/glass
4.5
Special tools:
• Glass suction cup
1.
2. Place the glass door panel at the installation
3. Vertically align the glass door panel. Note the
Abb. 14
WN 059480 45532
Positioning the glass door panel
CAUTION
Risk of injury from broken glass during
mounting.
Incorrect handling during mounting can
cause the glass to break, resulting in injury.
• 2 persons required to carry out
installation.
• Use glass suction cups.
• Place the glass door panel on wooden
blocks and ensure that it cannot fall.
CAUTION
Risk of crushing during installation of the
glass door panel.
During mounting, there is a risk of crushing
injuries to the fingers by the glass edges.
• Wear protective gloves.
• Use glass suction cups.
2 persons required to carry out installation:
One person should stand on the hinge side, the
other person on the opposite side.
position on wooden blocks.
gaps. (Fig. 5).
3.5
3.5
Gaps
Mounting
2018-09
9
