dormakaba Mounting instructions
3
Product description
3.1
Product variants
The following product variants are available for the
different glass thicknesses:
• for DIN-L mounting, 8 mm glass (art. 10.244)
• for DIN-R mounting, 8 mm glass (art. 10.246)
• for DIN-L mounting, 10 mm glass (art. 10.245)
• for DIN-R mounting, 10 mm glass (art. 10.247)
3.2
Scope of delivery
Two hinges are included.
One hinge comprises:
4
3
2
1

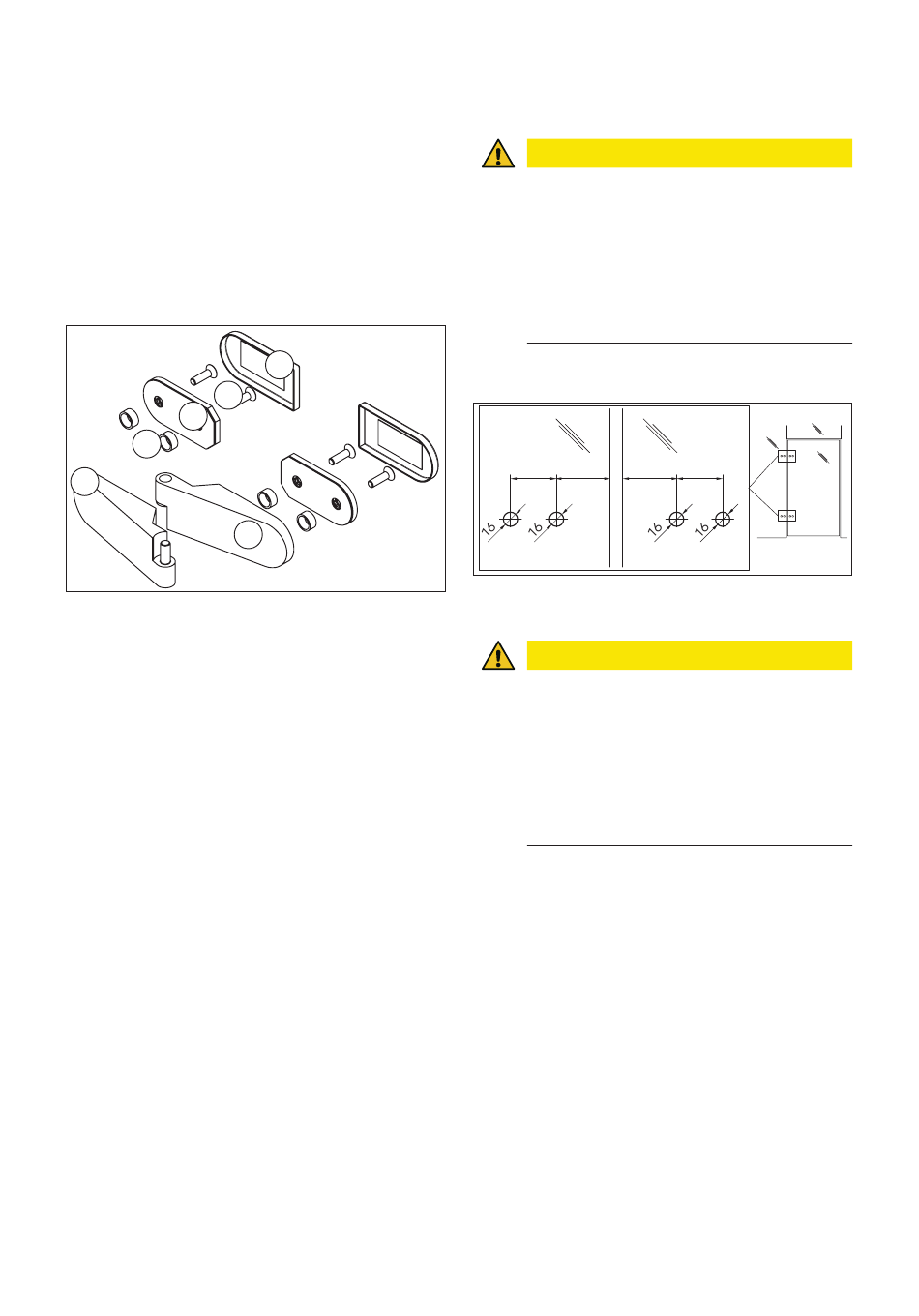

Abb. 10
Scope of delivery
1
1 x frame pivot
2
4 x glass protection ring
3
2 x counter-plate
4
4 x countersunk screw
5
2 x end cap
6
1 x panel section
8
STUDIO Rondo glass/glass
5
6
WN 059480 45532
4
Mounting
4.1
Checking the glass door panel
CAUTION
Risk of injury from broken glass.
Damage to glass elements may lead to
broken glass.
• Check the glass elements for damage, e.g.
for conchoidal fractures and/or damaged
edges.
• Do not install damaged glass elements.
3. Check the dimensions of the glass door panel and
the glass preparation details.
45
54.5
54.5
Abb. 11
Glass preparation
4.2
Cleaning the glass surfaces
CAUTION
Risk of injury from broken glass
Incorrect cleaning of the glass surfaces can
prevent the door hinges from gripping the
glass surface, causing the glass to break.
• Clean glass surfaces around the clamping
areas carefully.
• Use commercial glass cleaner.
• Do not use thinners.
1.
Clean glass surfaces around the clamping areas
carefully.
2. Wipe glass surfaces dry.
Product description
45
2018-09
