Accessories; Dimensions; Connections / Control Panels; Displays - Truma iNet Box Einbauanweisung

Accessories

TIN-bus cable, 3 different lengths
TIN distributor

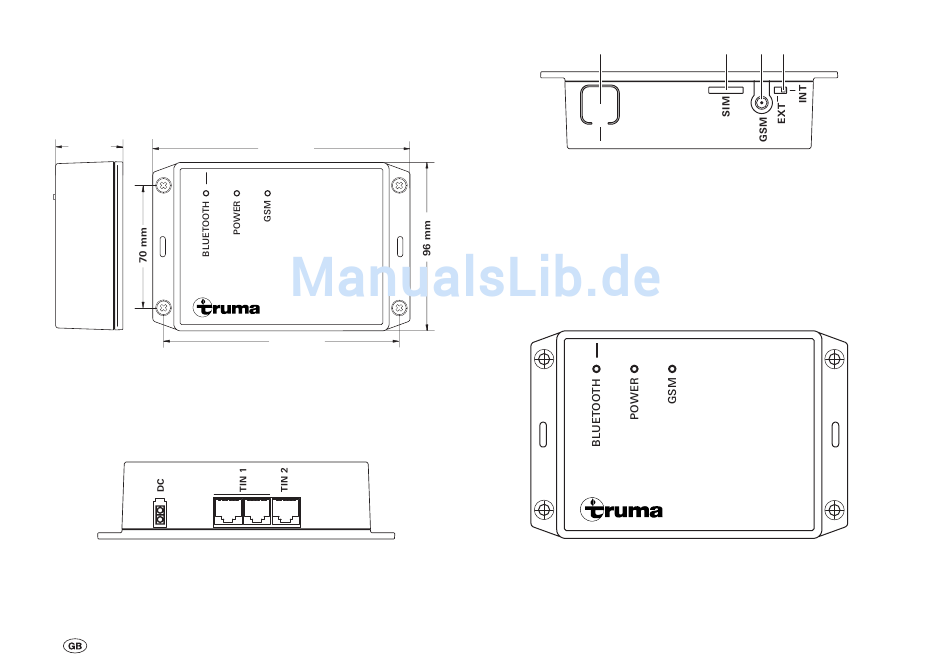

Dimensions

40 mm
Figure 1

Connections / control panels

View – bottom
Figure 2
DC 12 / 24 V operating voltage
TIN 1 2 slots (alternative connections)
TIN 2
10
147 mm
iNet Box
134 mm
View – top
1
Figure 3
1
Button
Connect BLUETOOTH, reset to the factory settings and
perform appliance search
2 Mini-SIM (25 x 15 mm)
3 External antenna connection for GSM antenna
4 Changeover switch internal / external GSM antenna

Displays

Figure 4
Blue LED (BLUETOOTH status)
Green LED (POWER lights up during operation)
Red LED (GSM) lights up when GSM operation is not possible.
2 3 4
iNet Box
