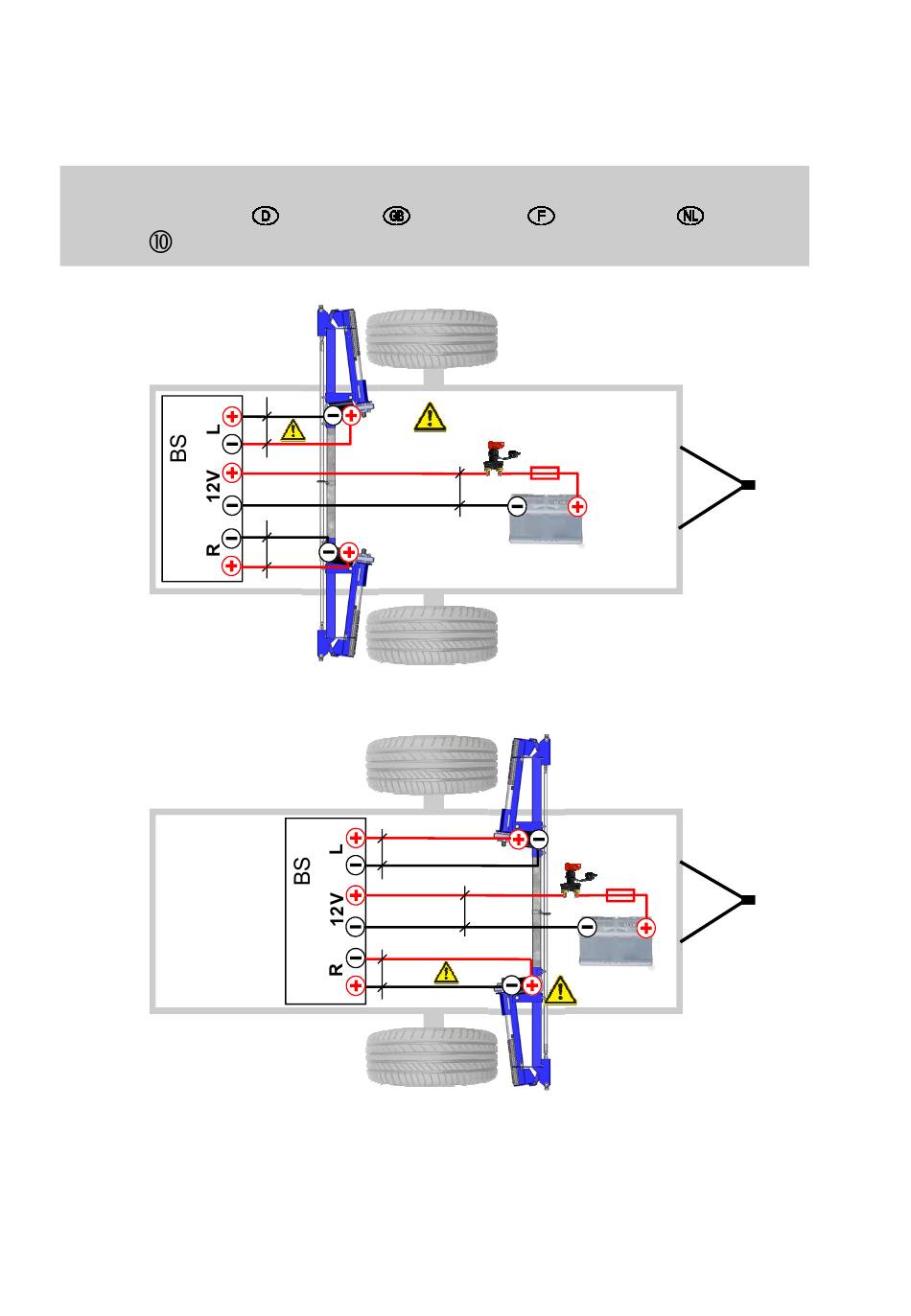

Anschlussplan Wiring Diagram
6 mm²
6 mm²

Plan de connexion

MC Economy
Light
BS + (Positive) = Motor
-
BS (Negative) = Motor
150A
10 mm²
min. 50 Ah
6 mm²
10 mm²
6 mm²

Aansluitschema

-
(Negative)
+ (Positive)
150A
min. 50 Ah
-
BS + (Positive) = Motor (Negative)
-
BS (Negative) = Motor + (Positive)
