FLSUN SR Benutzerhandbuch Seite 9

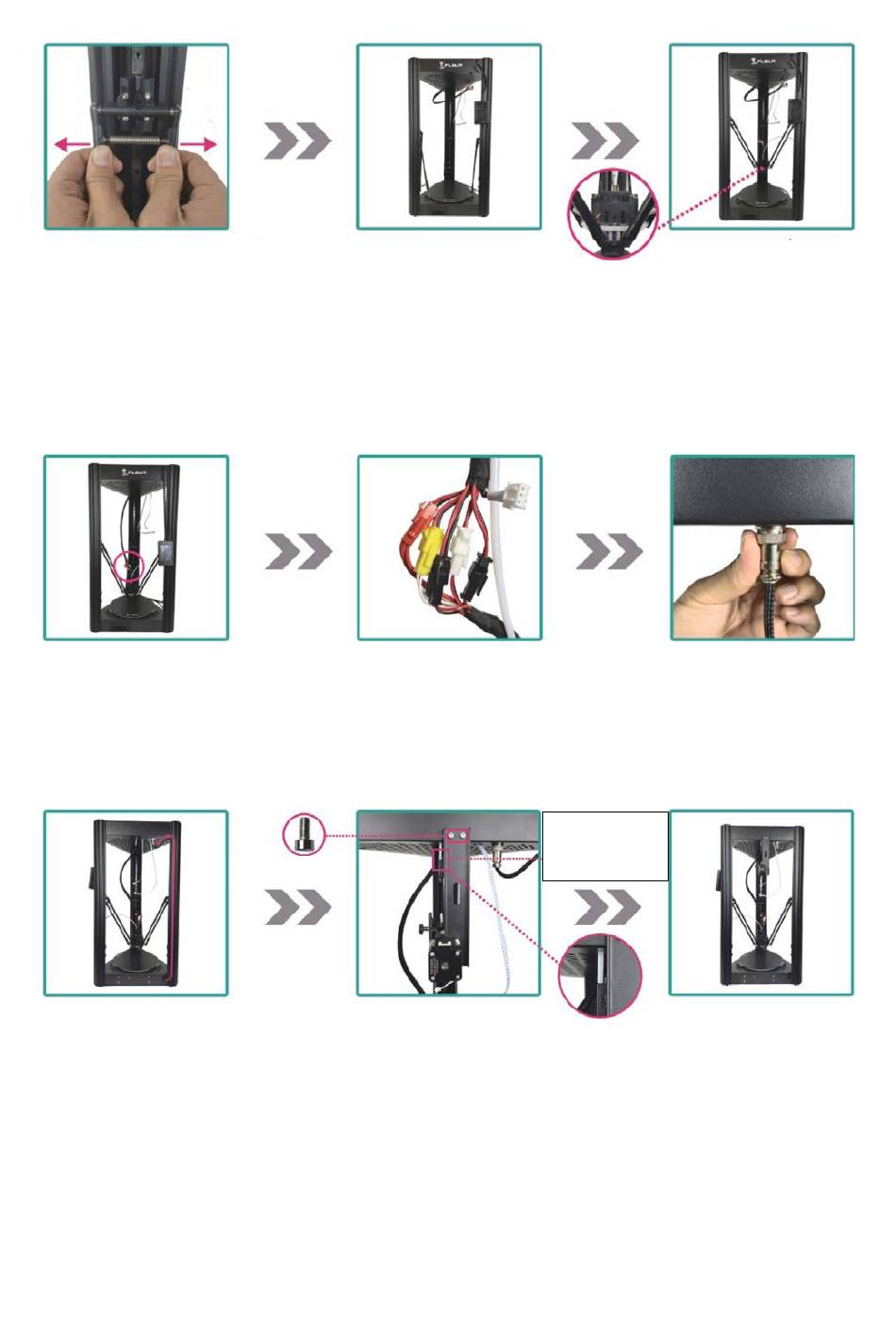

16. Pull the parallel
arm to both sides
and install it on the
slider
19. Connect the
connectors of the
effector module
to the main cable
22. Put the main
cable into the
groove in the axis
17. Install the other
two parallel arms in
the same way
20. The color of the
connectors must match
two black connectors can
be connected arbitrarily
M4*8 (short)
23. Install the extruder
18. Install the
effector module the
logo on the effector
module must face
forward
21. Install the main
cable connector
The PTFE tube and the
filament detection
sensor entrance must
be aligned
24. Extruder
installation finished
