FLSUN SR Benutzerhandbuch Seite 10

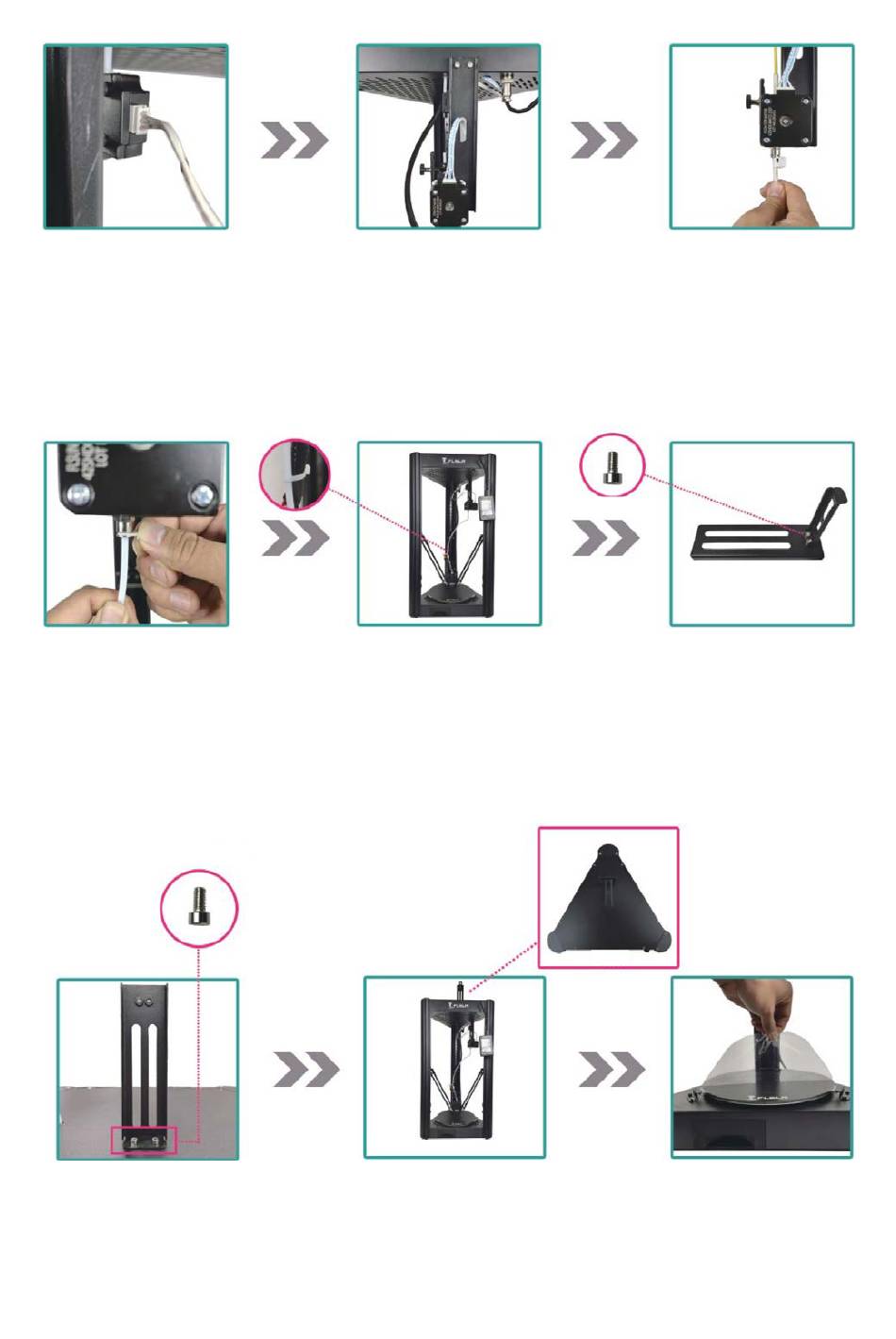

25. Plug the
filament detection
sensor cable
28. Fix the
pneumatic
connector with a
buckle
M4*8 (short)
31. Install the
filament holder to
the top case
26. Plug the extruder
cable
29. Tie the PTFE tube
and the main cable
together at the
location marked in
the photo
32. The orientation
of the filament
holder should be as
shown in the photo
27. Push the PTFE
tube to the
position marked
with an arrow in
the photo
M4*8 (short)
30. Assemble the
filament holder
Front
View from the
33. Remove the
protective film from
the hot bed. The
assembly is finished
