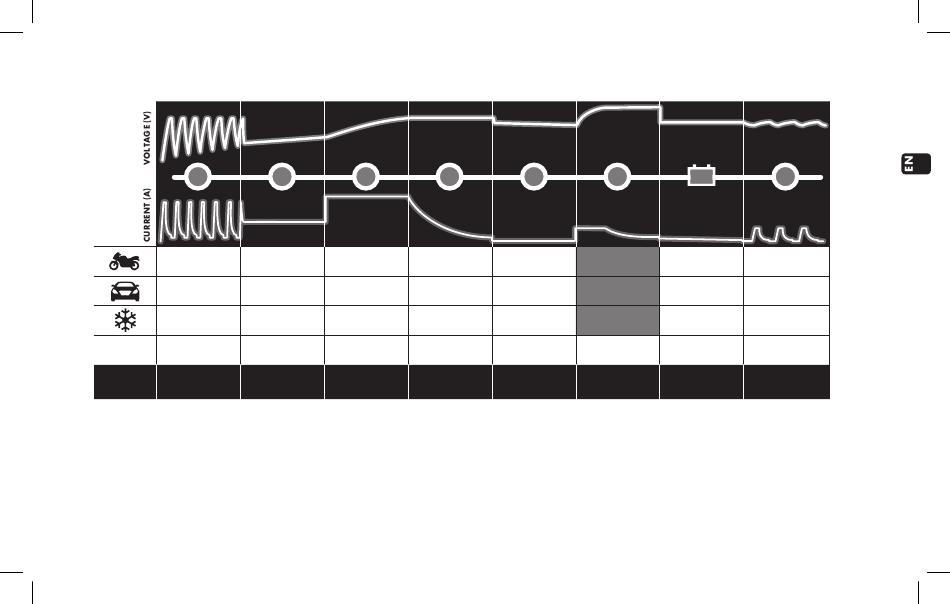

CHARGING PROGRAM
DESULPHATION
1
1
15.8V
15.8V
15.8V
15.8V
RECOND
Limit: Max 8h
STEP 1 dESULPHATION
Detects sulphated batteries. Pulsing current and voltage, removes sulphate from the
lead plates of the battery restoring the battery capacity.
STEP 2 SOFT START
Tests if the battery can accept charge. This step prevents that charging proceeds with
a defect battery.
STEP 3 BULK
Charging with maximum current until approximately 80% battery capacity.
STEP 4 ABSORPTION
Charging with declining current to maximize up to 100% battery capacity.
20015075E Manual MXS 5.0, EU. Print file 005.indd 5
SOFT START BULK ABSORPTION
2 3
0,8A until 12.6V Increasing voltage 14.4V
to 14.4V Declining current
0.8A
5A until 12.6V Increasing voltage 14.4V
to 14.4V Declining current
5A
5A until 12.6V Increasing voltage 14.7V
to 14.7V Declining current
5A
5A until 12.6V Increasing voltage 14.4V
to 14.4V Declining current
5A
Max 8h Max 20h
ANALYSE RECOND
4 5
Checks if voltage
drops to 12V
Checks if voltage
drops to 12V
Checks if voltage
drops to 12V
Checks if voltage Max 15.8V
drops to 12V
1.5A
30 min or 4h
Max 10h 3 minutes
depending on
battery voltage
STEP 5 ANALYSE
Tests if the battery can hold charge. Batteries that can not hold charge may need to be replaced.
STEP 6 RECONd
Choose the Recond program to add the Recond step to the charging process. During the Recond
step voltage increases to create controlled gassing in the battery. Gasing mixes the battery acid and
gives back energy to the battery.
STEP 7 FLOAT
Maintaining the battery voltage at maximum level by providing a constant voltage charge.
STEP 8 PULSE
Maintaining the battery at 95–100% capacity. The charger monitors the battery voltage and gives a
pulse when necessary to keep the battery fully charged.
FLOAT PULSE
7
6 8
13.6V 12.7V‒14.4V
0.8A 0.8‒0.4A
13.6V 12.7V‒14.4V
5A 5‒2A
13.6V 12.7V‒14.7V
5A 5‒2A
13.6V 12.7V‒14.4V
5A 5‒2A
10 days Charge cycle restarts
Charge cycle restarts if voltage drops
if voltage drops
