Schaltplan 2 - 230 V - Cleopatra Steam One Gebrauchsanleitung, Montageanleitung

Deutsch
Heizspannung
Heating voltage
Aansluit spanning
2 - 230 V
PE L1 L2
N
drain outlet valve 230 V
Drawing no. 9017 61 20
PE
Doors
Electronic panel
230 V
inlet valve 230 V
English
LED white Safety
sensor
12 V, max.
4 X 4 W

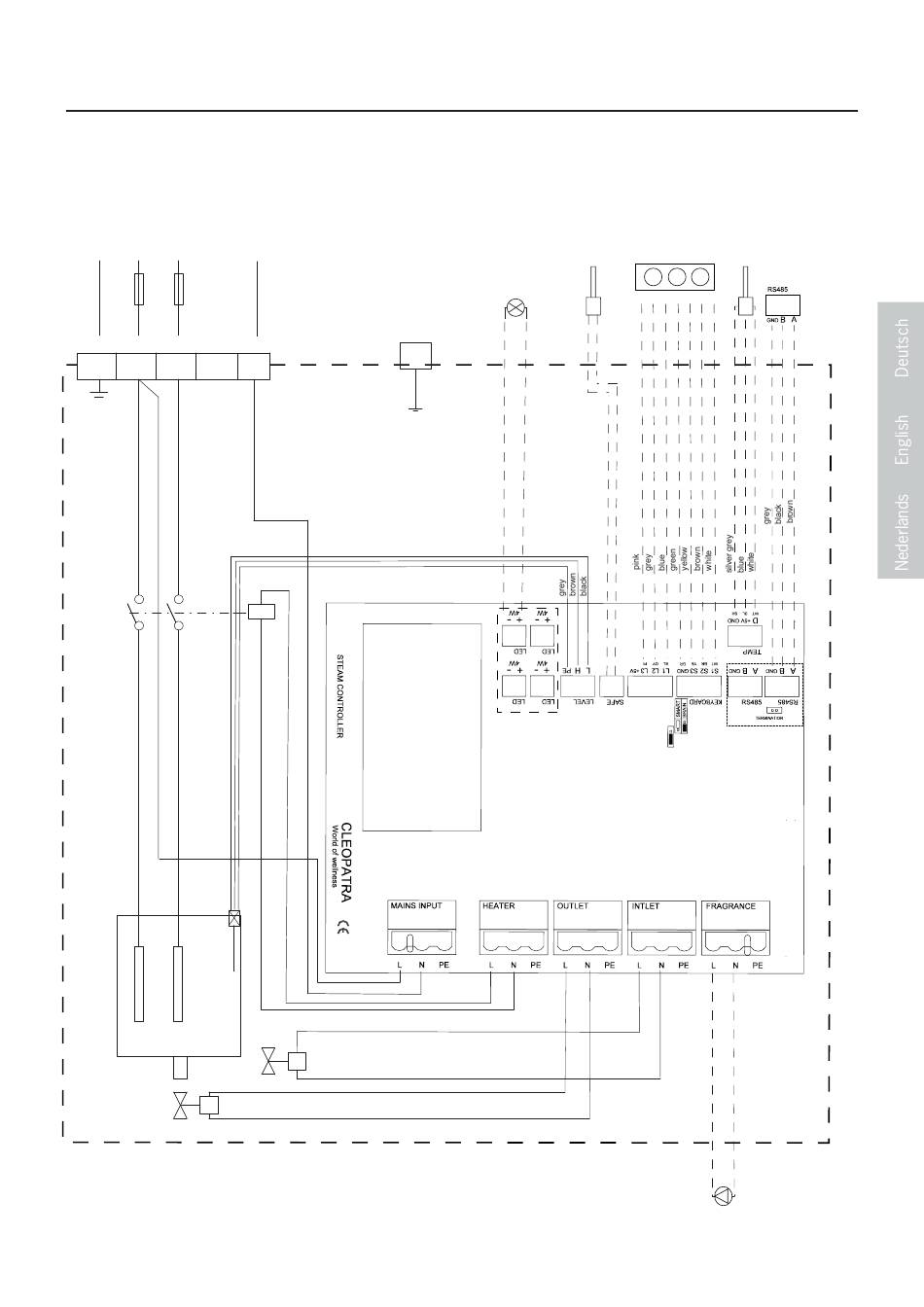

Schaltplan
Connection diagram
Aansluitschema
Nederlands
Schutzmassnahmen nach örtlichen Vorschriften
Protection measures according to local regulations
Beschermingsmaatregelen conform lokale voorschriften
Temperature
control panel
sensor
Fragrance pump
Cleopatra
230 V ac
25
