ziemer PASCAL DCT Gebrauchsanweisung

PASCAL DCT: Directions for use
M
Distributed by:
SMT Swiss Microtechnology AG Ziemer Ophthalmic Systems AG
Allmendstrasse 11 Allmendstrasse 11
2562 Port, Switzerland 2562 Port, Switzerland
www.pascal-tonometer.com Phone: +41 848 943 637
Distributed in Germany by:
Ziemer Ophthamology (Deutschland) GmbH
In Hausgrün 15
79312 Emmendingen, Germany
Phone: +49 933 386 0
Doc No: 6100-50-0001-22
How to take IOP Measurements
Watch the video first!
It can be found on the CD or on www.ziemergroup.com.
1. Always use a new SensorCap!
Do not disinfect or reuse the cap and the SensorTip as they get damaged.
2. Place the patient in front of the slit lamp. Give him/her time to relax.
Vascular parameters influence IOP. A comfortable positioning is the key to reliable IOP.
3. Apply a drop of anesthetics – typically with no fluorescein.
Ask the patient to look straight forward.
4. Use the slit lamp's joystick to center the SensorTip close to the apex.
Switch on the PASCAL (Blue Knob) before touching the cornea.
5. Advance SensorTip towards the eye until its lever arm is fully upright.
Do not be timid - you cannot harm the eye as a loud beep-tone would warn you if you
advance too far. The Eyelid or lashes must not touch the SensorTip.
6. Center the small square sensor on the dark circular zone (= tear film in contact zone)
The dark circular area marks the zone where the tear film of the cornea touches the
SensorTip– it is not necessarily concentric with the pupil.

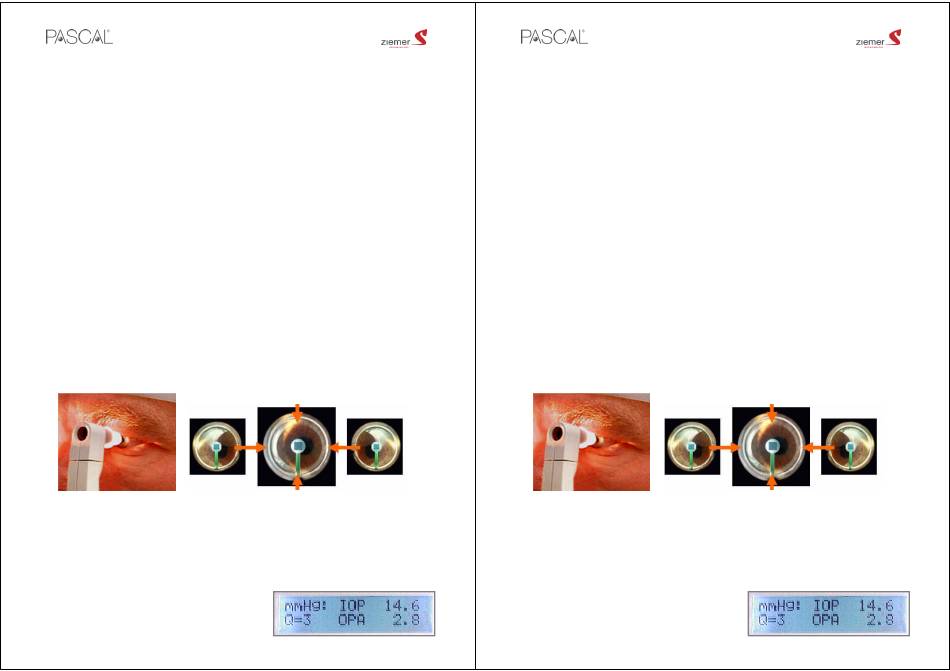

Patient must look straight ahead. Picture of SensorTip and Eye through the ocular. Sensor (the
SensorTip must be aligned bluish square) should be centered on the dark blotch formed
centrally on the apex. by the tear film contacting the SensorTip surface.
7. PASCAL starts to measure giving a continuous IOP melody when the sensor position is
central and lever arm upright. Keep this position.
If the melody is intermittent, advance further - if no melody is heard, continue to
center.
8. When you hear the Q-indicator, withdraw the slit lamp swiftly.
The 3 tones indicate a desired quality is met. Only a fast removal ends a measurement.
9. PASCAL then calculates IOP, OPA and Q.
A Quality index of Q=1 or 2 is desirable.
Consider repeating the measurement for Q=3.
Q=4 or 5 results must be discarded.
Doc. 6100-50-0001-22
Distributed in USA by:
Ziemer USA, Inc.
620 E. Third St.
Alton, IL, 62002, USA
Phone: 866-708-4472
Caution: Federal (U.S.A.) Law restricts this
device to sale by or on the order of a physician
C
or practitioner.
Support@ziemergroup.com
0297
www.ziemergroup.com
Issue Date: 01-2015
M
SMT Swiss Microtechnology AG
Allmendstrasse 11
2562 Port, Switzerland
www.pascal-tonometer.com
Distributed in Germany by:
Ziemer Ophthamology (Deutschland) GmbH
In Hausgrün 15
79312 Emmendingen, Germany
Phone: +49 933 386 0
Doc No: 6100-50-0001-22
Watch the video first!
1. Always use a new SensorCap!
Do not disinfect or reuse the cap and the SensorTip as they get damaged.
2. Place the patient in front of the slit lamp. Give him/her time to relax.
Vascular parameters influence IOP. A comfortable positioning is the key to reliable IOP.
3. Apply a drop of anesthetics – typically with no fluorescein.
Ask the patient to look straight forward.
4. Use the slit lamp's joystick to center the SensorTip close to the apex.
Switch on the PASCAL (Blue Knob) before touching the cornea.
5. Advance SensorTip towards the eye until its lever arm is fully upright.
Do not be timid - you cannot harm the eye as a loud beep-tone would warn you if you
advance too far. The Eyelid or lashes must not touch the SensorTip.
6. Center the small square sensor on the dark circular zone (= tear film in contact zone)
The dark circular area marks the zone where the tear film of the cornea touches the
SensorTip– it is not necessarily concentric with the pupil.
Patient must look straight ahead.
SensorTip must be aligned
centrally on the apex.
7. PASCAL starts to measure giving a continuous IOP melody when the sensor position is
central and lever arm upright. Keep this position.
If the melody is intermittent, advance further - if no melody is heard, continue to
center.
8. When you hear the Q-indicator, withdraw the slit lamp swiftly.
The 3 tones indicate a desired quality is met. Only a fast removal ends a measurement.
9. PASCAL then calculates IOP, OPA and Q.
A Quality index of Q=1 or 2 is desirable.
Consider repeating the measurement for Q=3.
Q=4 or 5 results must be discarded.
1/8 Doc. 6100-50-0001-22
PASCAL DCT: Directions for use
Distributed by: Distributed in USA by:
Ziemer Ophthalmic Systems AG Ziemer USA, Inc.
Allmendstrasse 11 620 E. Third St.
2562 Port, Switzerland Alton, IL, 62002, USA
Phone: +41 848 943 637 Phone: 866-708-4472
Caution: Federal (U.S.A.) Law restricts this
device to sale by or on the order of a physician
C
or practitioner.
Support@ziemergroup.com
0297
www.ziemergroup.com
How to take IOP Measurements
It can be found on the CD or on www.ziemergroup.com.
Picture of SensorTip and Eye through the ocular. Sensor (the
bluish square) should be centered on the dark blotch formed
by the tear film contacting the SensorTip surface.
Issue Date: 01-2015
