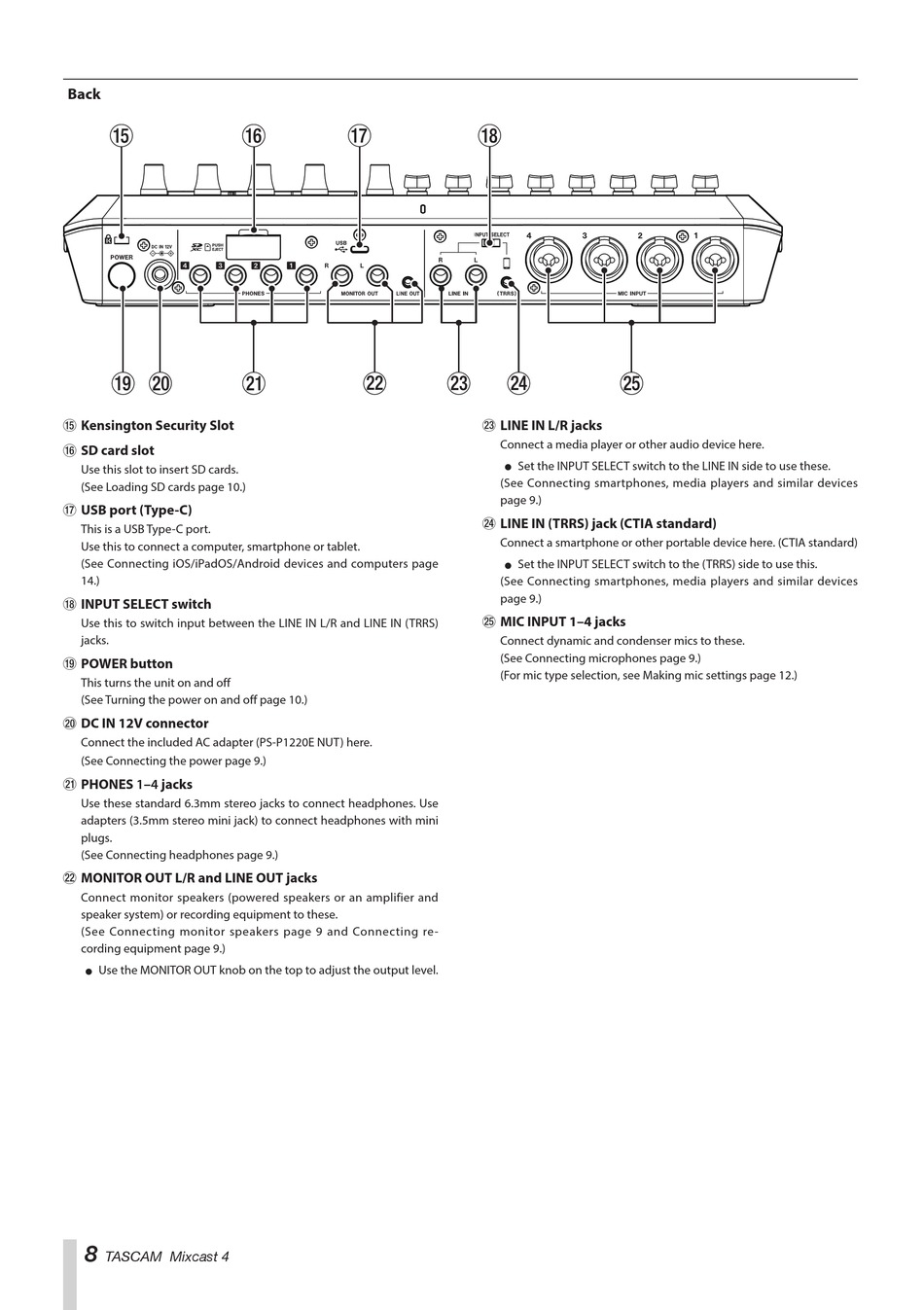

Back

t Kensington Security Slot
y SD card slot
Use this slot to insert SD cards.
(See Loading SD cards page 10.)
u USB port (Type-C)
This is a USB Type-C port.
Use this to connect a computer, smartphone or tablet.
(See Connecting iOS/iPadOS/Android devices and computers page
14.)
i INPUT SELECT switch
Use this to switch input between the LINE IN L/R and LINE IN (TRRS)
jacks.
o POWER button
This turns the unit on and off
(See Turning the power on and off page 10.)
p DC IN 12V connector
Connect the included AC adapter (PS-P1220E NUT) here.
(See Connecting the power page 9.)
a PHONES 1–4 jacks
Use these standard 6.3mm stereo jacks to connect headphones. Use
adapters (3.5mm stereo mini jack) to connect headphones with mini
plugs.
(See Connecting headphones page 9.)
s MONITOR OUT L/R and LINE OUT jacks
Connect monitor speakers (powered speakers or an amplifier and
speaker system) or recording equipment to these.
(See Connecting monitor speakers page 9 and Connecting re-
cording equipment page 9.)
o Use the MONITOR OUT knob on the top to adjust the output level.
8
TASCAM Mixcast 4
d LINE IN L/R jacks
Connect a media player or other audio device here.
o Set the INPUT SELECT switch to the LINE IN side to use these.
(See Connecting smartphones, media players and similar devices
page 9.)
f LINE IN (TRRS) jack (CTIA standard)
Connect a smartphone or other portable device here. (CTIA standard)
o Set the INPUT SELECT switch to the (TRRS) side to use this.
(See Connecting smartphones, media players and similar devices
page 9.)
g MIC INPUT 1–4 jacks
Connect dynamic and condenser mics to these.
(See Connecting microphones page 9.)
(For mic type selection, see Making mic settings page 12.)
