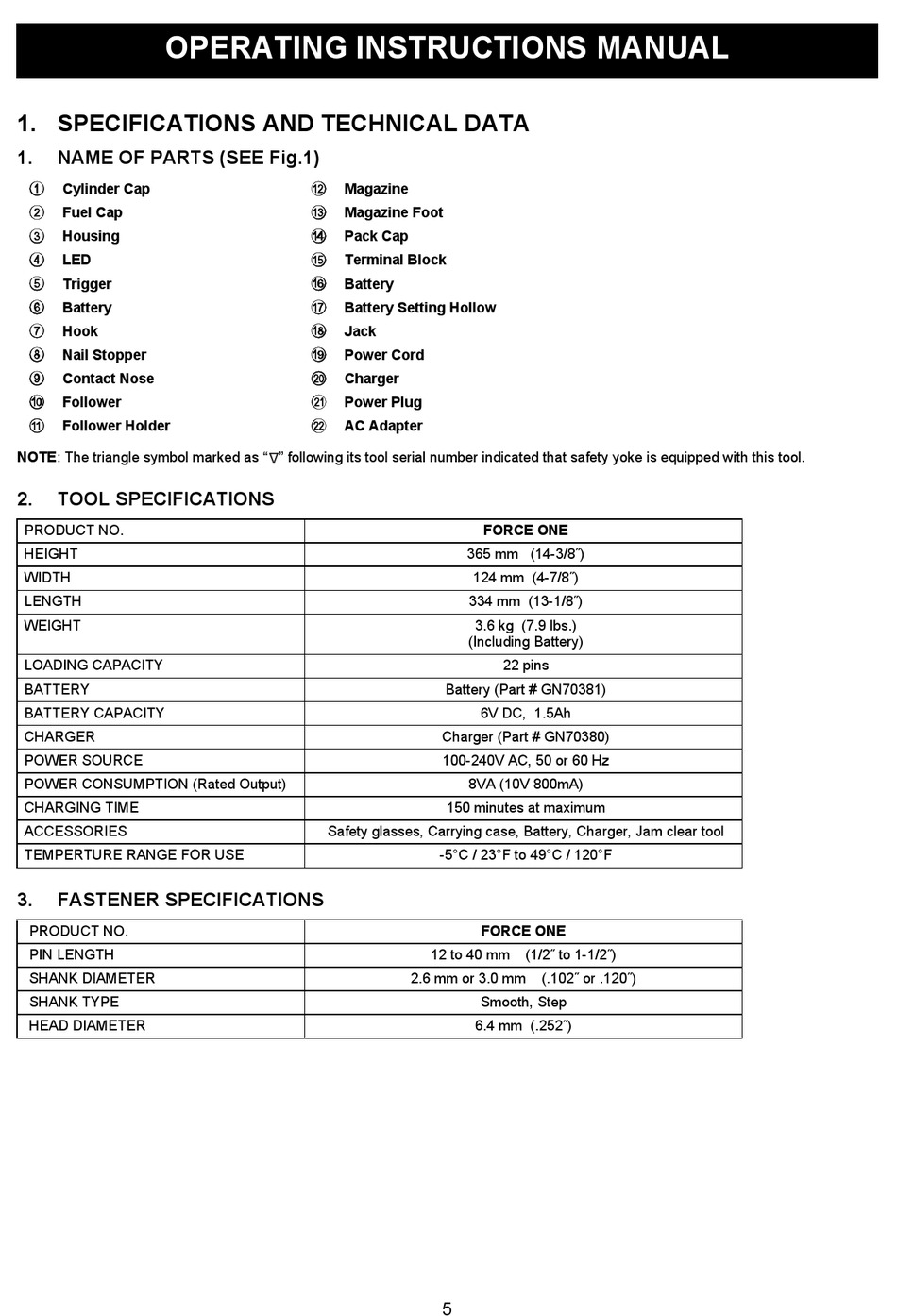

OPERATING INSTRUCTIONS MANUAL
1. SPECIFICATIONS AND TECHNICAL DATA
1.
NAME OF PARTS (SEE Fig.1)
1
Cylinder Cap
2
Fuel Cap
3
Housing
4
LED
5
Trigger
6
Battery
7
Hook
8
Nail Stopper
9
Contact Nose
0
Follower
a
Follower Holder
NOTE: The triangle symbol marked as " " following its tool serial number indicated that safety yoke is equipped with this tool.
2.
TOOL SPECIFICATIONS
PRODUCT NO.
HEIGHT
WIDTH
LENGTH
WEIGHT
LOADING CAPACITY
BATTERY
BATTERY CAPACITY
CHARGER
POWER SOURCE
POWER CONSUMPTION (Rated Output)
CHARGING TIME
ACCESSORIES
TEMPERTURE RANGE FOR USE
3.
FASTENER SPECIFICATIONS
PRODUCT NO.
PIN LENGTH
SHANK DIAMETER
SHANK TYPE
HEAD DIAMETER
b
Magazine
c
Magazine Foot
d
Pack Cap
e
Terminal Block
f
Battery
g
Battery Setting Hollow
h
Jack
i
Power Cord
j
Charger
k
Power Plug
l
AC Adapter
365 mm (14-3/8˝)
124 mm (4-7/8˝)
334 mm (13-1/8˝)
3.6 kg (7.9 lbs.)
(Including Battery)
Battery (Part # GN70381)
Charger (Part # GN70380)
100-240V AC, 50 or 60 Hz
8VA (10V 800mA)
150 minutes at maximum
Safety glasses, Carrying case, Battery, Charger, Jam clear tool
-5°C / 23°F to 49°C / 120°F
12 to 40 mm
2.6 mm or 3.0 mm
6.4 mm (.252˝)
5
FORCE ONE
22 pins
6V DC, 1.5Ah
FORCE ONE
(1/2˝ to 1-1/2˝)
(.102˝ or .120˝)
Smooth, Step
