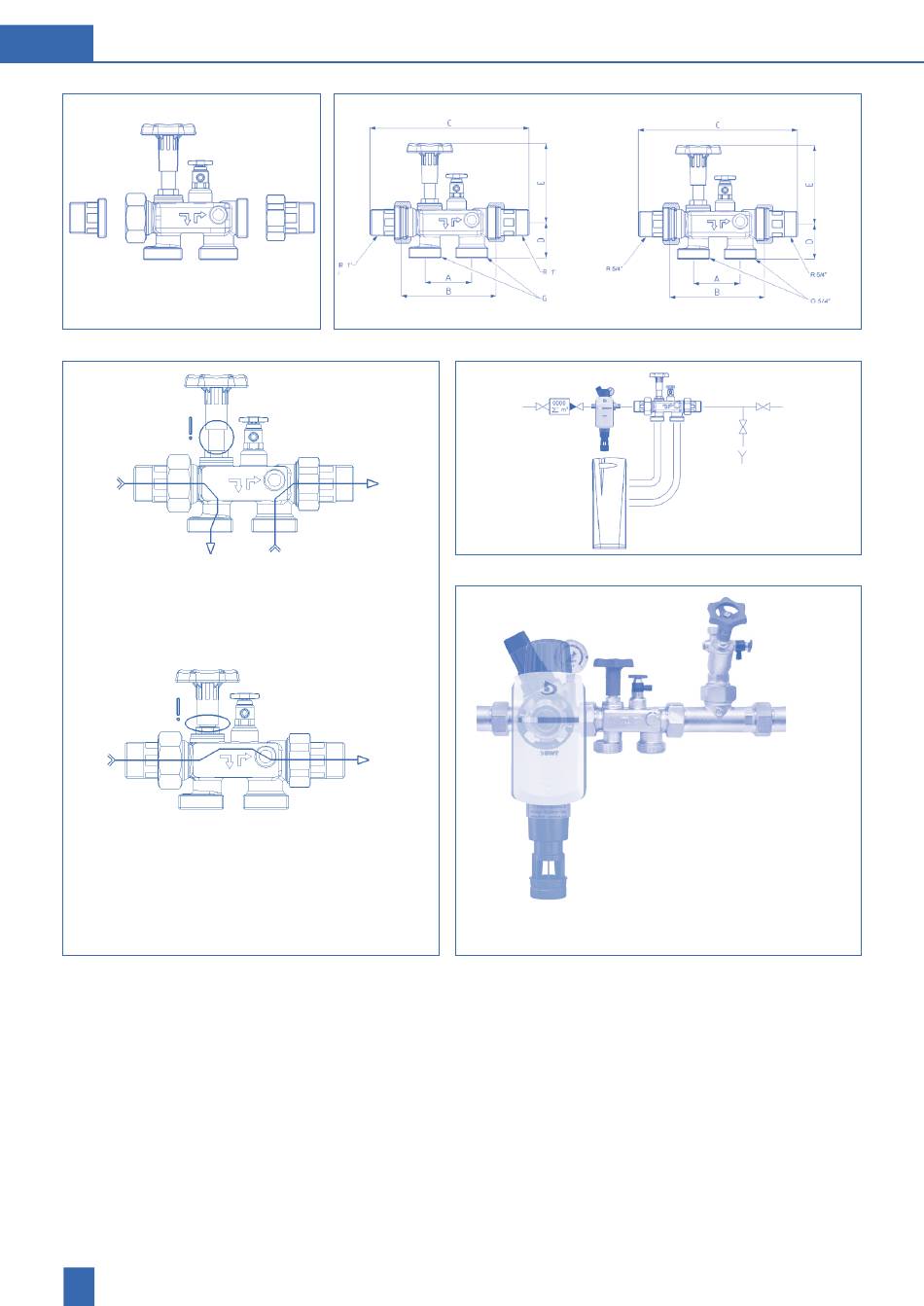

BWT Multiblock X Einbau- Und Bedienungsanleitung Seite 8

EN
Multiblock X
Screw-in part 1" or 5/4"
fig. 1
Open position – Supply via softener/limescale protection
system: handwheel in UPPER position (stop)
Bypass position – Supply via softener/limescale protection
system: handwheel in LOWER position (stop)
fig. 4
8
Connection coupling . Connection thread
1" or 5/4"
fig. 2
Multiblock X – 1"
External thread
5/4"
External thread
fig. 3
a)
fig. 5
Multiblock X – 5/4"
External thread
c)
b)
a) DR pressure reducer module and filter**
b) Direct, flat-insulating screwed-on multiblock*
c) Outflow with, for example, T-module and FR
valve**
* supplied with product
** not supplied with product
External thread
External thread
