Correctly Connect Cables

Connect the
Power Cord

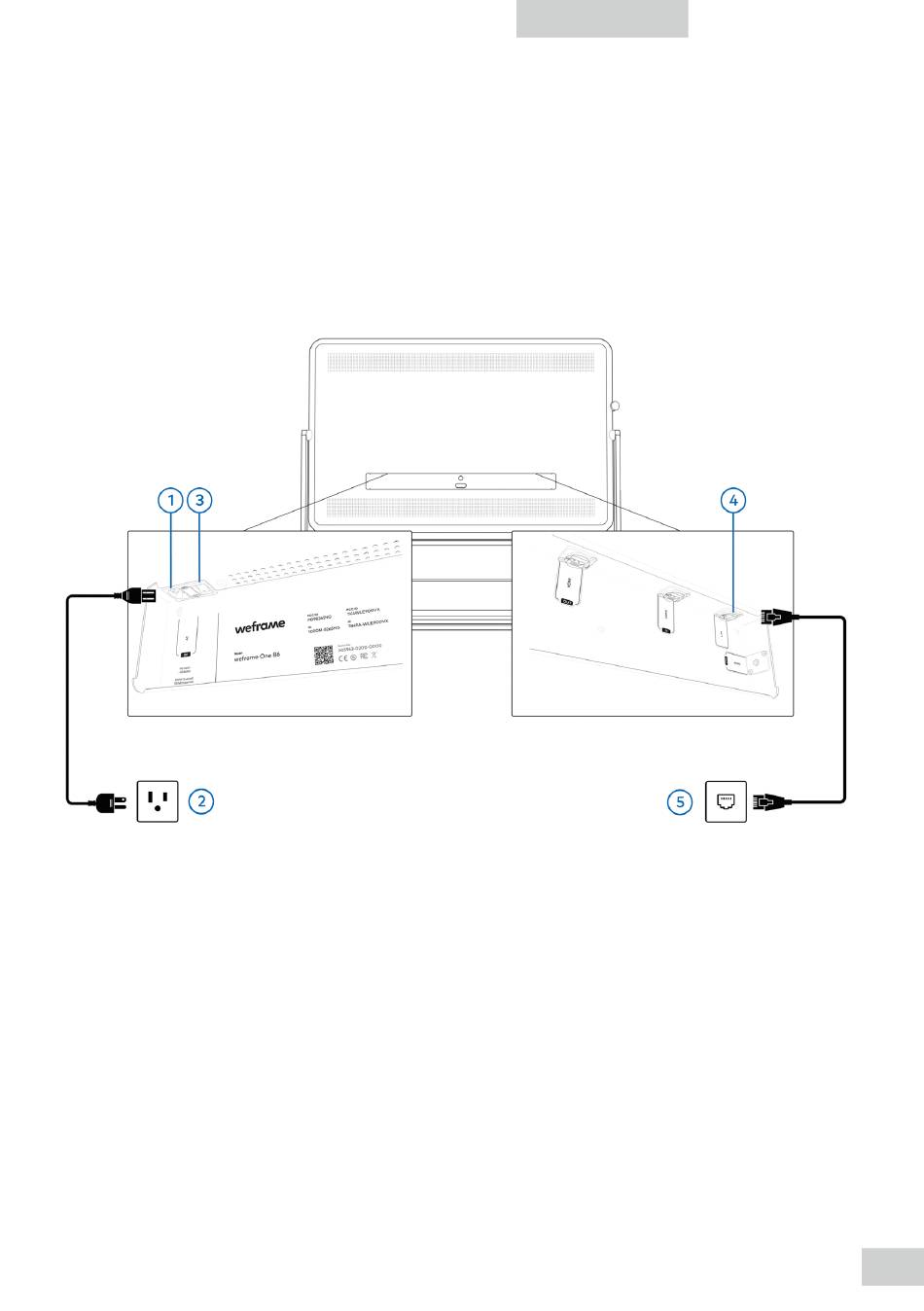

• Make sure that the toggle switch (3) above the
AC power port (1) is set to 0/OFF.
• Connect the supplied power cord to the
AC power port (1) in the recessed port area on
the back of the display.
• Insert the plug of the power cord into a 220V
socket (2).
• Only after completing the above steps can you
now switch the toggle switch (2) to the 1/ON
position.
ENGLISH
Connect the
Network Cable
• Connect the supplied LAN cable to the
LAN port (4) in the recessed port area on the
back of the display.
• Insert the plug of the LAN cable into an
RJ45 type LAN socket (5).
