– Obstacles (e.g. trees, walls etc.)
interrupt the line of sensor vision.
– Heat radiation is not detected
through obstacles (e.g. walls or
panes of glass), the sensor is not
triggered.
– Sudden fluctuations in the tempera­
ture from changes in weather are not
distinguished sources of heat.
Models
– XLED ONE
– XLED ONE S
– XLED ONE XL
– XLED ONE XL S
Package contents (Fig. 3.1, 3.2)
Product dimensions (Fig. 3.3, 3.4)
Product parts (Fig. 3.5, 3.6)
A Floodlight head
B Bracket
Mounting slots
C
D Cable
E Sensor unit (S versions only)
F Time setting (S versions only)
G Twilight setting (S versions only)
2 grub screws
H
Connection (Fig. 3.7)
The supply lead is a three­core cable:
L = phase (brown, grey or black)
N = neutral conductor (blue)
= Protective­earth conductor
(green/yellow)
A mains switch for switching the prod­
uct ON and OFF may be installed in the
mains supply lead.
Technical specifications
– Dimensions (D × W × H):
XLED ONE:173 × 229 × 195 mm
XLED ONE S: 202 × 229 × 195 mm
XLED ONE XL: 193 × 259 × 215 mm
XLED ONE XL S: 22 × 259 × 215 mm
– Power supply: 220-240 V, 50/60 Hz
– Power consumption (P
– Sensor on standby (P
– Luminous flux (360°):
XLED ONE/XLED ONE S: 2,060 lm
XLED ONE XL/XLED ONE XL S: 4,200 lm
– Weight:
XLED ONE/XLED ONE S: 1.185 kg
XLED ONE XL/XLED ONE XL S: 1.420 kg
– Area illuminated to the front:
XLED ONE/ XLED ONE S: 364 cm²
XLED ONE XL/ XLED ONE XL S: 464 cm²
– Power factor:
XLED ONE/ XLED ONE S: 0.70
XLED ONE XL/XLED ONE XL S: 0.95
– Efficieny:
XLED ONE XL S: 98 lm/W
– Light colour:
– Colour­rendering index:
– Average rated life expectancy:
L70B50 at 25°C: >36,000 hours
– Colour consistency SDCM:

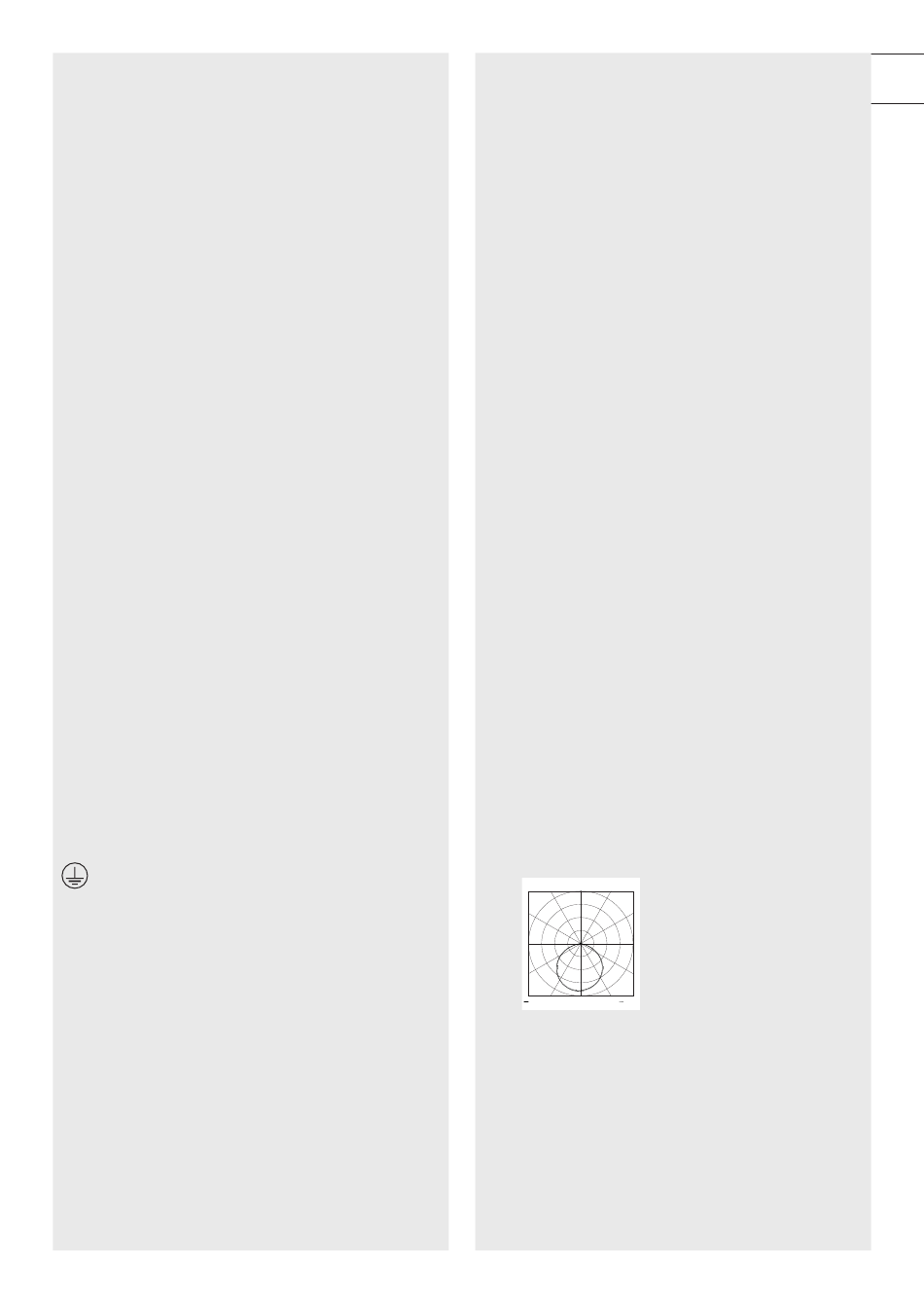

– Luminous intensity distribution:
LumEdit 202103031300_XLED ONE ohne Sensor flickerarm anthrazit_5.0x5
150° 180° 150°
120°
90°
100
200
60°
300
30° 0° 30°
C0 / C180 C90 / C270
cd / 1000 lm
– Sensor technology:
09.03.21 / 11:38
– Angle of coverage (S only):
– Detection reach (S only):
– Mounting height:
– Time setting:
– Twilight setting:
15
):
on
XLED ONE: 18 W
XLED ONE S: 18.5 W
XLED ONE XL: 41.5 W
XLED ONE XL S: 42.5 W
):
sb
XLED ONE S: 0.50 W
XLED ONE XL S: 0.50 W
XLED ONE: 114 lm/W
XLED ONE S: 111 lm/W
XLED ONE XL: 101 lm/W
3,000 K (warm white)
R
starting value: 6
Polar Diagram
120°
90°
60°
Passive infrared
1/1
12 m tangential
8 s to 35 min
2-2,000 lux
GB
≥ 80
a
180°
2 m
