Development Board - Joy-it JOY-PI Bedienungsanleitung

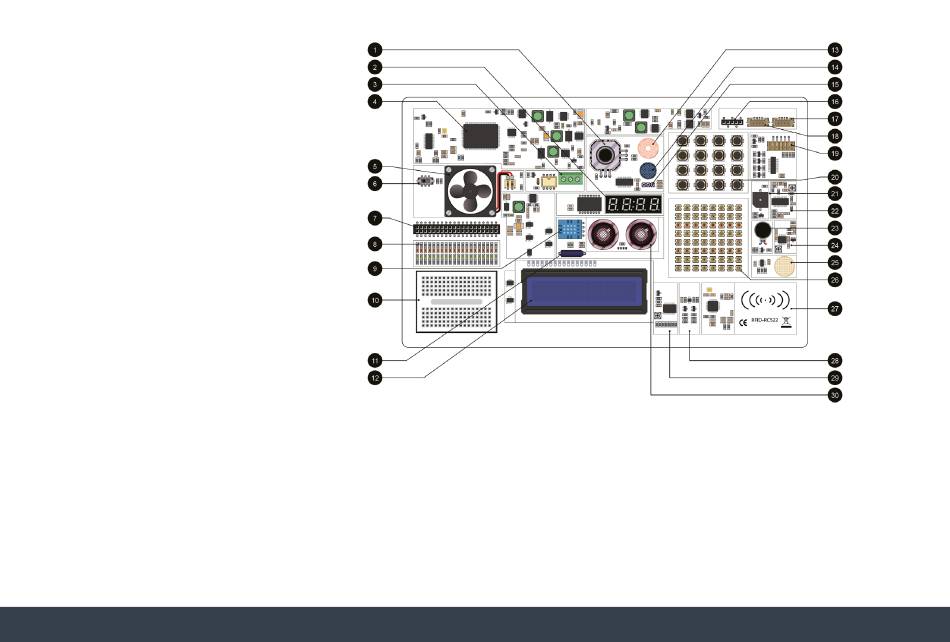

DEVELOPMENT BOARD

1. Joystick
2. 7-Segment Display
3. Relay
4. Display driver
5. Fan unit
6. Raspberry Pi connection switch
7. GPIO-Interface
8. GPIO-Indicator LED
9. DHT11 Temperature- & Moisture-Sensor
10. Breadboard
11. Tilt sensor
12. 16x2 LCD-Display
13. PIR-Sensor
14. Sound-Sensor
15. IR-Sensor-Interface
16. I/O / ADC / UART Expansion-Interface
17. Servo-Interface
18. I2C Expansion-Interface
19. Stepper motor-Interface
20. 4x4 Buttonmatrix
21. Buzzer
22. PIR Sensitivity adjustment
23. Vibration motor
24. Sound-Sensor sensitivity adjustment
25. Touch-Sensor
26. 8x8 RGB-Matrix
14
27. RC522-RFID Module
28. Light sensor
29. 16x2 LCD Brightness adjustment
30. Ultrasonic-sensor
