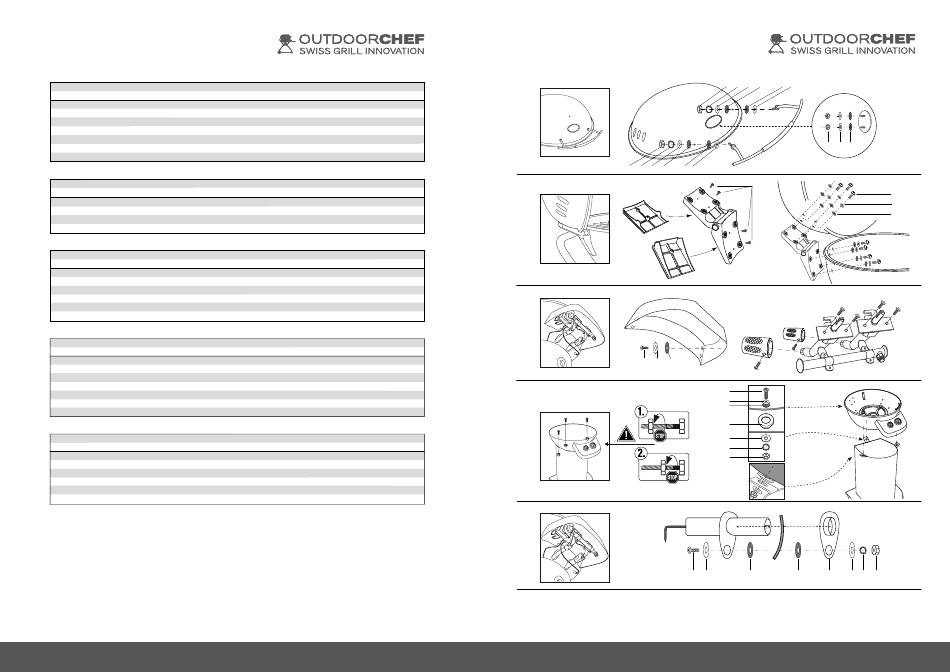

GENEVA 570G
B Lid
Pos. Art. Nr. Description
B1 18.371.16 Washer
B2 18.371.17 Teflonwasher
B3 18.371.18 Nut
B4 18.371.21 Springwasher
B5 18.371.03 Teflonwasher
B6 18.371.02 Washer
B7 18.370.48 Nut
C Lid Hinge
Pos. Art. Nr. Description
C1 18.370.31 Lid hinge cover screw
C2 18.370.25 Screw
C3 18.370.62 Washer
C4 18.370.76 Teflonwasher
D Valve assembly & Panel
Pos. Art. Nr. Description
D1 18.370.05 Screw
D2 18.370.27 Screw
D3 18.371.01 Screw
D4 18.371.02 Washer
D5 18.371.03 Teflonwasher
D6 18.371.00 Screw
E Bowl
Pos. Art. Nr. Description
E1 18.370.09 Screw
E2 18.371.16 Washer
E3 18.371.17 Teflonwasher
E4 18.370.91 Protection washer bowl
E5 18.370.68 Washer
E6 18.371.19 Dome nut
E7 18.371.21 Springwasher
F Piezo electrode
Pos. Art. Nr. Description
F1 18.371.01 Screw
F2 18.371.02 Washer
F3 18.371.03 Teflonwasher
F4 18.371.04 Spring washer
F5 18.370.48 Nut
F6 18.371.1 1 Holder piezo electrode
OUTDOORCHEF.COM
Deckel
Beschreibung
U-scheibe
U-Scheibe Teflon
Mutter
Federring
U-Scheibe Teflon
U-Scheibe
Mutter
Deckelscharnier
Beschreibung
Deckelscharnier-Abdeckungsschrauben
Schraube
U-Scheibe
U-Scheibe Teflon
Ventilsatz & Konsole
Beschreibung
Schraube
Schraube
Schraube
U-Scheibe
U-Scheibe Teflon
Schraube
Kugel
Beschreibung
Schraube
U-Scheibe
U-Scheibe Teflon
Schutz-Unterlagscheibe Kugel
U-Scheibe
Hutmutter
Federring
Piezo-Elektrode
Beschreibung
Schraube
U-Scheibe
U-Scheibe Teflon
Federring
Mutter
Halterung Piezo Elektrode
GENEVA 570G
B
B3 B4 B1 B2 B2 B1
C
D
D3 D4 D5
E
F
F1 F2
OUTDOORCHEF.COM
B3 B4 B1 B2 B2 B1
B7 B6 B5
C1
C2
C3
C4
D6
D6
D1
D2
E1
E2
E3
E4
E5
E7
E6
F3 F3 F6 F2 F4 F5
