Assembly instructions:
Hanging cabinet, depth 33 cm
The fixture materials provided with this product (dowels and screws) are only suitable for fixing parts to concrete and/or solid
masonry. Please observe the maximum load that the wall‐mounted elements can carry. If the condition of the wall is not suitable (e.g. if
it is a lightweight partition wall), then another type of fixture suitable for the load that is to be carried should be used. Check the electrical
input of any connection or device technology. Free‐hanging light fixtures require cable duct solutions that are either on or under plaster.
Mark out the exact position for the hanging cabinet on the wall!

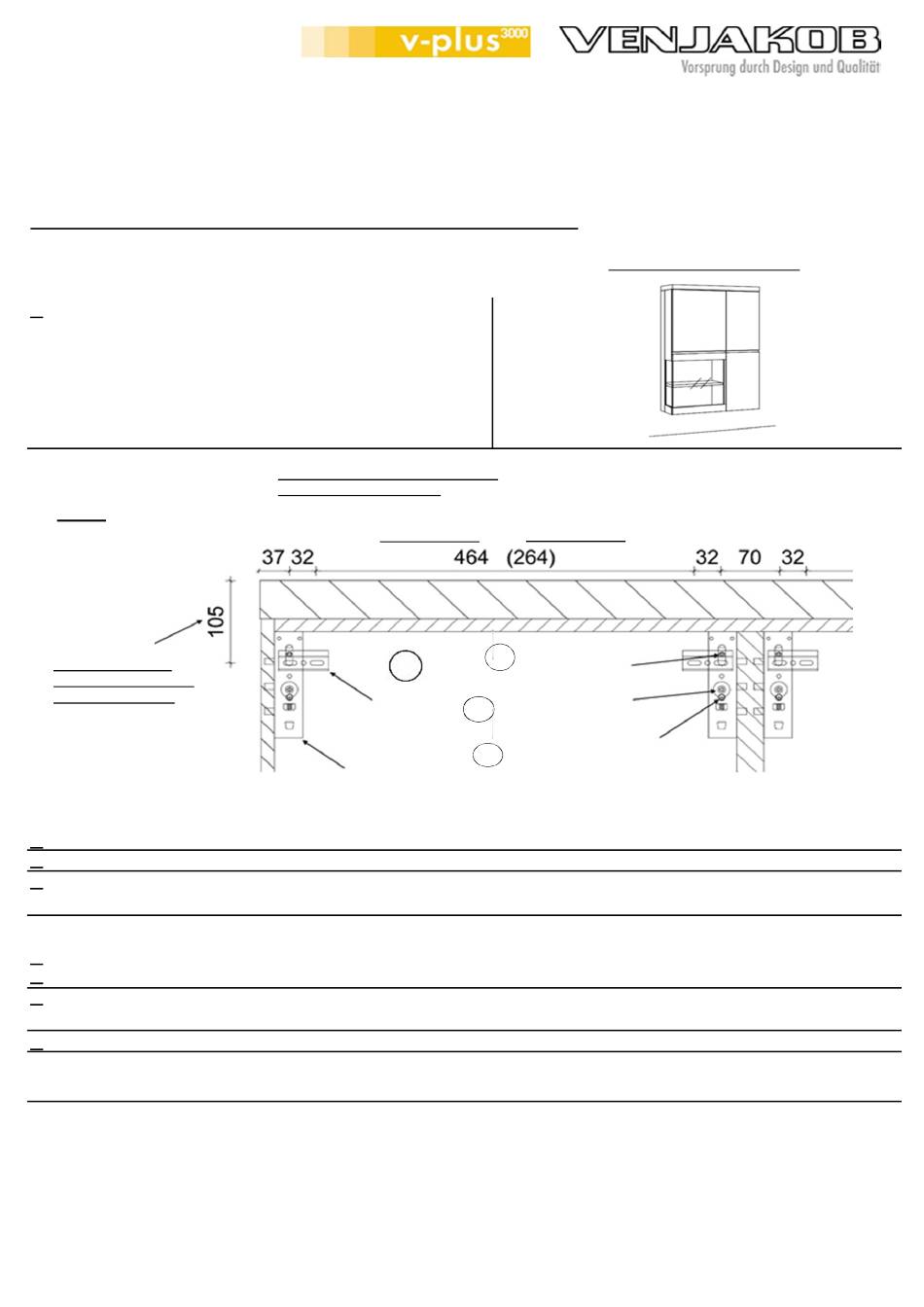

1. Transfer the drilling dimensions for the suspension rails Fig. 1
to the wall.
Drill Ø 8 mm holes in the masonry and insert Ø 8 x 40 mm
dowels.
Screw in suspension rails with 2 x Ø 5 x 60 mm screws.
Fig. 1
Drilling dimensions
of carcass outer edges
for suspension rails
2. Additional item lighting: => See lighting wiring diagram
3. If necessary for assembly: remove front parts.
4. In the carcass, open the upper screw on the suspension support (safety catch),
hang the carcass on the wall and close the safety catch again.
Align with the spirit level:
5. The horizontal position of the cabinet can be corrected with the lower height adjustment screw on the suspension rail.
6. With the upper depth adjustment screw, you can set the distance to the wall and the vertical inclination.
7. Cover the holes on the back panel with cover caps.
Reattach the front parts and align if necessary. Clip the decorative caps onto the door hinges.
8. Attach the handles.
Please note: Align and load all supports evenly to ensure that the load-bearing capacity can be guaranteed!
Observe the maximum load-bearing capacity of the hanging cabinet!
Drilling dimensions of carcass outer
edges for suspension rails
60th element
1
Suspension rails
on the wall
Suspension support
on the carcass
Internet: www.venjakob‐moebel.de (additional assembly instructions)
Fig.: Example model 5709L
40th element
Screws for
4
safety catch
Suspension support
6
depth adjustment screw
Suspension support
5
height adjustment screw
Service Hotline: Tel. +49 (0) 5209 592 0
55075‐02
