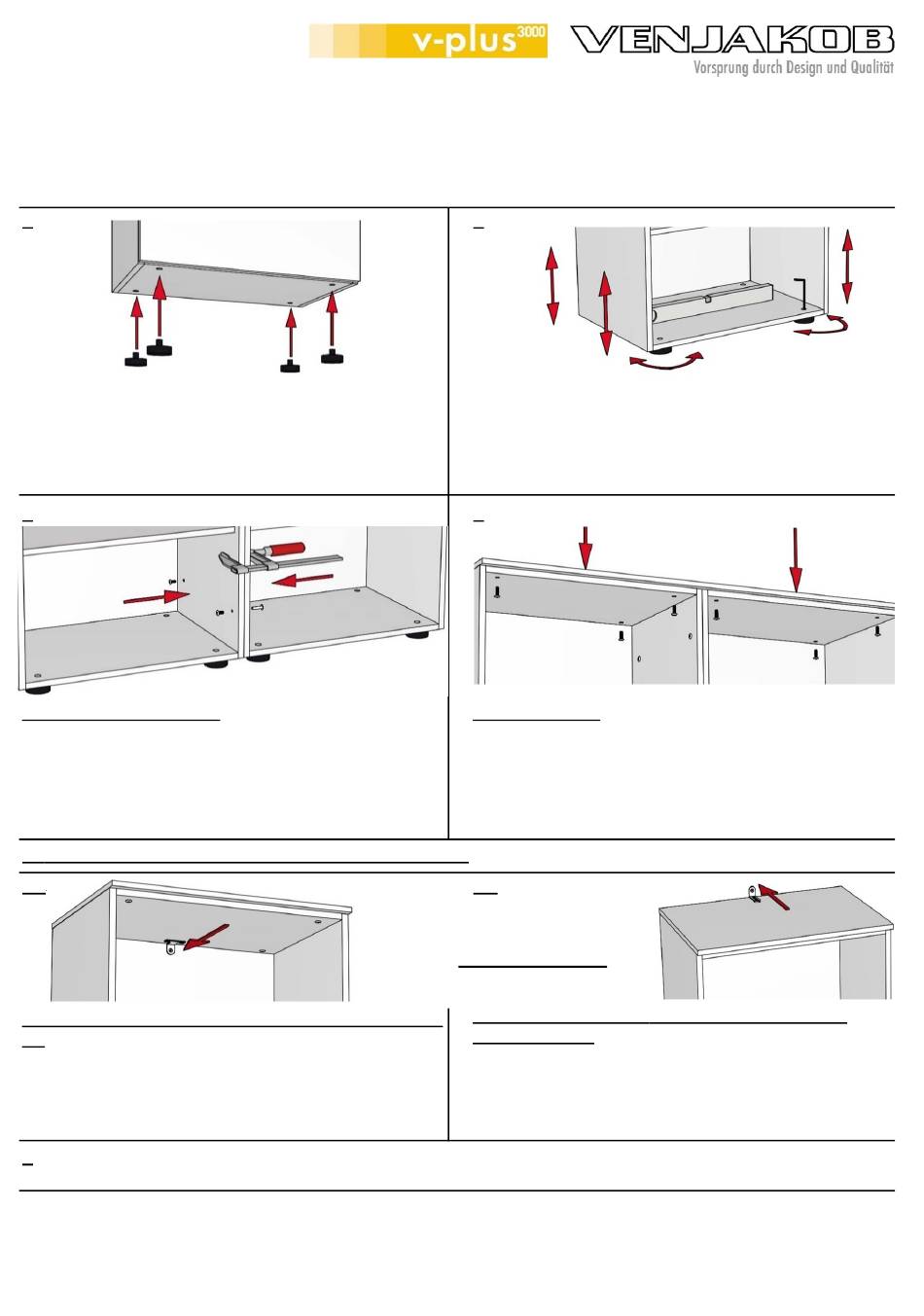

Assembly instructions:
Cabinet with feet
The fixture materials provided with this product (dowels and screws) are only suitable for fixing parts to concrete and/or solid
masonry. Please observe the maximum load that the wall‐mounted elements can carry. Ideally, the suitability of the wall should be enquired
about when the order is made and must be checked by specialist staff before the cabinet is assembled at the latest. If the condition of the wall is no
suitable (e.g. if it is a lightweight partition wall), then another type of fixture suitable for the load that is to be carried should be used. Check the
electrical input of any connection or device technology. Free‐hanging light fixtures require cable duct solutions that are either on or under plaster.
1
Unscrew the transport protection from beneath the base.
Place the adjustable feet / furniture gliders with the dowels
in the base.
3
Connection of carcass sides (two designs possible)
Fix the arcase with furniture screws M4 x 15 mm and thread
end sleeves 4 x 25 mm, or fix it with the wafer head screws
3,5 x 30 mm.
5A
Additional item lighting: => see lighting wiring diagram
6A
Inner anti-tip protection, furniture height approx. 75 - 143
cm
Drill through pre-assembled bracket and back panel with
small drill bit (mark the drilling position on the masonry).
Drill Ø 8 mm holes in the masonry. Anchor 8 x 40 mm
dowels. Fasten into place with 5 x 80 mm chipboard screws.
7
Attach handles wih screws M4 x 25 mm.
Reattach the fronts or re-mount open compartments, clip the decorative caps onto the door hinges!
2
Remove front parts (drawers, open compartments, doors).
Set the furniture gliders to the zero point by turning them in
a clockwise direction and then adjust them vertically and
horizontally. Make any other adjustments from the inside
with an Allen key or from the outside by hand. Cover any
holes with the cover caps.
4
Overlay assembly
Screw the top panel from the inside with furniture screws
M4 x 22 mm.
6B
Low sideboard with no anti-tip protection!
Either 6A - or 6B
Outer anti-tip protection, only with furniture height
approx. 211 cm!
Use "Wall fastening" set. Affix to the top of the overlay.
Service Hotline: Tel. +49 (0) 5209 592 0
Internet: www.venjakob‐moebel.de (additional assembly instructions)
55075‐01
