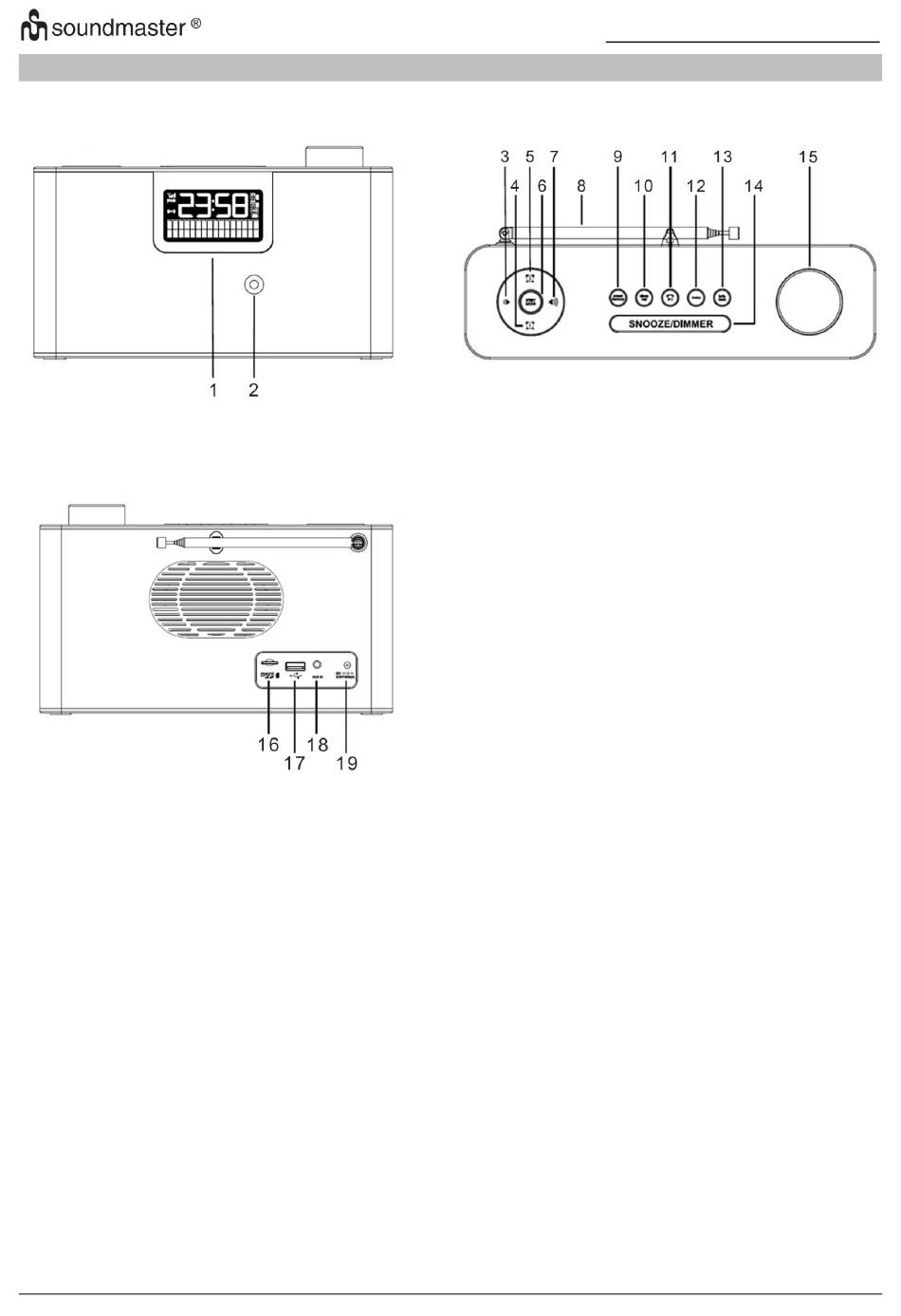

FRONT VIEW
BACK VIEW
1 LCD Display
2 Microphone
3 VOLUME - button
4 ALARM 1 button
5 ALARM 2 button
6 ST/BY / MODE button
7 VOLUME + button
8 DAB/FM antenna
9 PRESET MEMORY button
10 SLEEP / NAP button

LOCATION OF CONTROLS

TOP VIEW
1
DAB700 / English Instruction Manual
11 PLAY/PAUSE/MUTE/SCAN button
12 MENU button
13 INFO/BACK button
14 SNOOZE/DIMMER button
15 SELECT/ENTER knob
16 Micro SD card
17 USB jack
18 AUX IN jack
19 DC IN jack
