SCL-7 / SCL-6

IN-WALL SPEAKER - SURROUND PLACEMENT

Please consult your authorized JBL Synthesis dealer for selection of appropriate JBL Synthesis speakers for your home theater.

IN-WALL SPEAKEAR - 5.1-CHANNEL SYSTEMS PLACEMENT

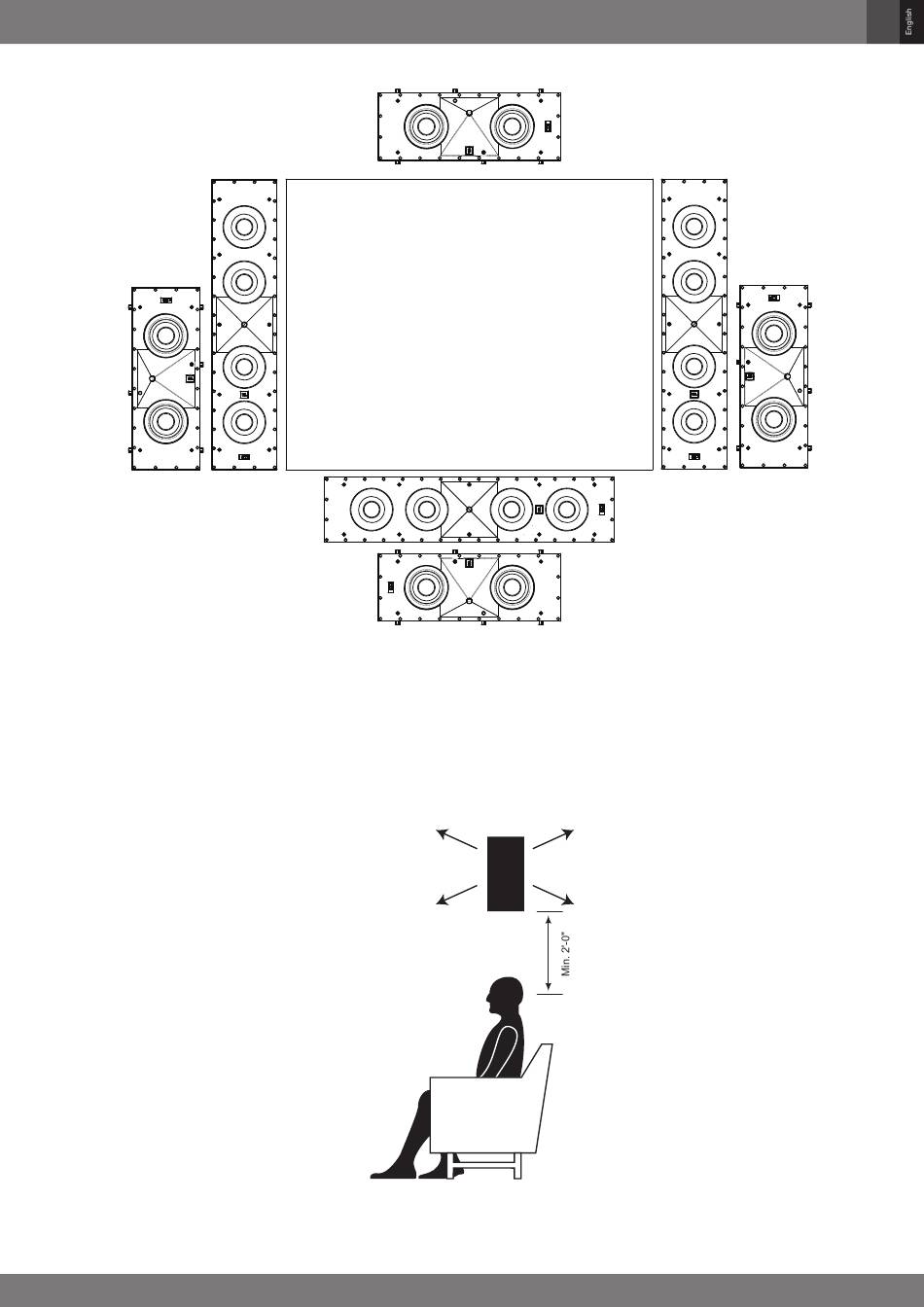

Surround speakers should be placed in the side walls no closer to the screen than the first row of viewing chairs. If there are two rows of chairs,
these speakers should be placed between the two rows. Surround speakers should be placed higher than the seating area, at least 2 feet above
seated ear level (Figure 6).
LCD TV
Figure 5
Figure 6
5
