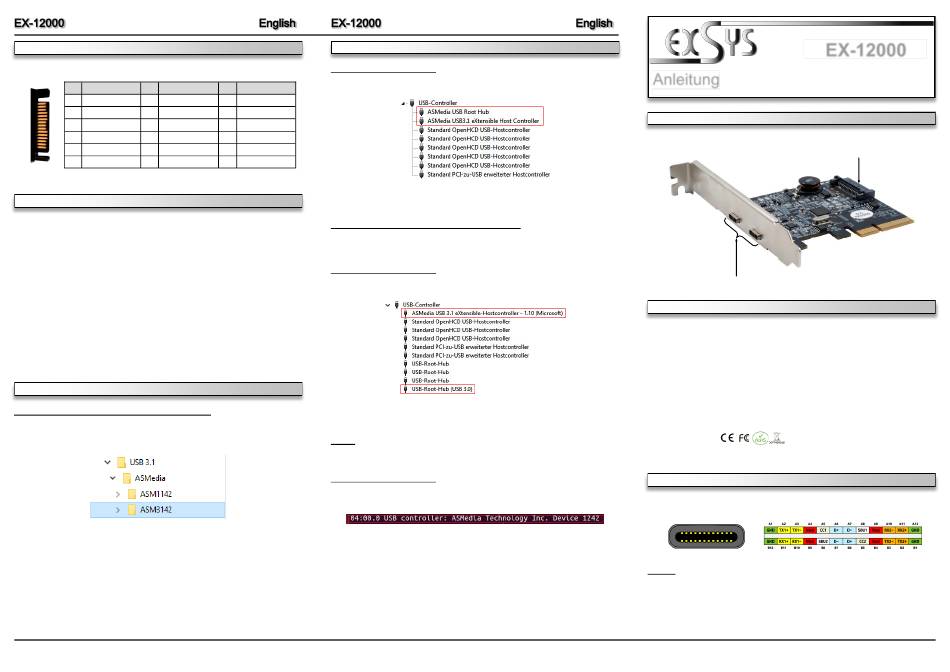

Exsys EX-12000 Anleitung

CONNECTORS
J1:
Pin Assignment Pin Assignment
1 3.3 Volt (Orange) 7 5 Volt (pre-charge)
2 3.3 Volt (Orange) 8 5 Volt (Red)
3 3.3 Volt (pre-charge) 9 5 Volt (Red)
4 Ground (Black) 10 Ground (Black)
5 Ground (Black) 11 Reserve
6 Ground (Black) 12 Ground (Black)
HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-12000. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. If necessary please install now the external power supply to the card (see at Connectors at
J1).
4. Locate an available PCI-Express expansion slot and insert the card. Make sure that the card
is plugged in correctly.
5. Then attach the card with a screw to the rear panel of the computer.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows XP/ Vista/ 7/ Server 2003/ 2008/ 2012
After starting Windows is recognizes a new „USB (Universal Serial Bus)-Controller". Start the
„setup.exe" file which is in the „ASM3142" folder (see picture):
Follow the installation instructions and complete the installation.
Windows will now install automatically you right driver for your particular operating system. After
the installation the operating system detects the card and automatically install them.
5
DRIVER INSTALLATION
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry's:
Pin Assignment
13 12 Volt (pre-charge)
14 12 Volt (Yellow)
15 12 Volt (Yellow)
If you see this or a similar information the device is installed correctly.
Windows 8.x/ 10/ Server 2012 R2/ 2016/ 2019
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry's:
If you see this or a similar information the device is installed correctly.
Linux
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
CHECK INSTALLED DRIVER
Now you should see the following new entry:
If you see this or a similar information the device is installed correctly.
AUFBAU
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-12000 ist eine USB 3.2 (Gen2) PCI-Express Karte. Sie ist mit 2 externen Ports ausge-
stattet, die jeweils 3A Strom zu Verfügung stellen. Die EX-12000 unterstützt die volle Leistung
von 3A an beiden externen Ports ohne das Sie zusätzlichen Strom vom PC-Netzteil benötigen.
Sie unterstützt alle PCI-Express Slots von x4 bis x16. Der serielle PCI-Express Bus unterstützt
optimal die Leistung des schnellen ASMedia Chipsatz. Die EX-12000 gewährleistet so eine
sichere Datenübertragung und exzellente Performance von bis zu 10Gbit pro Sekunde! Die EX-
12000 unterstützt alle USB Anschlüsse von 1.1 bis 3.2.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
ANSCHLÜSSE
P1 & P2:
Hinweis!
Durch die doppel Belegung der Pin's, kann der USB Typ-C Stecker beidseitig in die
Buchse gesteckt werden.
6
EX-12000
Anleitung
Vers. 1.0 / 05.05.21
J1: SATA 15 pin Power
Anschluss vom PC-Netzteil
P1 & P2: 2x USB 3.2 (Gen2) C-Buchse
PCI-Express x4 bis x16
Windows XP/ Vista/ 7/ 8.x/ 10/ Server 20xx/ Linux
2x USB 3.2 (Gen2) C-Buchse, 1x SATA 15 Pin
EX-12000, Low Profile Bügel, Treiber CD, Anleitung
1
