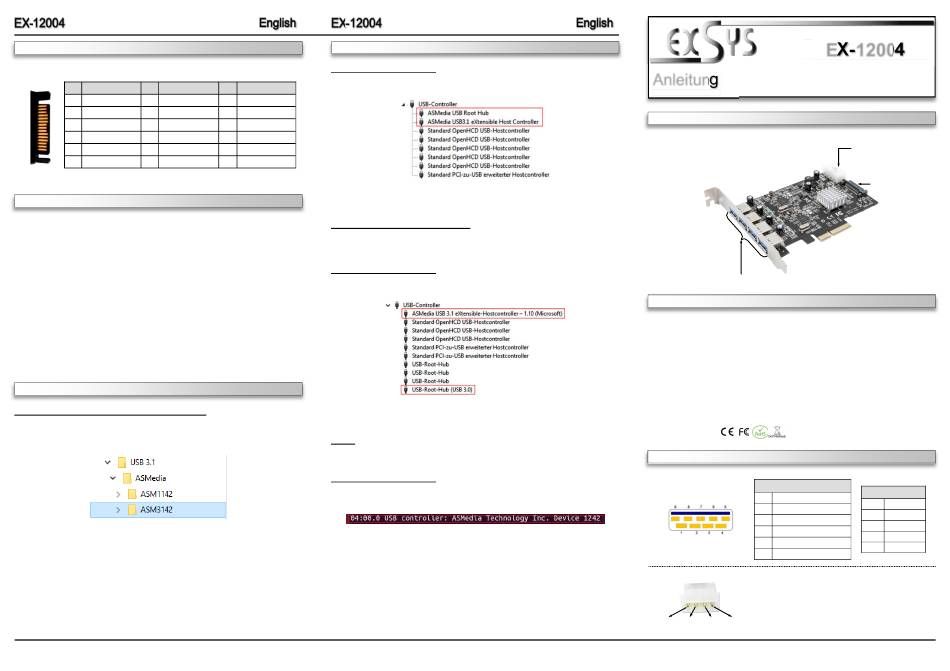

Exsys EX-12004 Anleitung

CONNECTORS
J1:
Pin Assignment Pin Assignment
1 3.3 Volt (Orange) 7 5 Volt (pre-charge)
2 3.3 Volt (Orange) 8 5 Volt (Red)
3 3.3 Volt (pre-charge) 9 5 Volt (Red)
4 Ground (Black) 10 Ground (Black)
5 Ground (Black) 11 Reserve
6 Ground (Black) 12 Ground (Black)
HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-12004. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. If necessary please install now the external power supply to the card (see at Connectors at
J1 or J2).
4. Locate an available PCI-Express expansion slot and insert the card. Make sure that the card
is plugged in correctly.
5. Then attach the card with a screw to the rear panel of the computer.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows XP/ Vista/ 7/ Server 2003 & 2008 R2
After starting Windows is recognizes a new „USB (Universal Serial Bus)-Controller". Start the
„setup.exe" file which is in the „ASM3142" folder (see picture):
Follow the installation instructions and complete the installation.
Windows will now install automatically you right driver for your particular operating system. After
the installation the operating system detects the card and automatically install them.
5
DRIVER INSTALLATION
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry's:
Pin Assignment
13 12 Volt (pre-charge)
14 12 Volt (Yellow)
15 12 Volt (Yellow)
If you see this or a similar information the device is installed correctly.
Windows 8.x/ 10/ Server 2012 R2
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry's:
If you see this or a similar information the device is installed correctly.
Linux
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
CHECK INSTALLED DRIVER
Now you should see the following new entry:
If you see this or a similar information the device is installed correctly.
AUFBAU
BESCHREIBUNG & TECHNISCHE DATEN

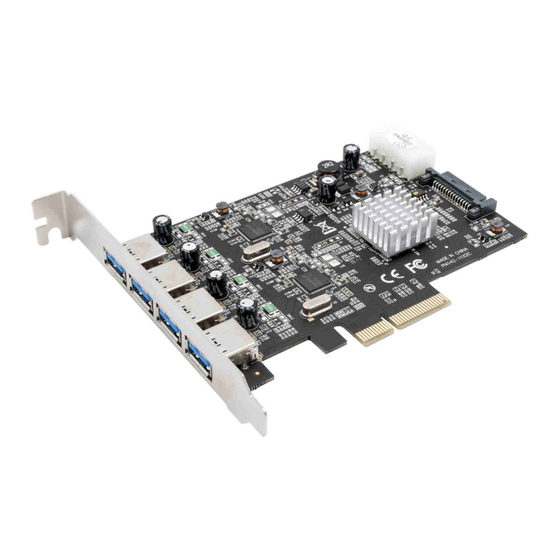

Die EX-12004 ist eine USB 3.1 (Gen2) PCI-Express Karte. Sie ist mit 4 externen Ports ausge-
stattet, die jeweils 900mA Strom zu Verfügung stellen. Die EX-12004 unterstützt die volle
Leistung von 900mA an allen vier externen Ports ohne das Sie zusätzlichen Strom vom PC-
Netzteil benötigen. Sie unterstützt alle PCI-Express Slots von x4 bis x16. Der serielle PCI-
Express Bus unterstützt optimal die Leistung des schnellen ASMedia Chipsatz. Die EX-12004
gewährleistet so eine sichere Datenübertragung und exzellente Performance von bis zu 10Gbit
pro Sekunde! Die EX-12004 unterstützt alle USB Anschlüsse von 1.1 bis 3.1.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
ANSCHLÜSSE
P1-P4:
J2:
6
EX-12004
Anleitung
Vers. 1.0 / 04.10.18
P1-P4: 4x externe USB 3.1 (Gen2) A-Buchse
PCI-Express x4 bis x16
Windows XP/ Vista/ 7/ 8.x/ 10/ Server 2003 & 2008R2 & 2012R2/ Linux
4x USB 3.1 (Gen2) A-Buchse extern, 1x 4 pol Molex, 1x SATA 15 Pin
EX-12004, Treiber CD, Anleitung
USB 3.1 Pin's
Pin Signal
5 SSTX+
6 SSTX-
7 GND
8 SSRX+
9 SSRX-
Die EX-12004 benötigt nicht zwingend Strom vom PC
Netzteil! Zur Entlastung des PCI-Express Slots wird
jedoch empfohlen J1 oder J2 anzuschließen!
Bitte auf die richtige Polarität achten!
Achtung! Stecker nie bei eingeschaltetem PC ein
1 +12V 2 GND 3 GND 4 +5V oder ausstecken!
1
J2:
4 pol Molex Power
Anschluss vom PC-Netzteil
J1: SATA 15 pin
Power Anschluss
vom PC-Netzteil
USB 2.0 Pin's
Pin Signal
1 VCC
2 DATA-
3 DATA+
4 GND
