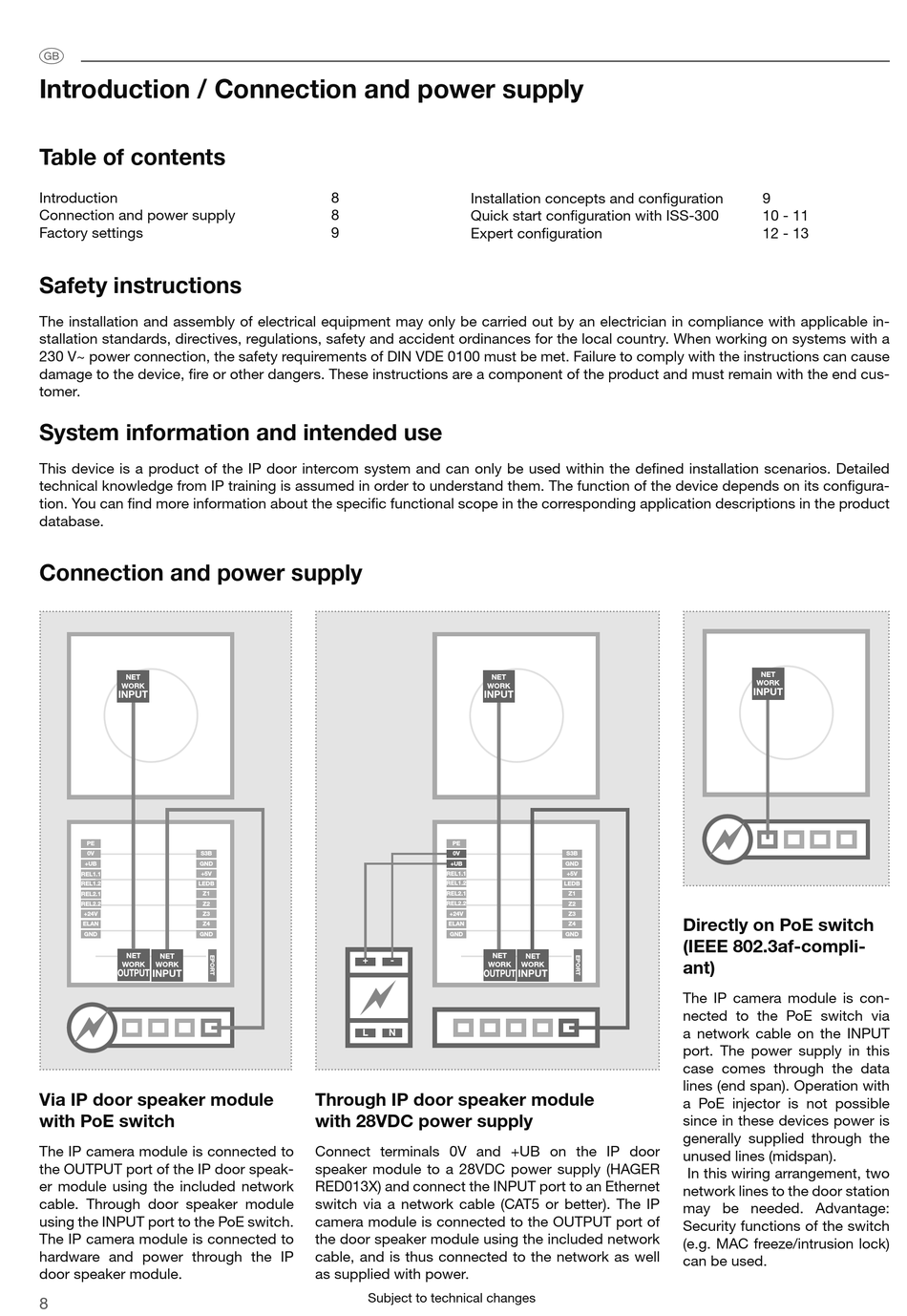

Introduction / Connection and power supply
Table of contents
Introduction
Connection and power supply
Factory settings

Safety instructions

The installation and assembly of electrical equipment may only be carried out by an electrician in compliance with applicable in-
stallation standards, directives, regulations, safety and accident ordinances for the local country. When working on systems with a
230 V~ power connection, the safety requirements of DIN VDE 0100 must be met. Failure to comply with the instructions can cause
damage to the device, fire or other dangers. These instructions are a component of the product and must remain with the end cus-
tomer.
System information and intended use
This device is a product of the IP door intercom system and can only be used within the defined installation scenarios. Detailed
technical knowledge from IP training is assumed in order to understand them. The function of the device depends on its configura-
tion. You can find more information about the specific functional scope in the corresponding application descriptions in the product
database.
Connection and power supply
NET
WORK
INPUT
PE
0V S3B
+UB GND
REL1.1 +5V
REL1.2 LEDB
REL2.1 Z1
REL2.2 Z2
+24V Z3
ELAN Z4
GND GND
NET NET
WORK WORK
OUTPUT INPUT

Via IP door speaker module
with PoE switch
The IP camera module is connected to
the OUTPUT port of the IP door speak-
er module using the included network
cable. Through door speaker module
using the INPUT port to the PoE switch.
The IP camera module is connected to
hardware and power through the IP
door speaker module.
8
8 Installation concepts and configuration
8
Quick start configuration with ISS-300
9
Expert configuration
INPUT
PE
0V
+UB
REL1.1
REL1.2
REL2.1
REL2.2
+24V
ELAN
GND
+ -
OUTPUT

L N
Through IP door speaker module
with 28VDC power supply
Connect terminals 0V and +UB on the IP door
speaker module to a 28VDC power supply (HAGER
RED013X) and connect the INPUT port to an Ethernet
switch via a network cable (CAT5 or better). The IP
camera module is connected to the OUTPUT port of
the door speaker module using the included network
cable, and is thus connected to the network as well
as supplied with power.
Subject to technical changes
NET
WORK
S3B
GND
+5V
LEDB
Z1
Z2
Z3
Z4
GND
NET NET
WORK WORK
INPUT
9
10 - 11
12 - 13
NET
WORK
INPUT

Directly on PoE switch
(IEEE 802.3af-compli-
ant)
The IP camera module is con-
nected to the PoE switch via
a network cable on the INPUT
port. The power supply in this
case comes through the data
lines (end span). Operation with
a PoE injector is not possible
since in these devices power is
generally supplied through the
unused lines (midspan).
In this wiring arrangement, two
network lines to the door station
may be needed. Advantage:
Security functions of the switch
(e.g. MAC freeze/intrusion lock)
can be used.
