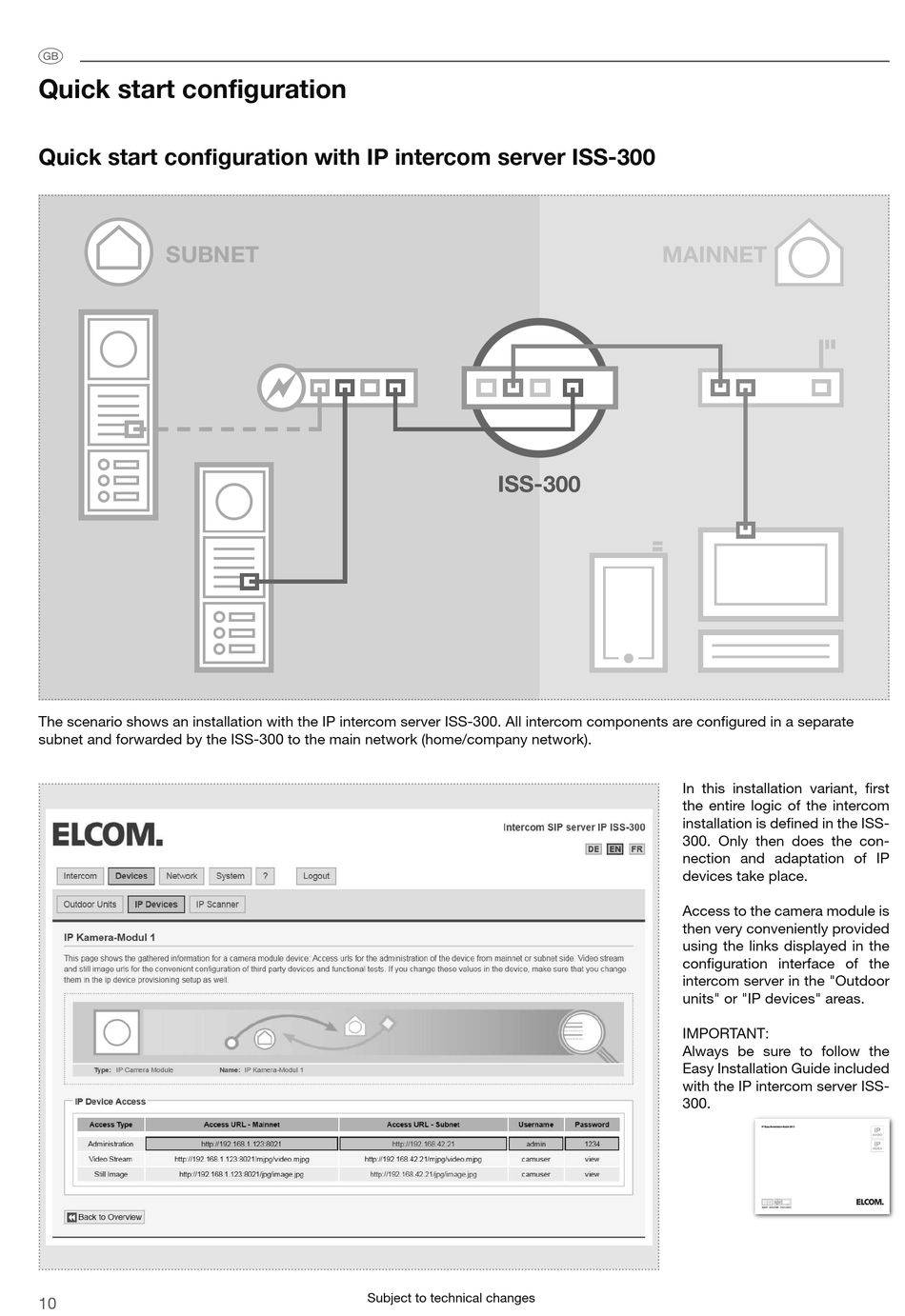

Quick start configuration
Quick start configuration with IP intercom server ISS-300
SUBNET
The scenario shows an installation with the IP intercom server ISS-300. All intercom components are configured in a separate
subnet and forwarded by the ISS-300 to the main network (home/company network).
10

Subject to technical changes
MAINNET
ISS-300
In this installation variant, first
the entire logic of the intercom
installation is defined in the ISS-
300. Only then does the con-
nection and adaptation of IP
devices take place.
Access to the camera module is
then very conveniently provided
using the links displayed in the
configuration interface of the
intercom server in the "Outdoor
units" or "IP devices" areas.
IMPORTANT:
Always be sure to follow the
Easy Installation Guide included
with the IP intercom server ISS-
300.
