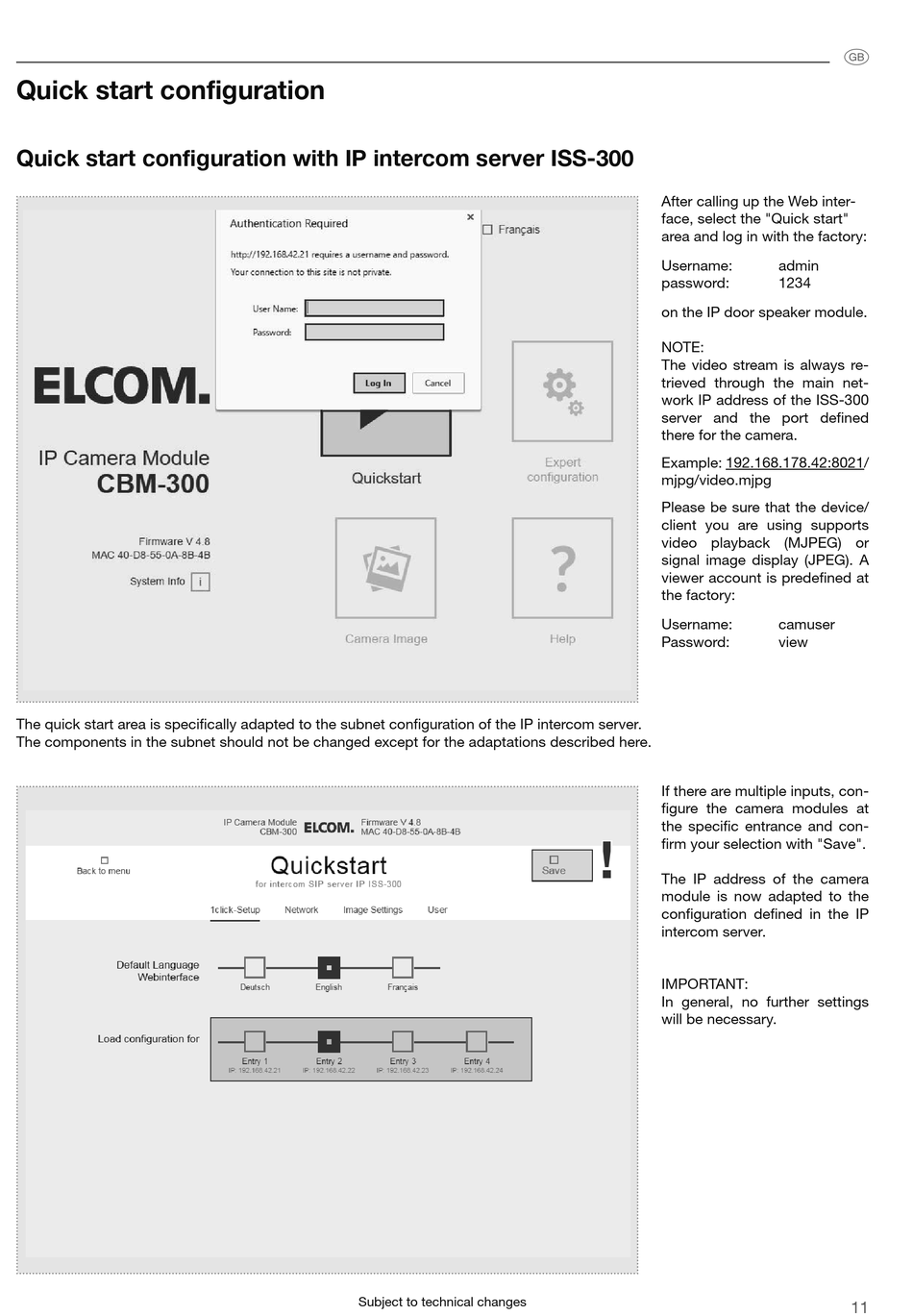

Quick start configuration
Quick start configuration with IP intercom server ISS-300
The quick start area is specifically adapted to the subnet configuration of the IP intercom server.
The components in the subnet should not be changed except for the adaptations described here.
Subject to technical changes
After calling up the Web inter-
face, select the "Quick start"
area and log in with the factory:
Username:
password:
on the IP door speaker module.
NOTE:
The video stream is always re-
trieved through the main net-
work IP address of the ISS-300
server and the port defined
there for the camera.
Example: 192.168.178.42:8021/
mjpg/video.mjpg
Please be sure that the device/
client you are using supports
video playback (MJPEG) or
signal image display (JPEG). A
viewer account is predefined at
the factory:
Username:
Password:
If there are multiple inputs, con-
figure the camera modules at
the specific entrance and con-
!
firm your selection with "Save".
The IP address of the camera
module is now adapted to the
configuration defined in the IP
intercom server.
IMPORTANT:
In general, no further settings
will be necessary.
z
admin
1234
camuser
view
