Button
Reset

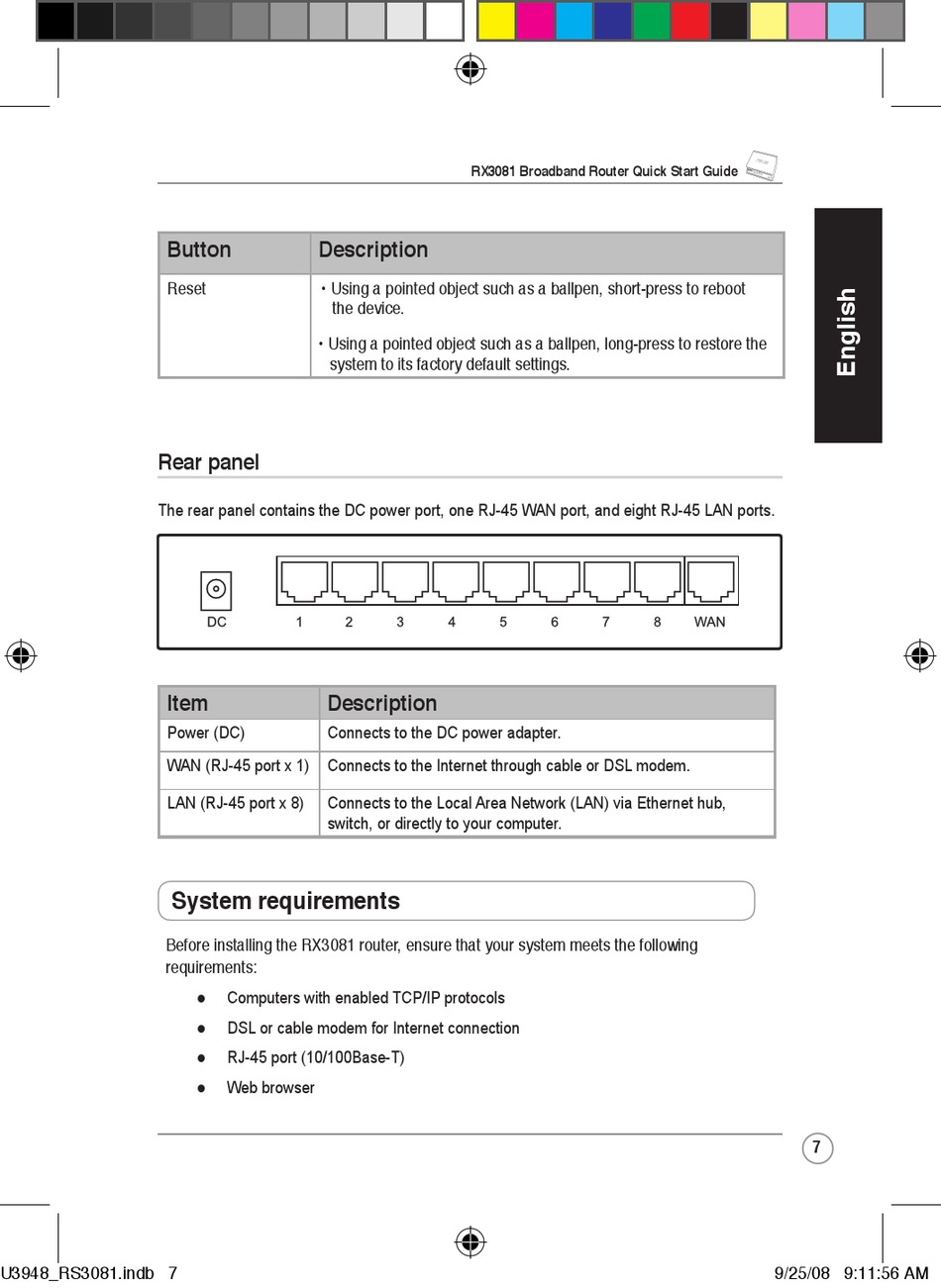

Rear panel

The rear panel contains the DC power port, one RJ-45 WAN port, and eight RJ-45 LAN ports.
Item
Power (DC)
WAN (RJ-45 port x 1)
LAN (RJ-45 port x 8)

System requirements

Before installing the RX3081 router, ensure that your system meets the following
requirements:
U3948_RS3081.indb 7
Description
• Using a pointed object such as a ballpen, short-press to reboot
the device.
• Using a pointed object such as a ballpen, long-press to restore the
system to its factory default settings.
Description
Connects to the DC power adapter.
Connects to the Internet through cable or DSL modem.
Connects to the Local Area Network (LAN) via Ethernet hub,
switch, or directly to your computer.
Computers with enabled TCP/IP protocols
l
DSL or cable modem for Internet connection
l
RJ-45 port (10/100Base-T)
l
Web browser
l
RX3081 Broadband Router Quick Start Guide
