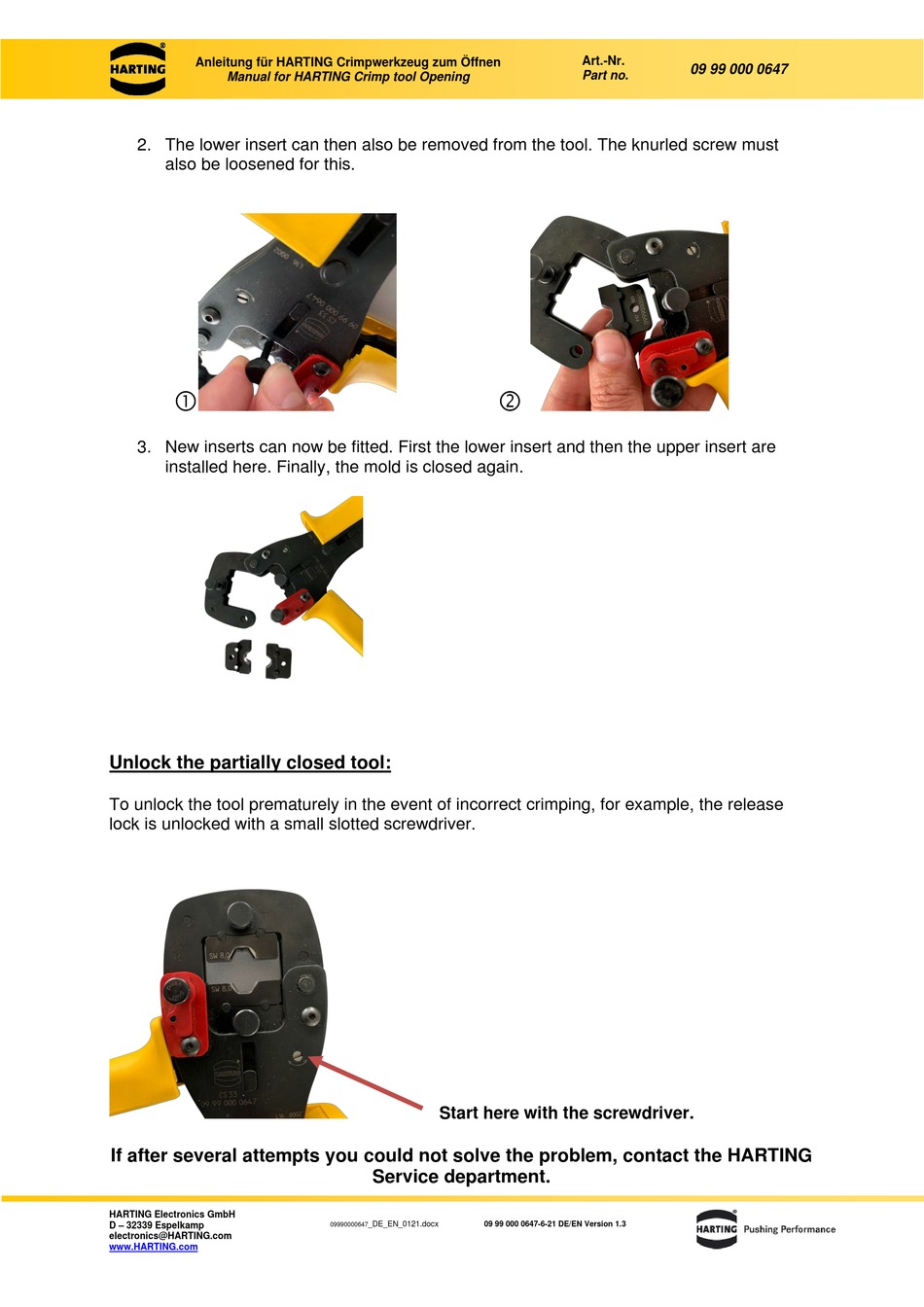

HARTING 09 99 000 0647 Anleitung Seite 7

Anleitung für HARTING Crimpwerkzeug zum Öffnen
Manual for HARTING Crimp tool Opening
2. The lower insert can then also be removed from the tool. The knurled screw must
also be loosened for this.

3. New inserts can now be fitted. First the lower insert and then the upper insert are
installed here. Finally, the mold is closed again.
Unlock the partially closed tool:
To unlock the tool prematurely in the event of incorrect crimping, for example, the release
lock is unlocked with a small slotted screwdriver.
If after several attempts you could not solve the problem, contact the HARTING
HARTING Electronics GmbH
D – 32339 Espelkamp
electronics@HARTING.com
www.HARTING.com

Start here with the screwdriver.
Service department.
_DE_EN_0121.docx 09 99 000 0647-6-21 DE/EN Version 1.3
09990000647
Art.-Nr.
09 99 000 0647
Part no.
