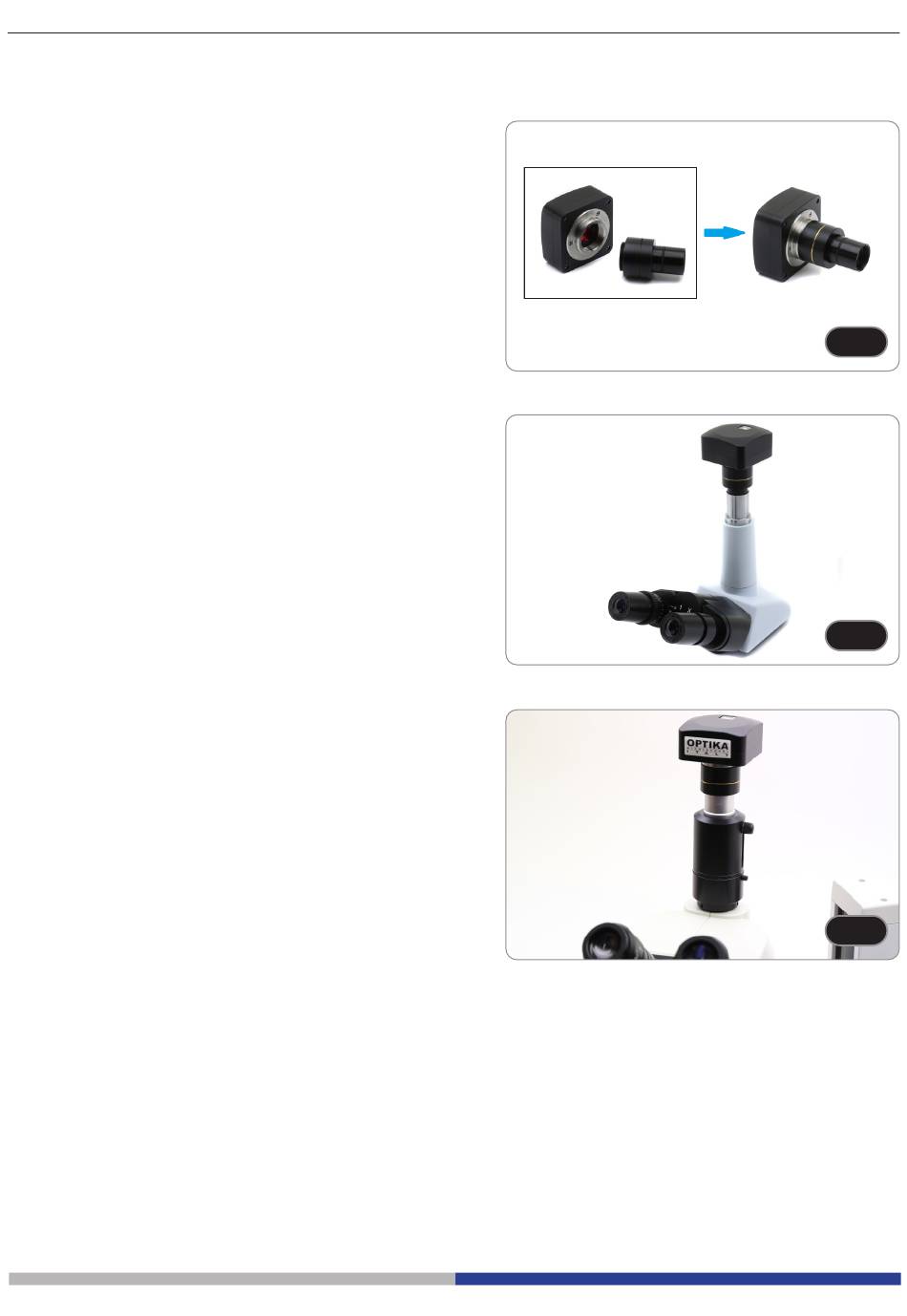

7.3.2 Connection to trinocular port using projection lens

1. Remove the dust cover from camera and from projec-
tion lens.
2. Screw the projection lens to the camera's thread. (Fig.
4)
• Installing on biological microscopes
3. Insert the final part of the projection lens into the empty
hole of the photo tube. (Fig. 5)
• Installing on stereo microscopes
4. Insert the final part of the projection lens into the empty
hole of the photo tube. (Fig. 6)
Page 7
F ig. 4 F ig. 4
F ig. 5 F ig. 5
F ig. 6 F ig. 6
