6.

Unpacking

The device is housed in a moulded Styrofoam container. Remove the tape from the edge of the container and lift
the top half of the container. Take some care to avoid that the optical items fall out and get damaged.
Do not touch with bare hands optical surfaces such as lenses, filters or glasses. Traces of grease or
other residuals may deteriorate the final image quality and corrode the optics surface in a short time.
7.

Assembling

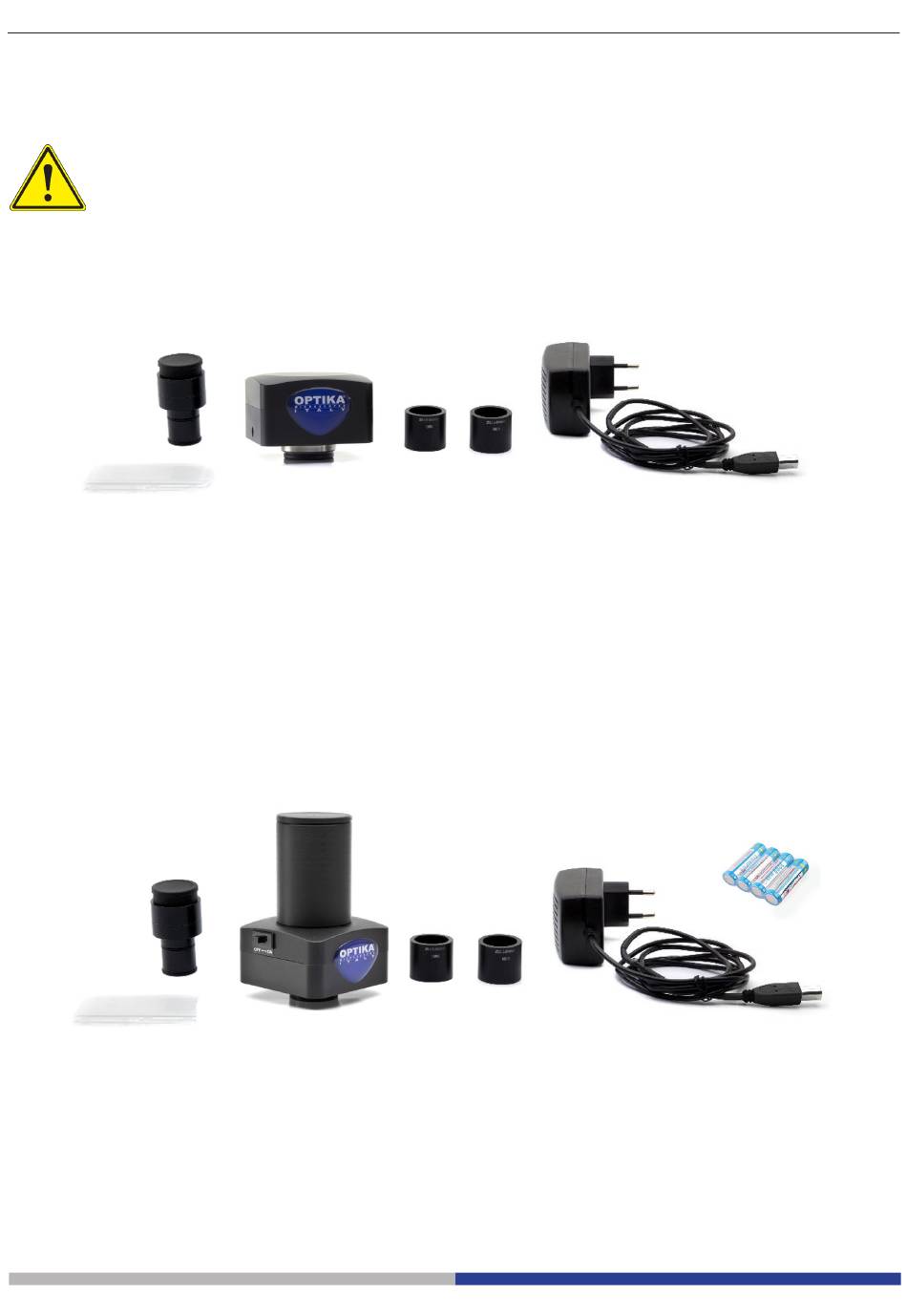

Once opened the box, the camera components are the following:
7.1 C-WF
②
⑤
① Camera
② Projection lens
③ Reduction ring 30.5 mm
7.2

C-WFR

②
⑤
① Camera
② Projection lens
③ Reduction ring 30.5 mm
④ Reduction ring 30 mm
①
④
①
③
④ Reduction ring 30 mm
⑤ Micrometric slide
⑥ Power supply with USB2.0 socket
④
③
⑤ Micrometric slide
⑥ Power supply with USB2.0 socket
⑦ Rechargeable batteries (4 pcs)
Page 5
⑥
⑦
⑥
