General Wiring Diagram - Meta System DEFCOM 3.1B Einbauanleitung

PAIRING THE RADIO
REMOTE CONTROLS
11
ANTENNA
(do not cut and do not tape
together with rest of cable
harness)
NEGATIVE
SUPPLY (-)
LED
HORN RELAY
NEGATIVE
COMMAND
IMMOBILISER
Fig.3
DEFCOM 3.1B Installation Manual

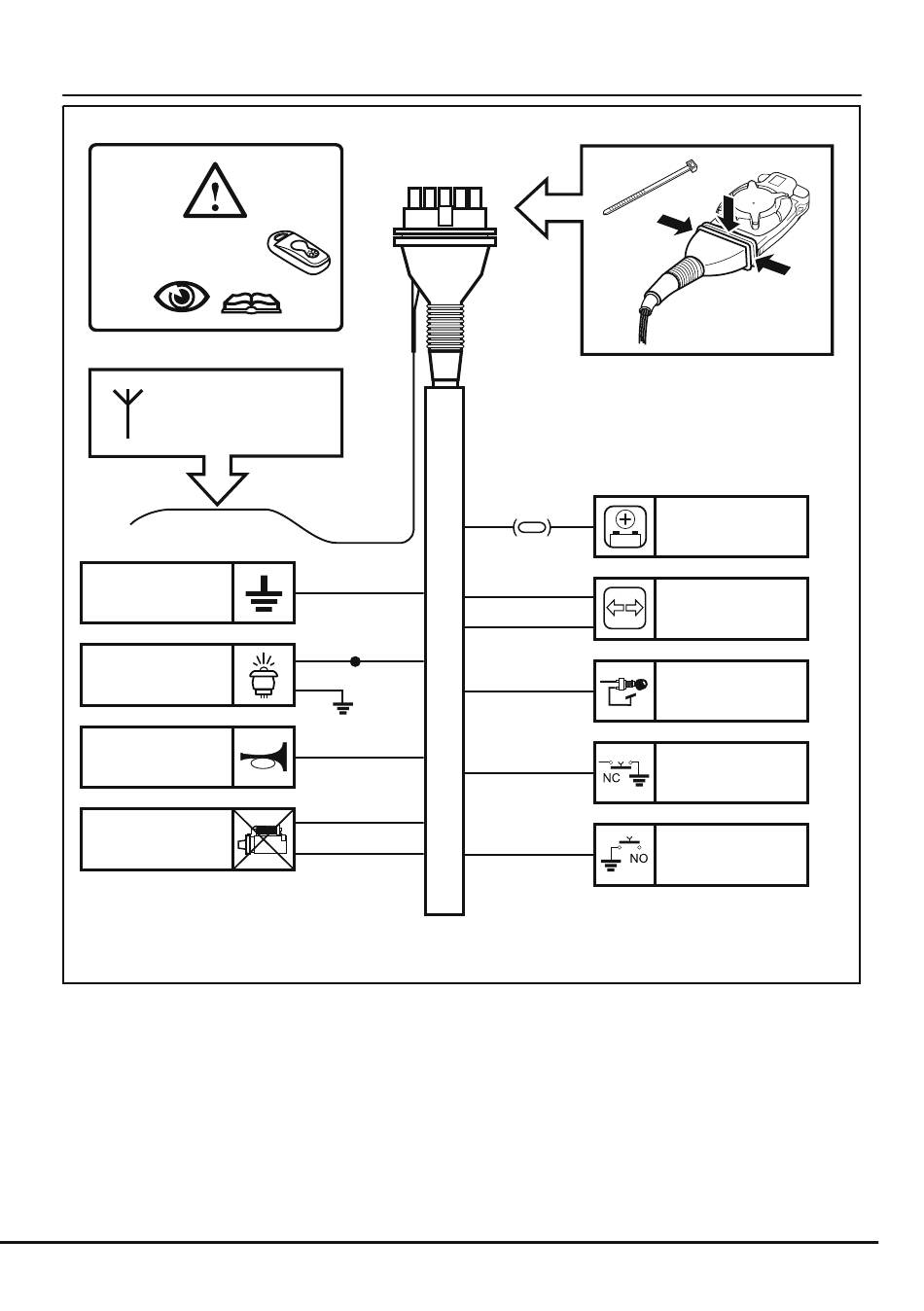

3. GENERAL WIRING DIAGRAM

BLACK
RED WHITE
BLACK
BROWN
DARK BLUE (C)
GREY (NO)
Mount
15A Fuse
RED
LIGHT BLUE
LIGHT BLUE
ORANGE
YELLOW/GREEN
VIOLET
POSITIVE
SUPPLY
(+12V)
DIRECTION
INDICATORS
IGNITION SWITCH
POSITIVE SUPPLY
(+15)
PROTECTION AGAINST
REMOVAL OF EARTH
CONNECTION (CONNECT
TO EARTH IF NOT USED)
PROTECTION FOR
EARTH CONTACT
9
