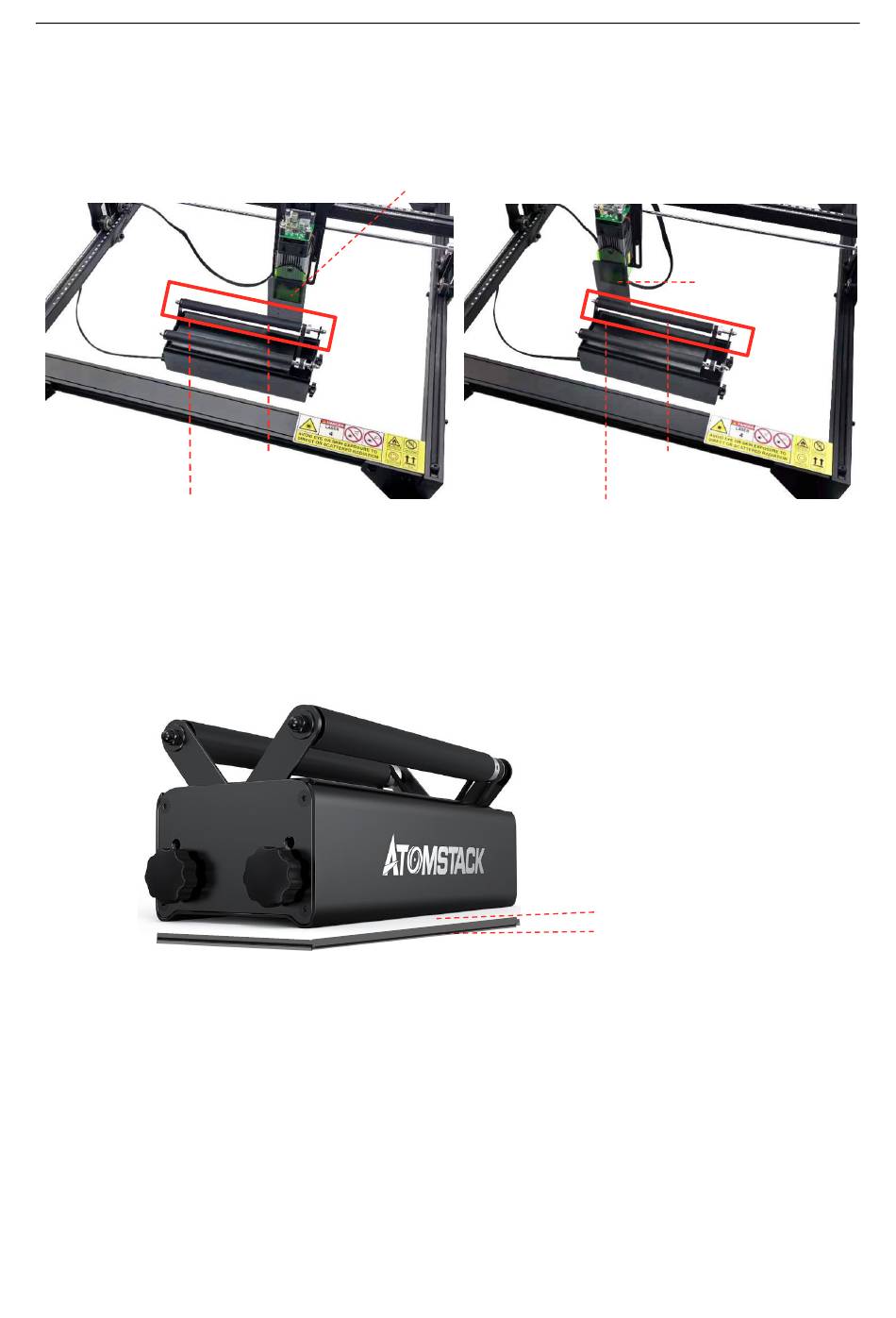

The roller of R3 Rotary need to keep parallel with the X axis of engraver ， and the rotary
roller must be at the same horizontal surface with the desk, can not have any object under the
roller.
Adjust roller position to keep parallel
with connecting plate( right )
4.19 Right side of roller
4.21 Make sure no object under the roller
Focus plank
Roller
Adjust roller position to keep parallel
with connecting plate ( left )
4.20 Left side of the roller
R3 Rotary Roller must be at
the same horizontal
surface
support@atomstack3d.com
Focus plank
Roller
