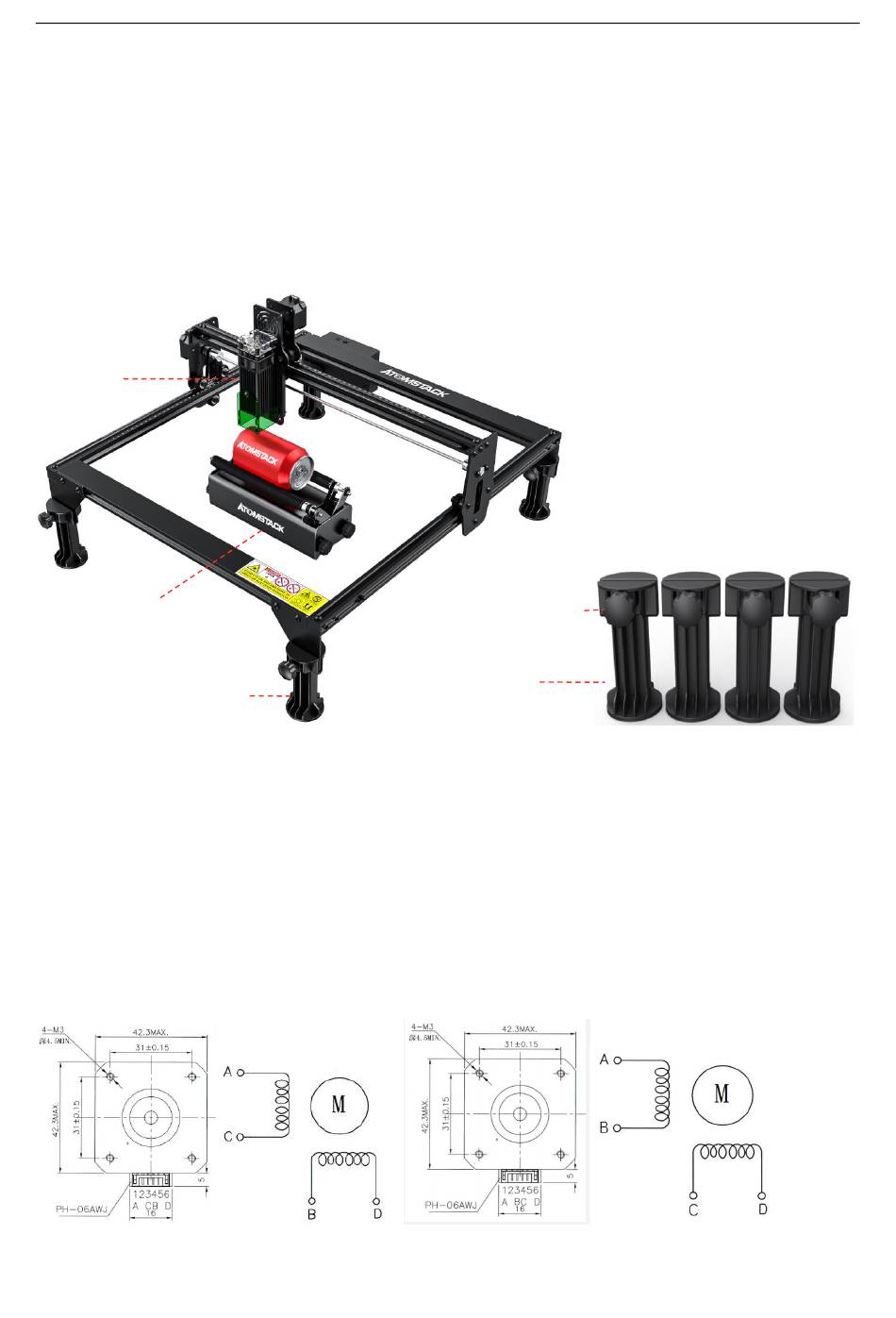

5. R3 Rotary Installation
1. When you want to engrave or cutting wide surface object or coordinate with the rotary
roller to engrave on cylinder, you need the set the heighten accessory. The supported
bracket of laser engraver is thin-shaping, could be fasten by the Plum blossom handle of the
heighten accessory so that heighten the laser engraver to engrave or cutting higher object.
Engraver
R3 Rotary Roller
Heightening Column
4.10 R3 Rotary Roller and Heighten Accessory
2.
Atomstack set up two connection wire for the R3 rotary roller and engraver( black plug and
white plug ), pay attention that the wire order of them is different，need to be careful for the
connectivity.
2.1 The 4PIN white plug wire is for the connection with Atomstack, AtomStack engraver.
2.2 The 4PIN black plug wire is for the connection with Neje, Ortur engraver.
2.3 These 4PIN wire (white and black plug) is the our main connection wire，for the other
brand engraver, you may try one of them to connect. If it fails to connect, please change
the order of wire, and the change processing is in chart 4.16-4.17
4.16 Connection order of white plug wire
blossom handle
Plum
Accessory
Heighten
4.17 Connection order of black plug wire
support@atomstack3d.com
4.12 Heighten Accessory
