Connection
socket

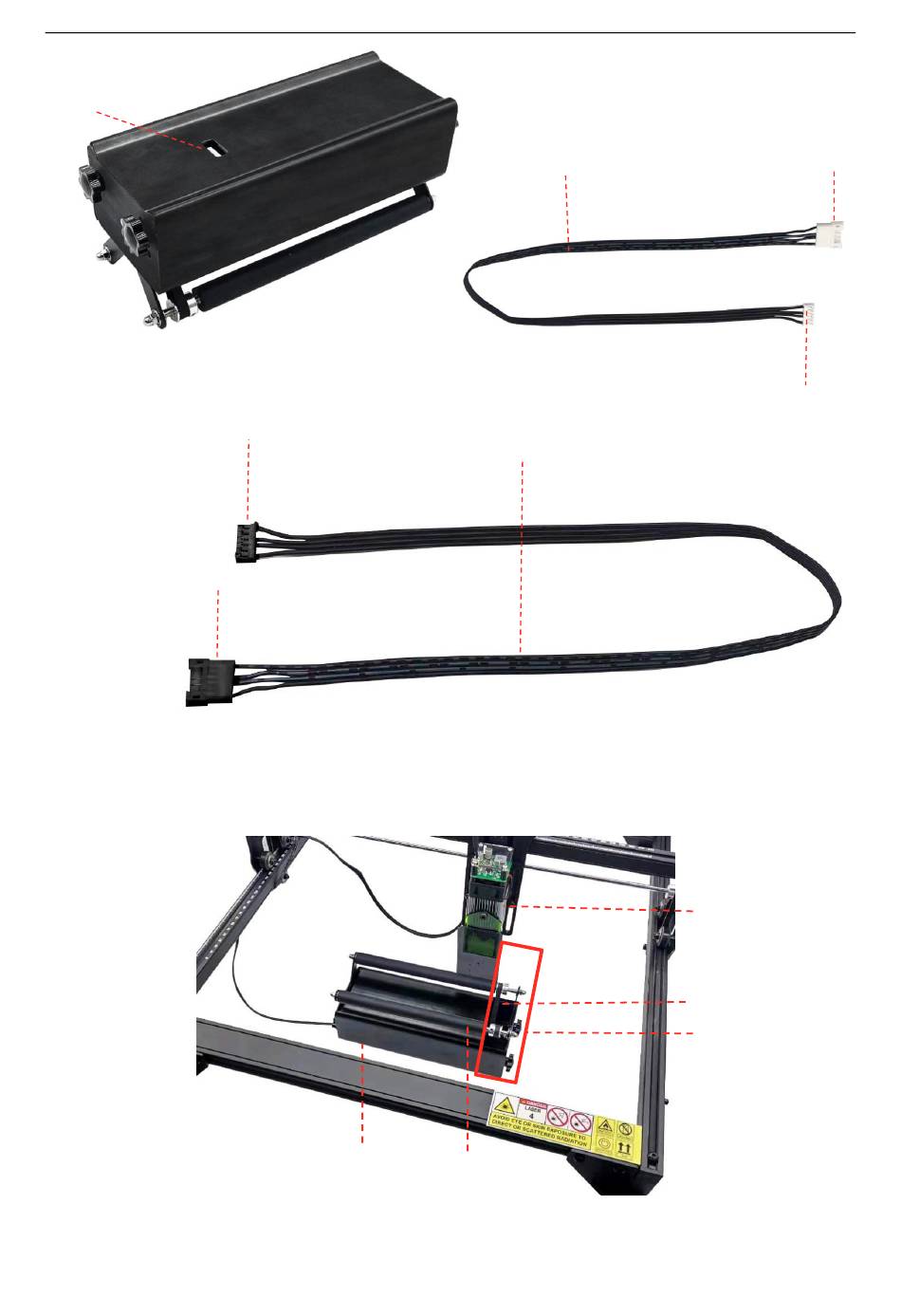

4.13 Connection plug on rotary roller
Plug for roller
Plug for motor
3. The synchronized belt must be set out of the processing area, make sure will not be
destroyed by the laser during the operation.
4.15 black plug wire
R3 Rotary Roller
4.18 Rotary roller and synchronized belt
4PIN white plug wire
4.14 White plug wire
4PIN black plug wire
Roller
support@atomstack3d.com
Plug for motor
Plug for roller
Laser Head
Synchronized belt
Out of processing area
